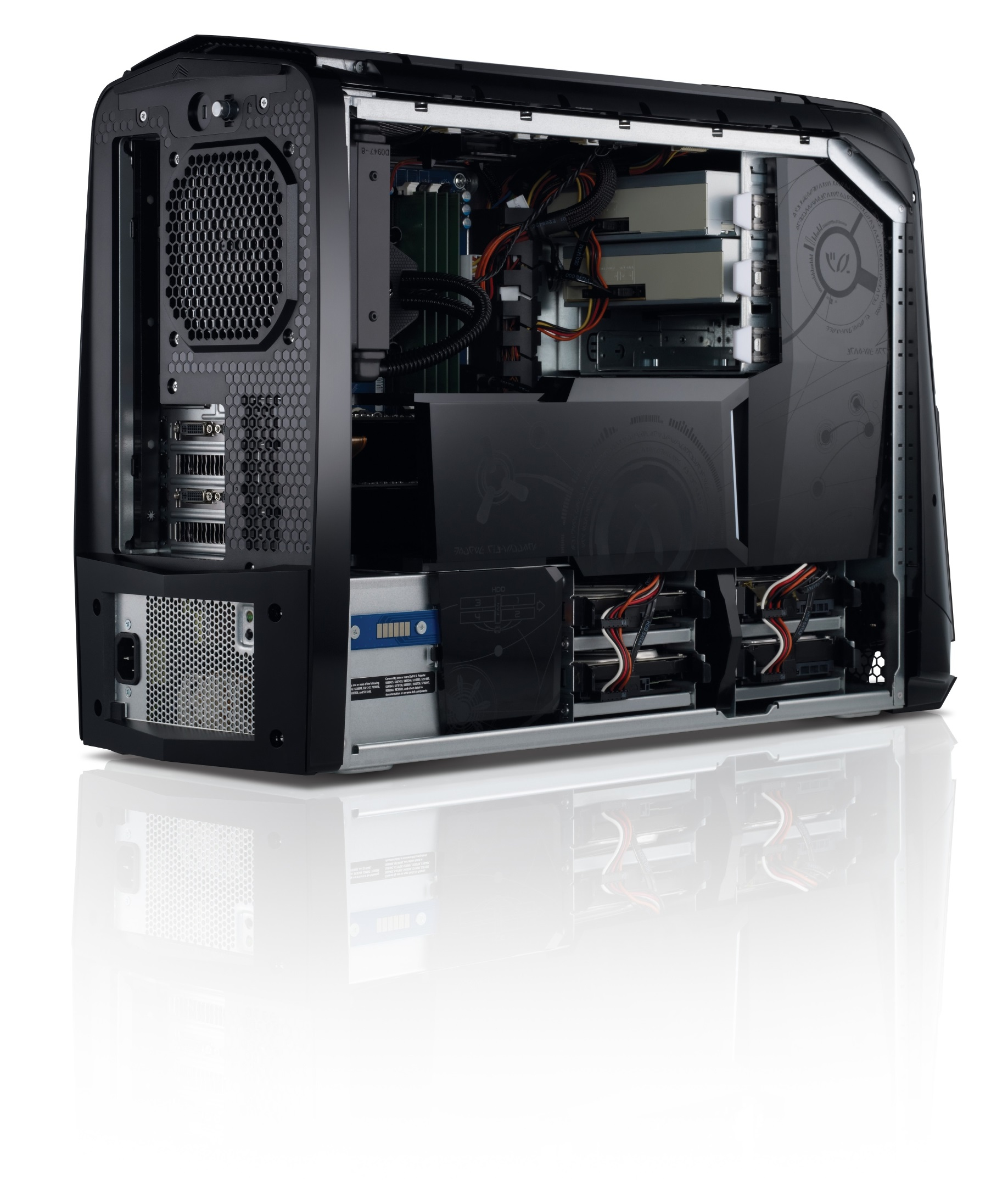

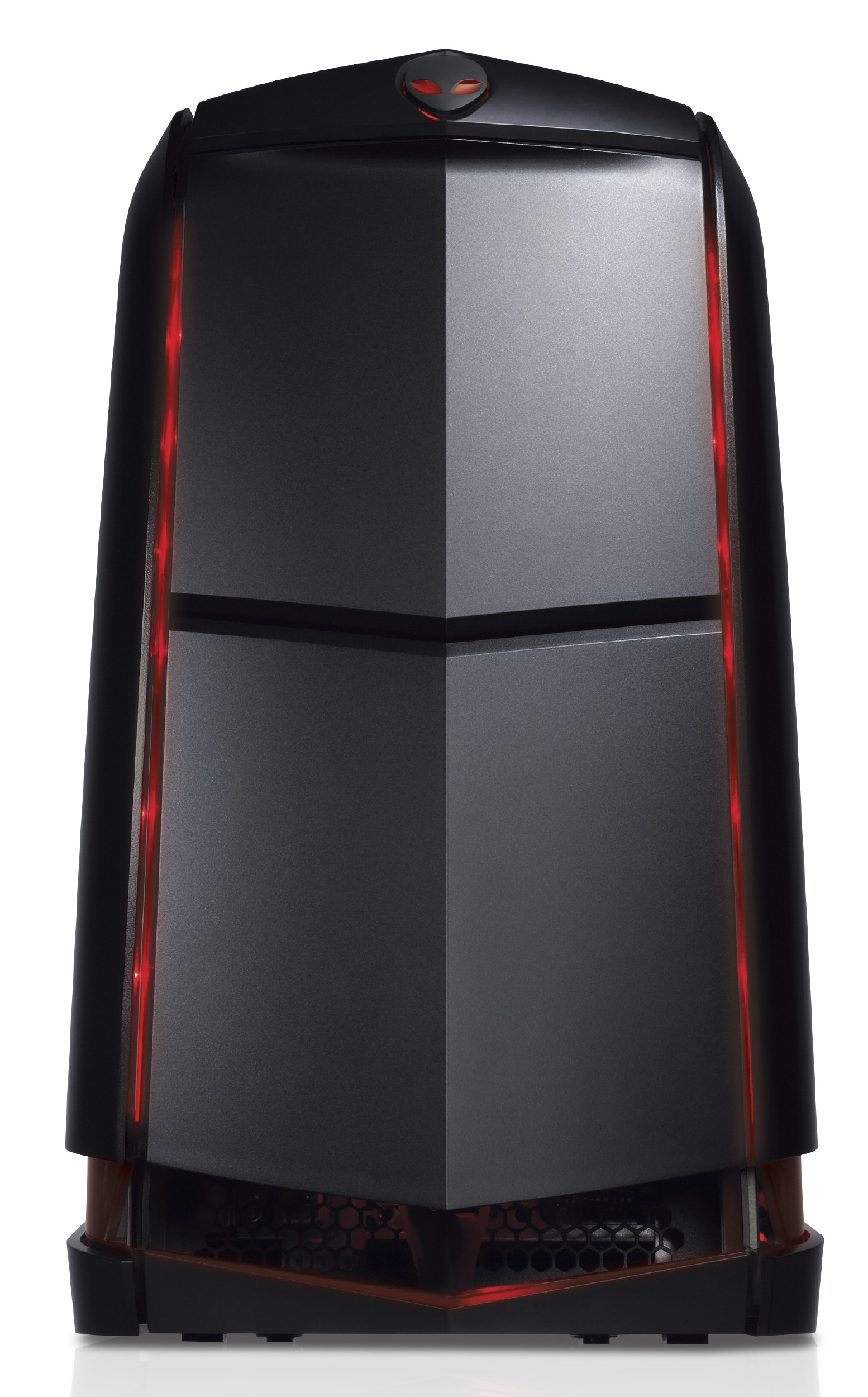

Alienware Aurora R4

Model Aurora R4Part no. W210179AUEAN 884116116325

136 specifications

ProcessorIntel® Core™ i7 X-series
Memory8 GB
Storage1 TB
GraphicsNVIDIA® GeForce® GTX 660
TypePC
OSWindows 8

See all specifications

Overview

Processor: Intel® Core™ i7 X-series
Memory: 8 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® GTX 660
Type: PC
OS: Windows 8

Brand: Alienware
Category: PCs/Workstations
Model: Aurora R4
Part numbers: W210179AU, V210379AU, U211281AU, U211280AU, W210405MYWIN8, U211102MYWIN8 +18 more
EAN / UPC: 884116116325, 884116116332, 5397063523474, 5397063523467 +6 more
Also known as: Alienware Aurora R4 Intel® Core™ i7 X-series i7-3820 8 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® GTX 660 Windows 8 Midi Tower PC Black

Specifications

136 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7 X-series
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3820
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	3.6 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Processor front side bus	1600 MHz
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3800 Desktop Series
Processor codename	Sandy Bridge E
Thermal Design Power (TDP)	130 W
Tcase	66.8 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
CPU multiplier (bus/core ratio)	44
Stepping	M1
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333,1600 MHz
Memory bandwidth supported by processor (max)	51.2 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	4x DIMM
Memory clock speed	1600 MHz
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi DL
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA II
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® GeForce® GTX 660
Discrete graphics card memory	1.5 GB
Discrete graphics memory type	GDDR5
Number of discrete graphics cards	1
On-board graphics card model	Not available

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® X79 Express
Motherboard form factor	micro ATX
Audio output channels	7.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	0
S/PDIF out port	Yes

Expansion slots

Specification	Value
PCI Express x1 slots	2
PCI Express x16 slots	2

Power

Specification	Value
Power supply	875 W

Design

Specification	Value
Chassis type	Midi Tower
Placement supported	Vertical
Product colour	Black
Cooling type	Active

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Smart Response Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	63698
Processor code	SR0LD
Processor package size	52.5 x 45.0 mm
Supported instruction sets	AVX, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	250 mm
Depth	645 mm
Height	426 mm

Packaging data

Specification	Value
Package width	447.8 mm
Package depth	866.9 mm
Package height	660.4 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Cables included	AC
Manual	Yes

Keyboard

Specification	Value
Windows keys	Yes
