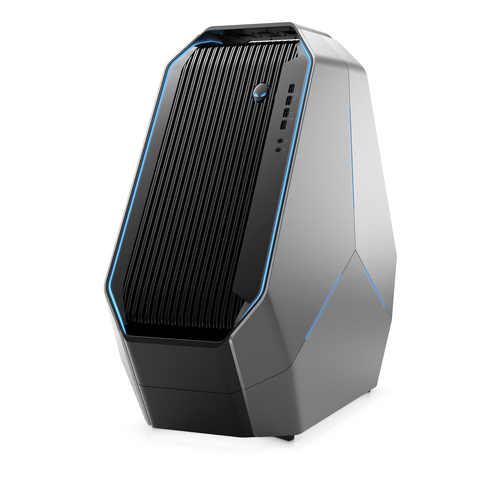

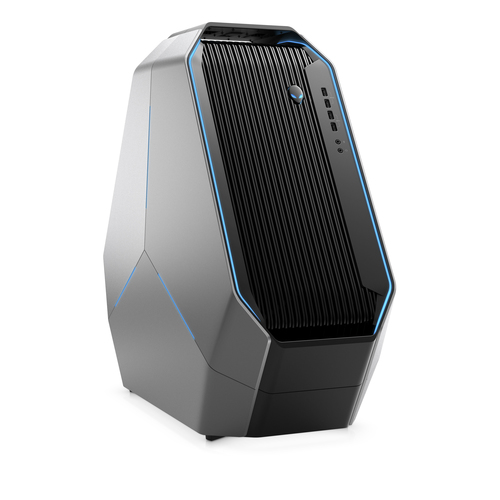

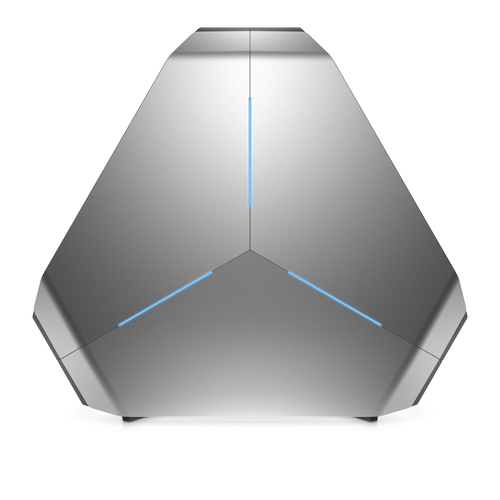

Alienware Area 51 R5
Model Area 51 R5Part no. D00AW51R516EAN 5397184163184
173 specifications
- ProcessorIntel® Core™ i7 X-series
- Memory16 GB
- Storage2.25 TB
- GraphicsNVIDIA® GeForce® GTX 1080
- SpeedWi-Fi 5 (802.11ac)
- TypePC
Overview
- Processor
- Intel® Core™ i7 X-series
- Memory
- 16 GB
- Storage
- 2.25 TB
- Graphics
- NVIDIA® GeForce® GTX 1080
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC
- Brand
- Alienware
- Category
- PCs/Workstations
- Model
- Area 51 R5
- Part numbers
- D00AW51R516, D00AW51R507, D00AW51R504, D00AW51R503, D00AW51R501, ALWA51D-7948S +24 more
- EAN / UPC
- 5397184163184, 5397184246603, 5397184246610, 5397184163177
- Also known as
- Alienware Area 51 R5 Intel® Core™ i7 X-series i7-7800X 16 GB DDR4-SDRAM 2.25 TB HDD+SSD NVIDIA® GeForce® GTX 1080 Windows 10 Advanced Tower PC Black, Blue, Grey
Specifications
173 specifications in 22 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 X-series |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor model | i7-7800X |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 3.5 GHz |
| Processor cache | 8.25 MB |
| Processor cache type | L3 |
| Bus type | DMI3 |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 140 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 28 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2066 (Socket R4) |
| Stepping | U0 |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 2667 MHz |
| Memory channels | Quad-channel |
| Memory upgrade note | Additional memory sold separately |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.25 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1080 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR5X |
| Number of discrete graphics cards | 2 |
| On-board graphics card model | Not available |
| CUDA | Yes |
| CUDA cores | 2560 |
| NVIDIA G-SYNC | Yes |
| Graphics card DVI ports quantity | 1 |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Virtual Reality (VR) ready | Yes |
| Motherboard chipset | Intel X299 Express |
| Password protection | Yes |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
| Disc types supported | CD, DVD |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Number of USB ports with PowerShare support | 3 |
| PowerShare | Yes |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| S/PDIF out port | Yes |
| On/off button | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 3 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 5 |
Power
| Specification | Value |
|---|---|
| Power supply | 850 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Blue, Grey, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Advanced |
| Operating system architecture | 64-bit |
| Trial software | McAfee LiveSafe (30 days Trial), Microsoft Office (30 days Trial) |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Processor ARK ID | 123589 |
| Processor code | SR3L4 |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, AVX-512, SSE4.1, SSE4.2 |
| Thermal solution specification | PCG 2017X |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3861 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.24 - 3048 m |
| Non-operating altitude | -15.24 - 10668 m |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 272.7 mm |
| Depth | 639 mm |
| Height | 569.2 mm |
| Weight | 28 kg |
Packaging data
| Specification | Value |
|---|---|
| Package material | Corrugated cardboard, Low-density polyethylene (LDPE), Polypropylene (PP) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Recycling data
| Specification | Value |
|---|---|
| Corrugated cardboard content per package | 4.64 kg |
| Corrugated cardboard content per shipping (inner) case | 2.64 kg |
| Corrugated cardboard content per box for accessories | 400 g |
| Corrugated cardboard content per sleeve for accessories | 1.6 kg |
| Low-density polyethylene (LDPE) content per package | 778 g |
| Polypropylene (PP) content per package | 120 g |
Sustainability
| Specification | Value |
|---|---|
| EPEAT rating | 84.8% |
Logistics data
| Specification | Value |
|---|---|
| Products per intermodal container (20ft) | 60 pc(s) |
| Products per intermodal container (40ft) | 126 pc(s) |
| Pallet gross width | 100 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 90 cm |
| Pallet gross weight | 99 kg |
| Pallet volume weight | 180 kg |
| Shipping (inner) case width | 39.8 cm |
| Maximum number of stacking cartons | 1 pc(s) |
| Shipping (inner) case length | 80.3 cm |
| Shipping (inner) case height | 76 cm |
| Shipping (inner) case gross weight | 30.4 kg |
| Shipping (inner) case volume weight | 40.5 kg |
| Master (outer) cases per pallet | 3 pc(s) |
| Products per pallet layer | 3 pc(s) |
| Layers per pallet | 1 pc(s) |
| Products per pallet | 3 pc(s) |
What people say
Reviews & ratings
Alienware Area 51 R5
No reviews yet
Be the first to tell others how Alienware Area 51 R5 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Alienware Area 51 R5
All pcs/workstations comparisons- Alienware Area 51 R5 vsAlienware Aurora R7 + AW2518HFCompare specs
- Alienware Area 51 R5 vsAlienware Area 51 R6Compare specs
- Alienware Area 51 R5 vsAlienware Area-51 R3 Threadripper EditionCompare specs
- Alienware Area 51 R5 vsAlienware Area 51 Threadripper EditionCompare specs
- Alienware Area 51 R5 vsASUS K20CE-NR059T PC Intel® Celeron® J3060Compare specs
- Alienware Area 51 R5 vsASUS VivoPC K31CD-K-NR048T PC Intel Pentium G G4560Compare specs

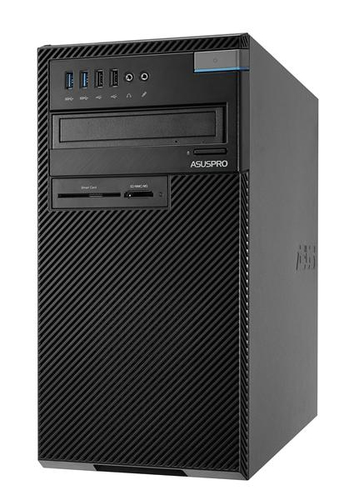

- Alienware Area 51 R5 vsASUSPRO D830MT-PRO77D Intel® Core™ i7 i7-7700Compare specs
