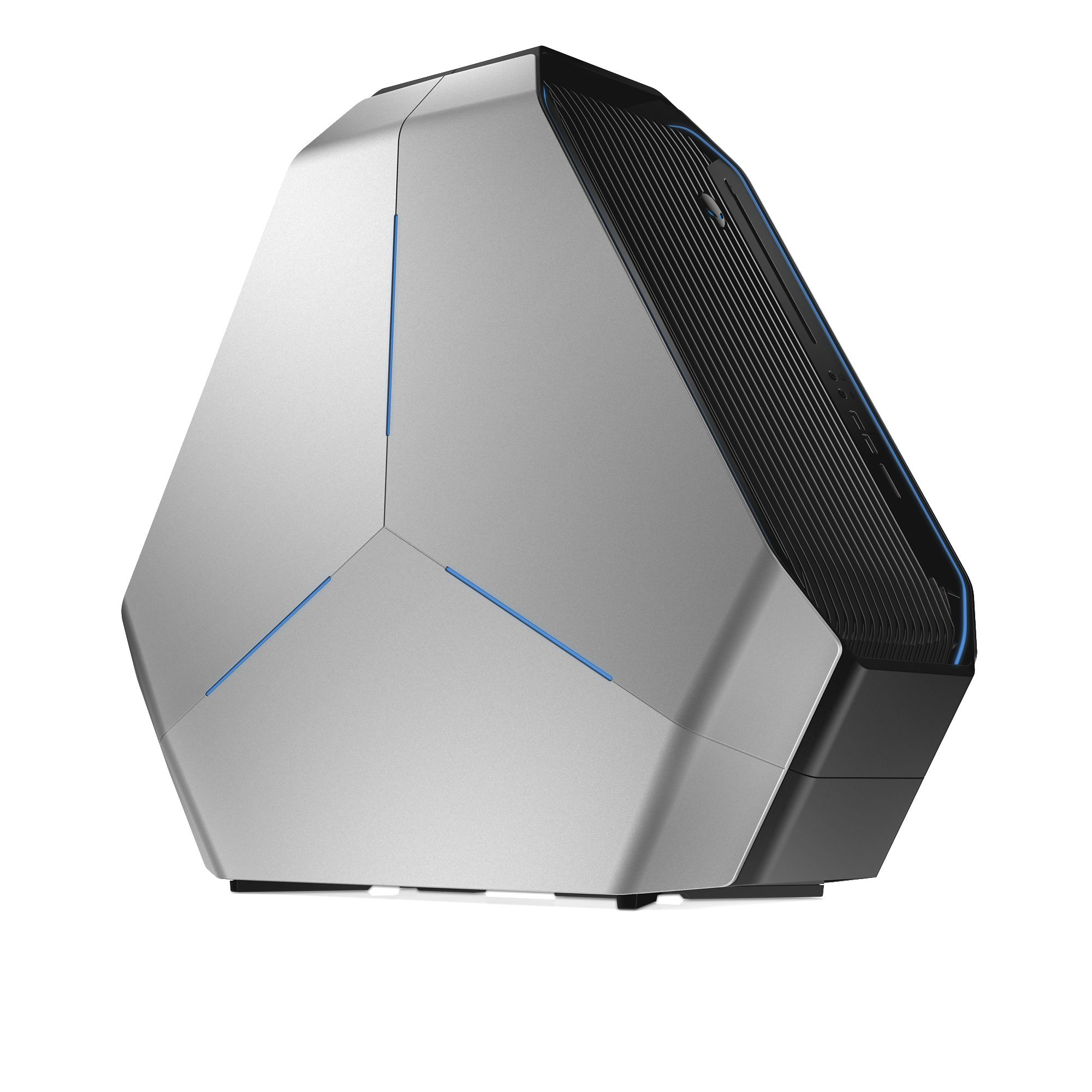

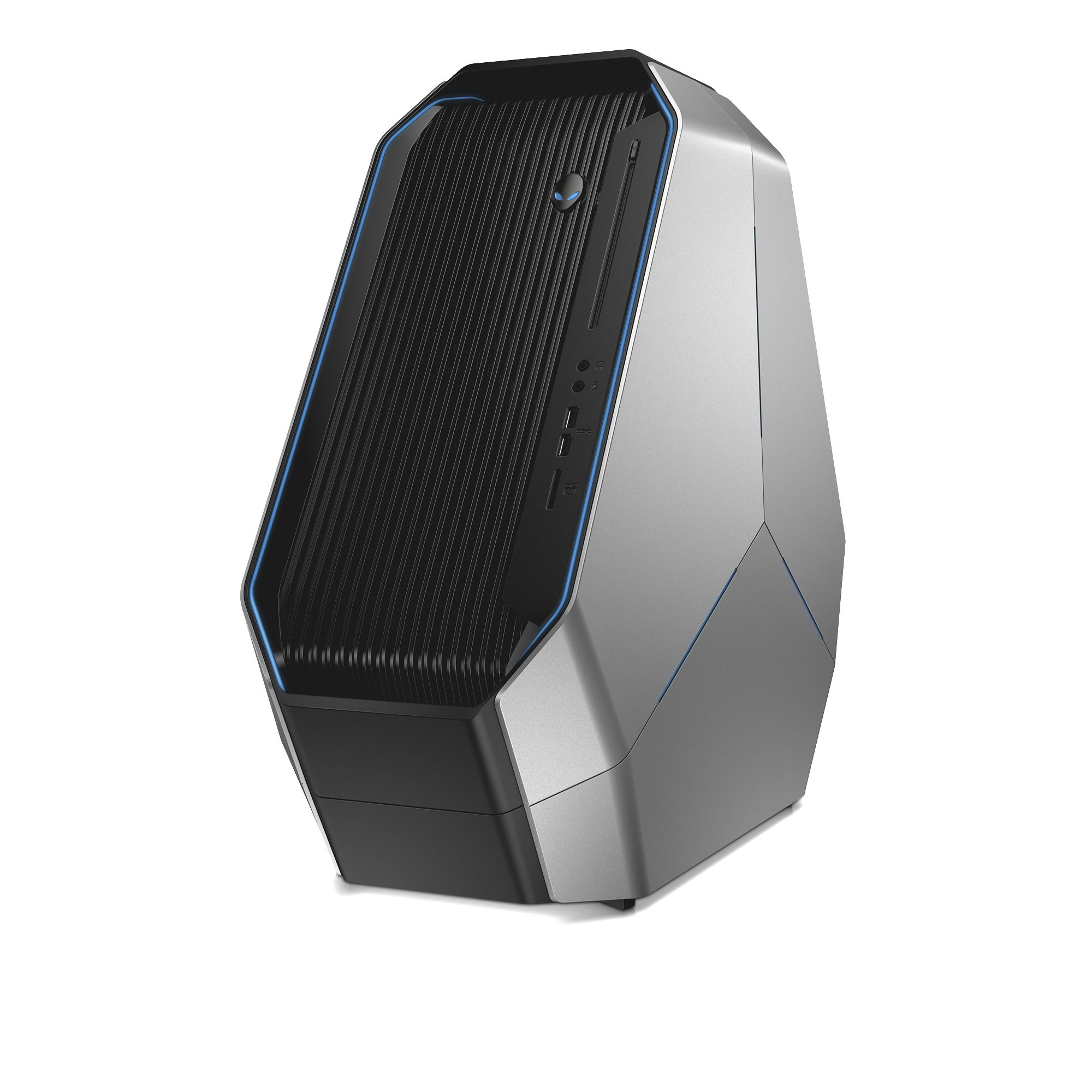

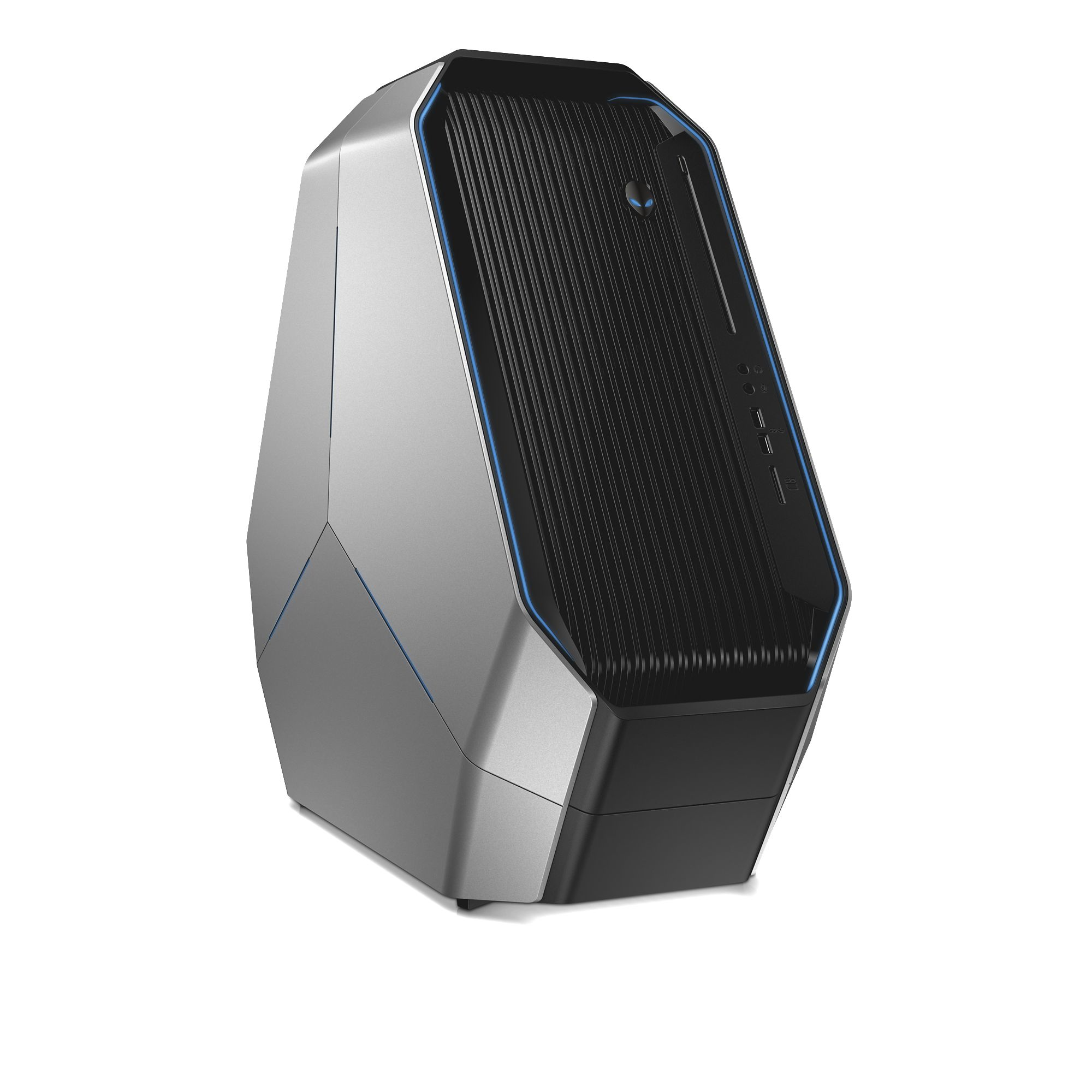

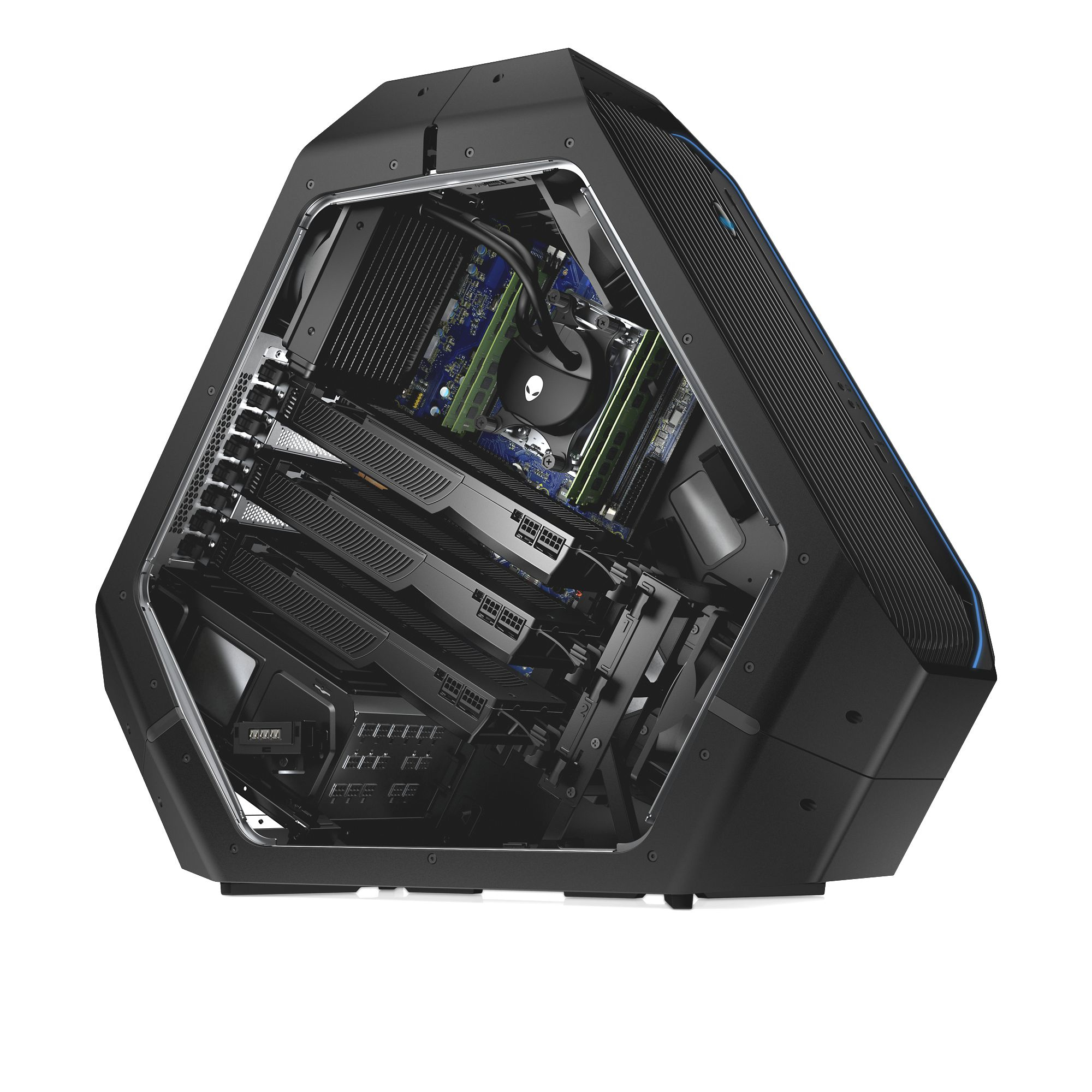

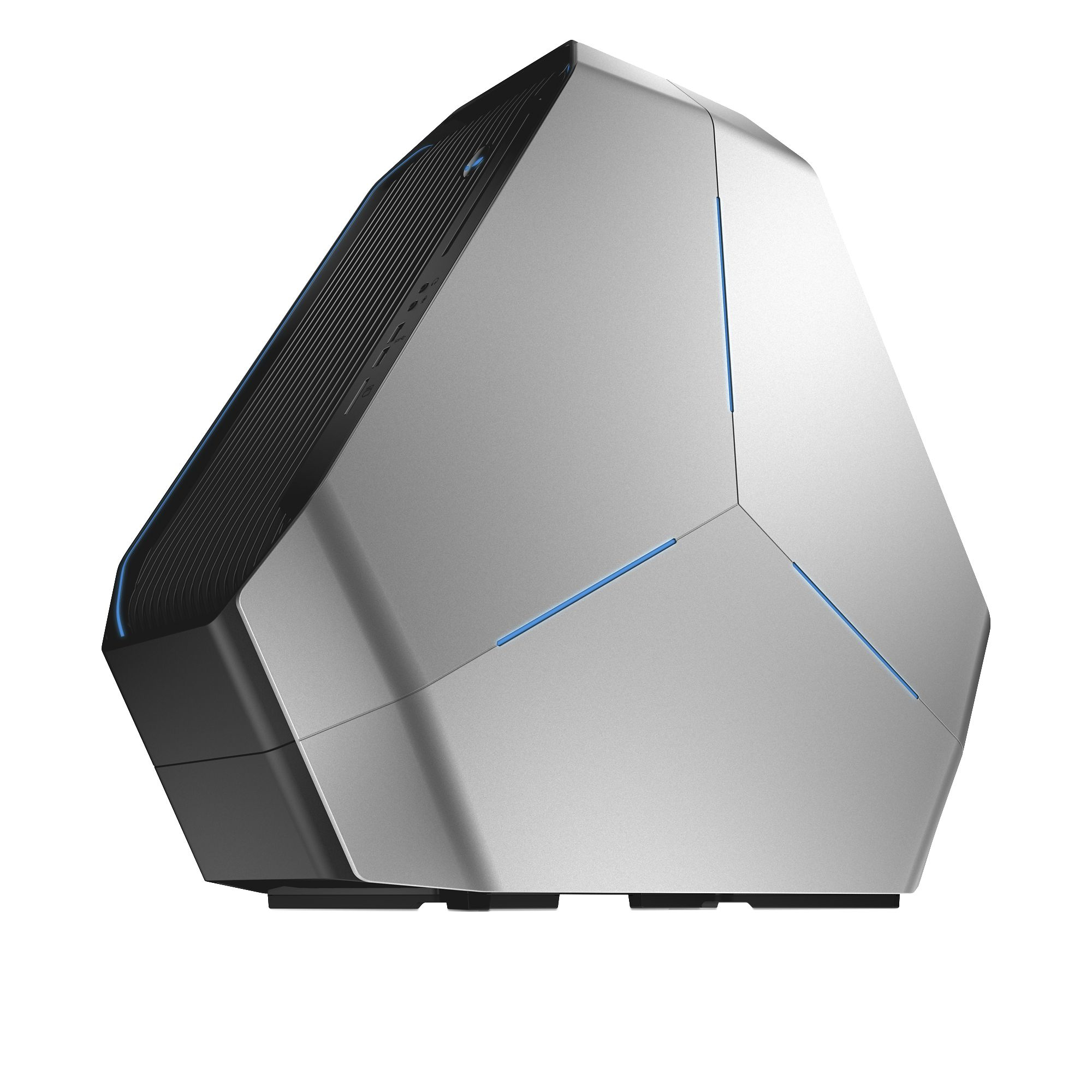

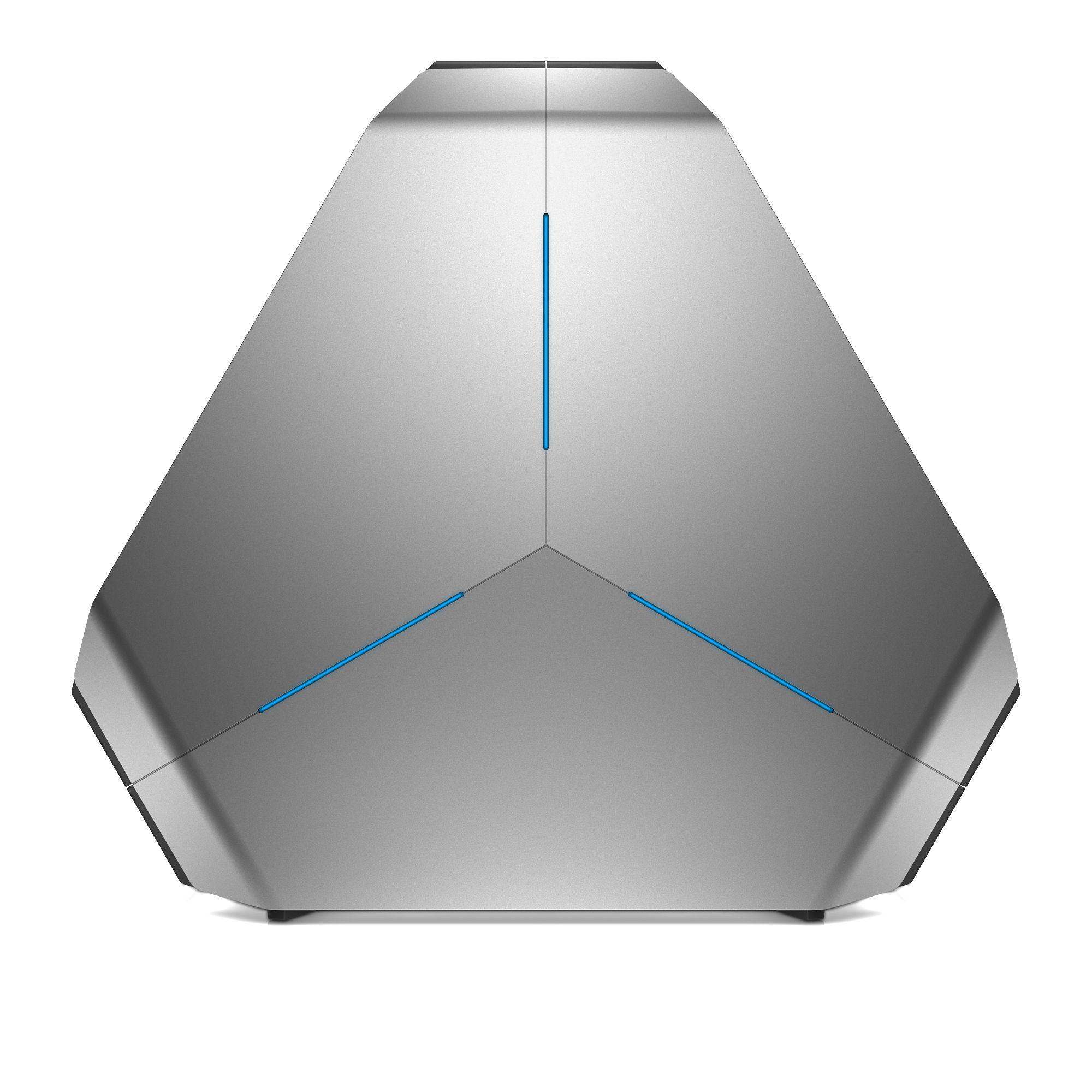

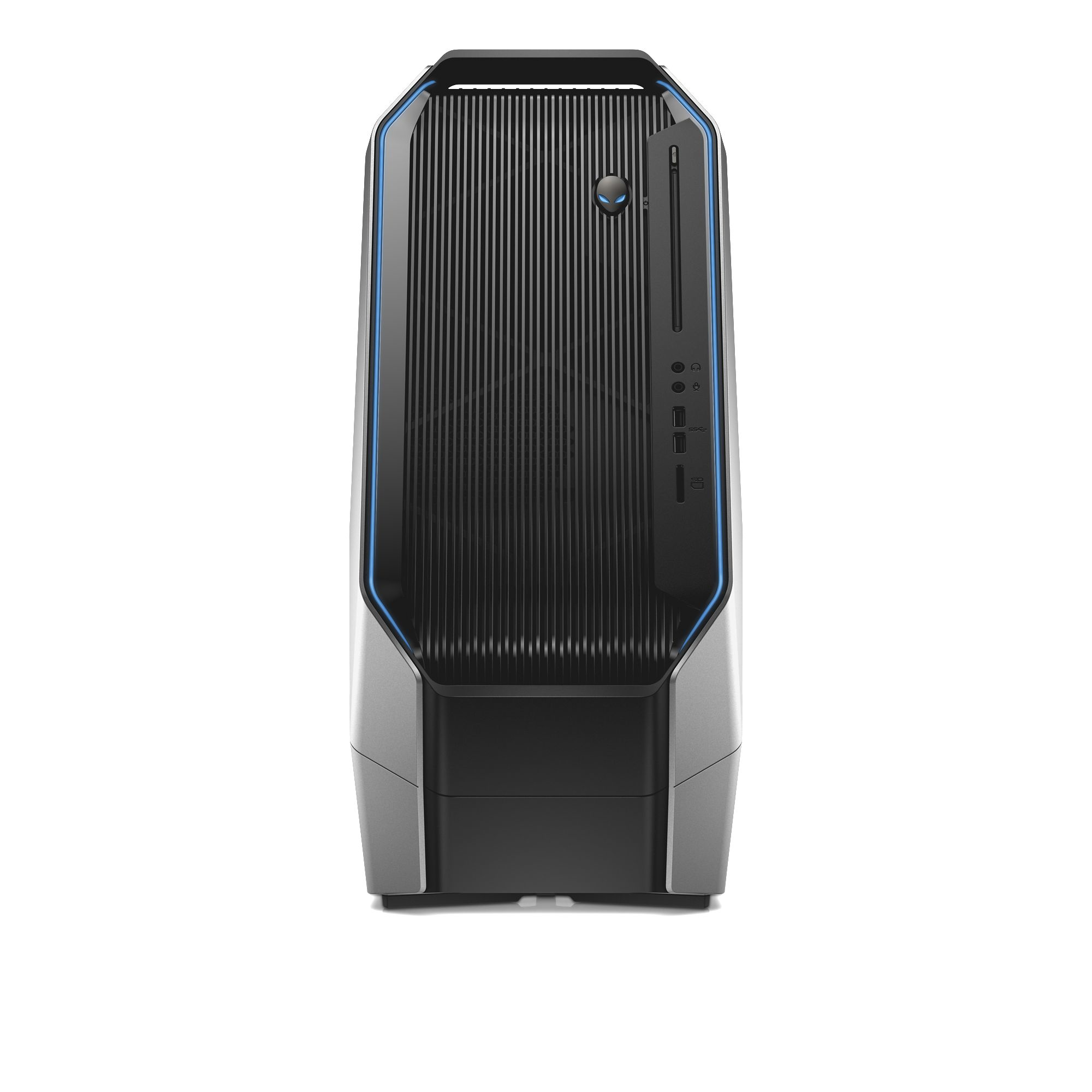

Area 51 R4
Model Area 51 R4Part no. CAAAW5132JP
125 specifications
- ProcessorIntel® Core™ i9 X-series
- Memory16 GB
- Storage2.25 TB
- GraphicsAMD Radeon RX 580
- SpeedWi-Fi 5 (802.11ac)
- TypePC
Overview
- Processor
- Intel® Core™ i9 X-series
- Memory
- 16 GB
- Storage
- 2.25 TB
- Graphics
- AMD Radeon RX 580
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC
- Brand
- Alienware
- Category
- PCs/Workstations
- Model
- Area 51 R4
- Part numbers
- CAAAW5132JP, D00AW51R401, D00AW51R420, D00AW51R407, DPCWY00B3, DPCWY00B5 +1 more
- Also known as
- Alienware Area 51 R4 Intel® Core™ i9 X-series i9-7900X 16 GB DDR4-SDRAM 2.25 TB HDD+SSD AMD Radeon RX 580 Windows 10 Home Tower PC Black, Grey, Silver
Specifications
125 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 X-series |
| Processor generation | 7th gen Intel® Core™ i9 |
| Processor model | i9-7900X |
| Processor cores | 10 |
| Processor threads | 20 |
| Processor boost frequency | 4.3 GHz |
| Processor frequency | 3.3 GHz |
| Processor cache | 13.75 MB |
| Processor cache type | L3 |
| Bus type | DMI3 |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 140 W |
| Tjunction | 95 °C |
| Maximum number of PCI Express lanes | 44 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2066 (Socket R4) |
| Stepping | U0 |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 2666 MHz |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.25 TB |
| Optical drive type | DVD Super Multi DL |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | AMD Radeon RX 580 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR5 |
| Number of discrete graphics cards | 3 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Virtual Reality (VR) ready | Yes |
| Compatible processor series | Intel® Core™ i9 |
| Password protection | Yes |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |

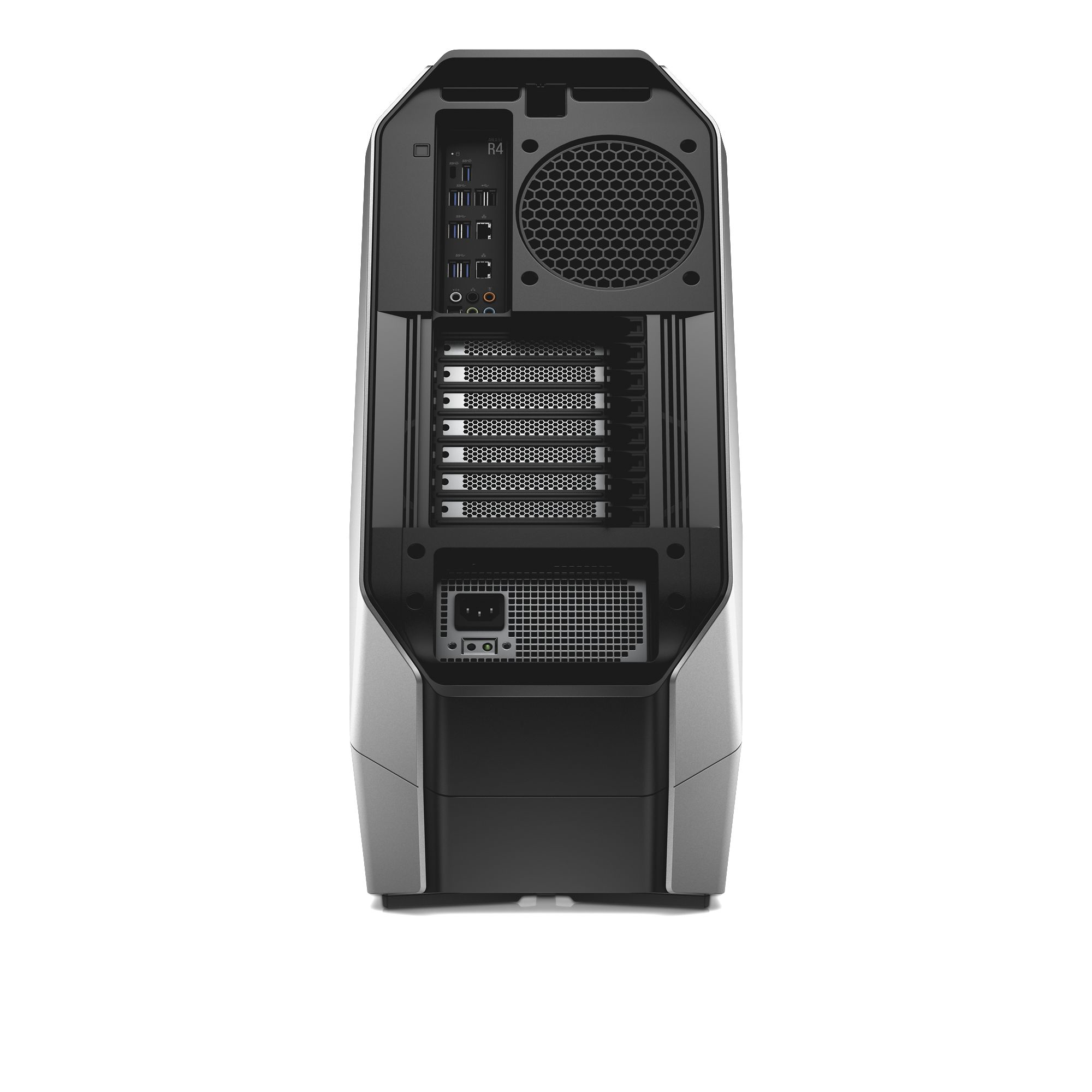

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| S/PDIF out port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 3 |
Power
| Specification | Value |
|---|---|
| Power supply | 1500 W |
| Power supply input frequency | 50 - 60 Hz |

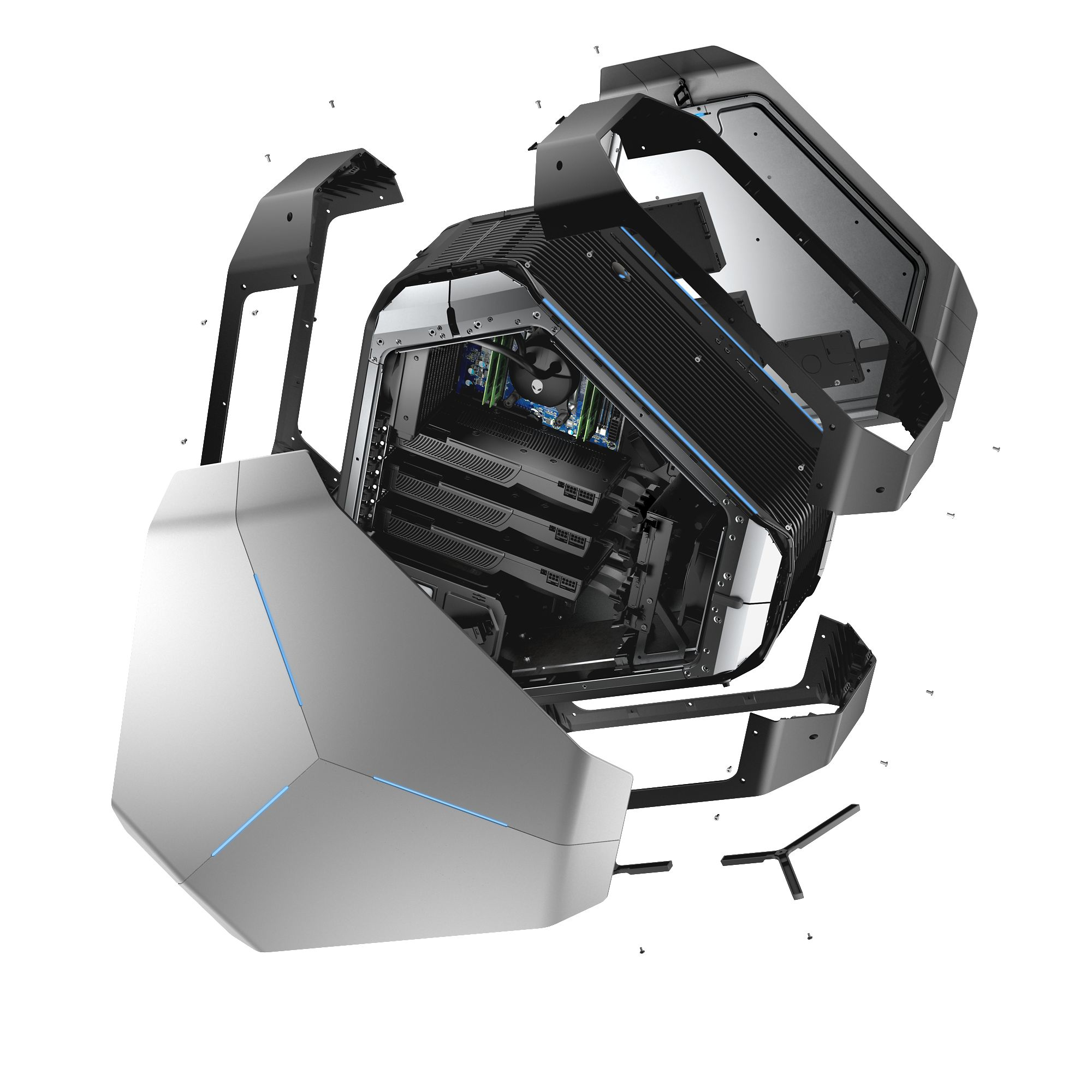

Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 2 |
| Product colour | Black, Grey, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 123613 |
| Processor code | SR3L2 |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, AVX-512, SSE4.1, SSE4.2 |
| Thermal solution specification | PCG 2017X |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3861 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.24 - 3048 m |
| Non-operating altitude | -15.24 - 10668 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 639 mm |
| Depth | 272.7 mm |
| Height | 570 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| Cables included | AC |
| Manual | Yes |
