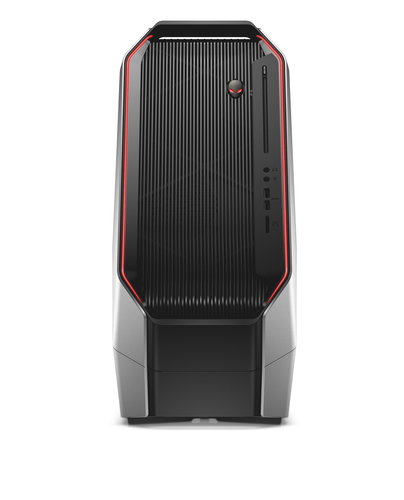

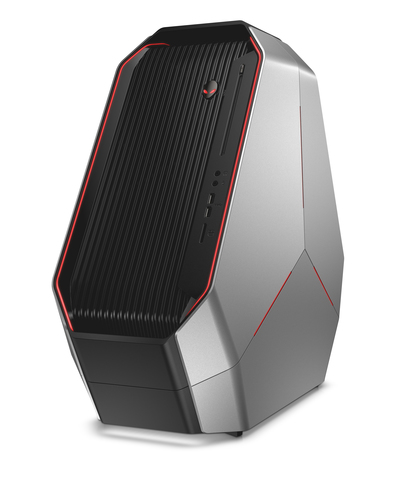

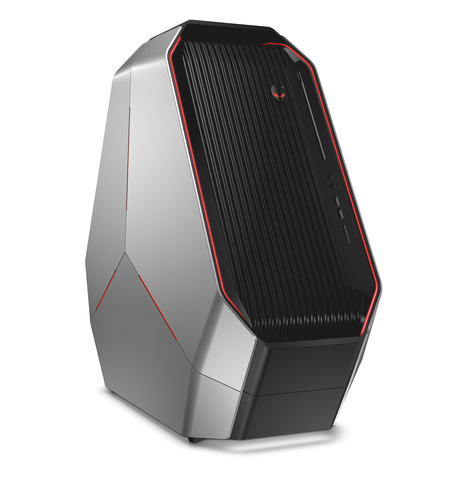

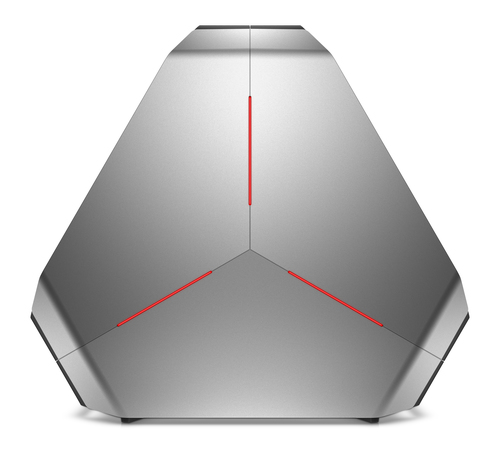

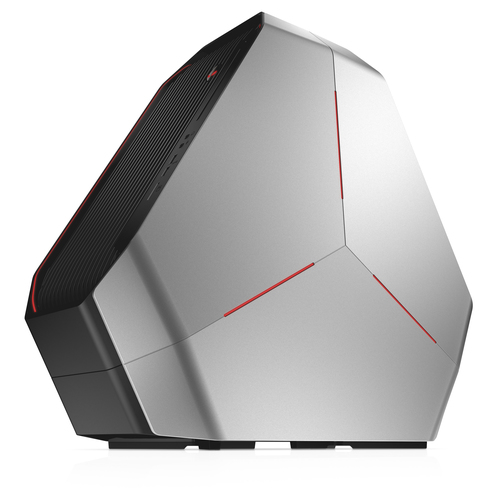

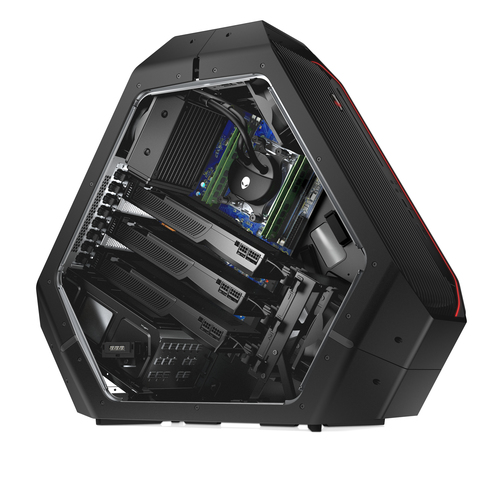

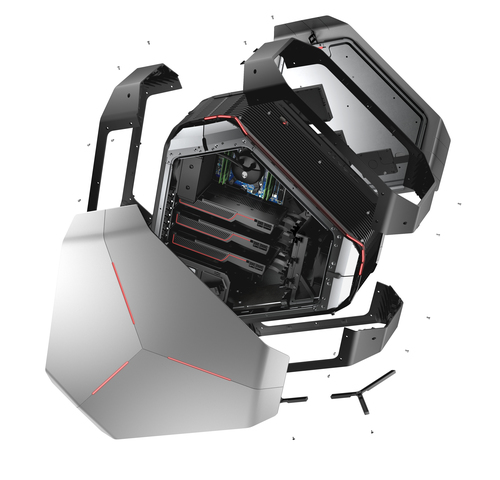

Area-51 R3 Threadripper Edition

Model Area-51 R3 Threadripper EditionPart no. DPCWYA00B1

99 specifications

Overview

Brand: Alienware
Category: PCs/Workstations
Model: Area-51 R3 Threadripper Edition
Part numbers: DPCWYA00B1, AREA51R-1136S, AREA51R-1236S, DPCWYA00B4, DPCWYA00B2, DPCWYA00B3
Also known as: Alienware Area-51 R3 Threadripper Edition AMD Ryzen™ Threadripper™ 1920X 16 GB DDR4-SDRAM 2.25 TB HDD+SSD NVIDIA® GeForce® GTX 1070 Windows 10 Tower PC Black, G

99 specifications in 17 groups

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ Threadripper™
Processor generation	AMD Ryzen Threadripper 1000 Series
Processor model	1920X
Processor cores	12
Processor threads	24
Processor boost frequency	4 GHz
Processor frequency	3.5 GHz
Processor cache	32 MB
Processor cache type	L3
Processor lithography	14 nm
Processor operating modes	64-bit
Configurable TDP-down	180 W
Maximum number of PCI Express lanes	64
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	Socket TR4
Stepping	B1
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2667 MHz
Memory bandwidth supported by processor (max)	85.3 GB/s

Specification	Value
Total storage capacity	2.25 TB
Optical drive type	DVD Super Multi
Storage media	HDD+SSD
Number of storage drives installed	2
Number of HDDs installed	1
HDD capacity	2 TB
HDD speed	7200 RPM
HDD size	3.5"
Number of SSDs installed	1
SSD capacity	256 GB
Card reader integrated	Yes

Specification	Value
Discrete graphics card	Yes
On-board graphics card	No
Discrete graphics card model	NVIDIA® GeForce® GTX 1070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR5
Number of discrete graphics cards	1
On-board graphics card model	Not available
CUDA	Yes
CUDA cores	1920
NVIDIA G-SYNC	Yes
NVIDIA GameWorks VR	Yes
Graphics card DVI-D ports quantity	1
Graphics card DisplayPorts quantity	3
Graphics card HDMI ports quantity	1

Specification	Value
Optical drives quantity	1

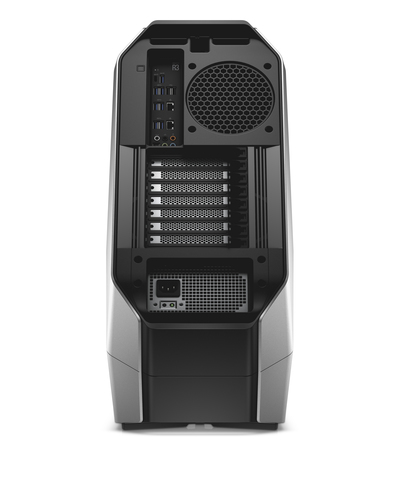

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	0
S/PDIF out port	Yes

Specification	Value
Number of 3.5" bays	3

Specification	Value
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 10

Specification	Value
Display included	No

Specification	Value
Audio system	High Definition Audio

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.24 - 3048 m
Non-operating altitude	-15.24 - 10668 m
