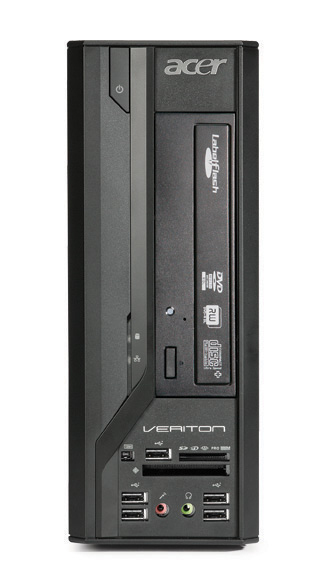

Acer Veriton X X270 Intel® Pentium® E5200

1 GB DDR2-SDRAM 160 GB NVIDIA® GeForce® 7100 Windows Vista Business SFF PC

Model X270Part no. P3.MND7Z.MFSEAN 4712842910909

95 specifications

ProcessorIntel® Pentium®
Memory1 GB
Storage160 GB
GraphicsNVIDIA® GeForce® 7100
TypePC
OSWindows Vista Business

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 1 GB
Storage: 160 GB
Graphics: NVIDIA® GeForce® 7100
Type: PC
OS: Windows Vista Business

Brand: Acer
Category: PCs/Workstations
Model: X270
Part numbers: P3.MND7Z.MFS, PU.V740Z.002
EAN / UPC: 4712842910909, 884483539178
Also known as: Acer Veriton X X270 Intel® Pentium® E5200 1 GB DDR2-SDRAM 160 GB NVIDIA® GeForce® 7100 Windows Vista Business SFF PC

Specifications

95 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	E5200
Processor cores	2
Processor threads	2
Processor frequency	2.5 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E5000 Series for Desktop
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	74.1 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	12.5
Stepping	M0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x DIMM

Storage

Specification	Value
Total storage capacity	160 GB
Optical drive type	DVD-RW
HDD interface	SATA
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 7100

Performance

Specification	Value
Product type	PC
Audio output channels	5.1 channels

Network

Specification	Value
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	9
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	1
eSATA ports quantity	1
Serial ports quantity	1
Parallel ports quantity	0

Expansion slots

Specification	Value
PCI Express x1 slots	1
PCI Express x16 slots	1

Power

Specification	Value
Power supply	220 W

Design

Specification	Value
Chassis type	SFF

Software

Specification	Value
Operating system installed	Windows Vista Business
Optional operating system supplied	Windows XP Professional
Mac compatibility	No
Trial software	-Microsoft Office 2007 (Ready) SP 1.
Bundled software	-Acer Empowering Technology. -Cyberlink PowerDVD. -NTI Media Maker. -Adobe Reader.

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	37212
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio

Weight & dimensions

Specification	Value
Width	100 mm
Depth	315 mm
Height	265 mm

Other features

Specification	Value
Intel segment tagging	Enterprise, Small Business
