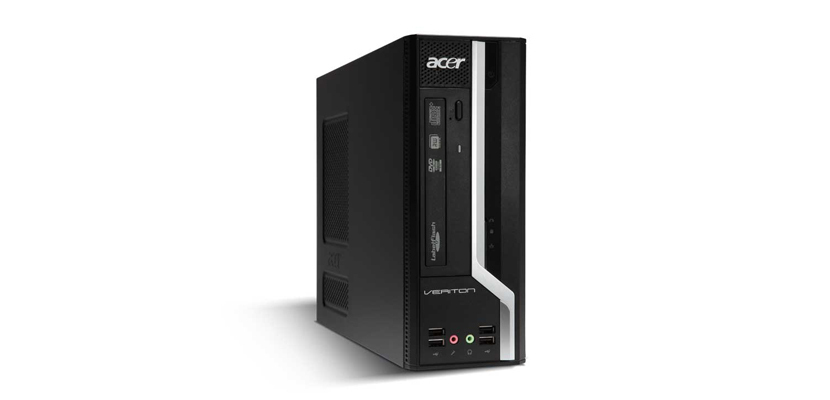

Acer Veriton X VX488G-BD5700W Intel® Pentium® E5700

2 GB DDR3-SDRAM 320 GB Intel® GMA X4500 Windows 7 Professional Mini Tower PC Black, Silver

Model VX488G-BD5700WPart no. PU.V9803.001

105 specifications

Display48.3 cm (19")
ProcessorIntel® Pentium®
Memory2 GB
Storage320 GB
GraphicsIntel® GMA X4500
TypePC

See all specifications

Overview

Display: 48.3 cm (19")
Processor: Intel® Pentium®
Memory: 2 GB
Storage: 320 GB
Graphics: Intel® GMA X4500
Type: PC

Brand: Acer
Category: PCs/Workstations
Model: VX488G-BD5700W
Part number: PU.V9803.001
Also known as: Acer Veriton X VX488G-BD5700W Intel® Pentium® E5700 2 GB DDR3-SDRAM 320 GB Intel® GMA X4500 Windows 7 Professional Mini Tower PC Black, Silver

Specifications

105 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	E5700
Processor cores	2
Processor threads	2
Processor frequency	3 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E5000 Series for Desktop
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	74.1 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	15
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	DVD-RW
HDD interface	SATA
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA X4500
Graphics card family	Intel

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
eSATA ports quantity	1
Serial ports quantity	0
Parallel ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	1
PCI Express x1 slots	1
PCI Express x16 slots	1

Power

Specification	Value
Power supply	220 W

Design

Specification	Value
Chassis type	Mini Tower
Number of 5.25" bays	1
Product colour	Black, Silver

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit

Display

Specification	Value
Display included	Yes
Display diagonal	48.3 cm (19")
Display	LCD

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	42801
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Weight & dimensions

Specification	Value
Width	101.5 mm
Depth	396.8 mm
Height	266.5 mm

Certificates

Specification	Value
Certification	EPEAT Silver

Other features

Specification	Value
Intel segment tagging	Enterprise, Small Business
