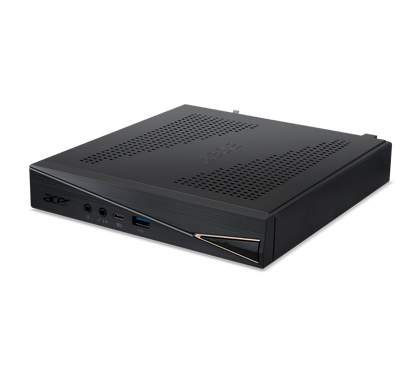

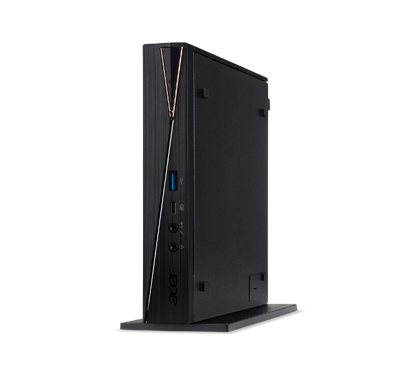

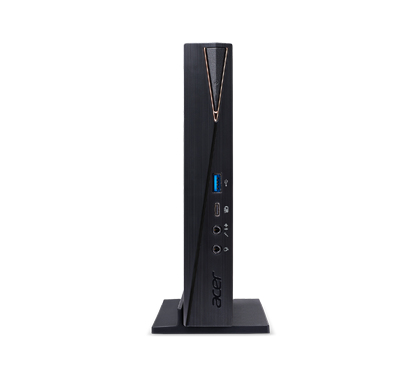

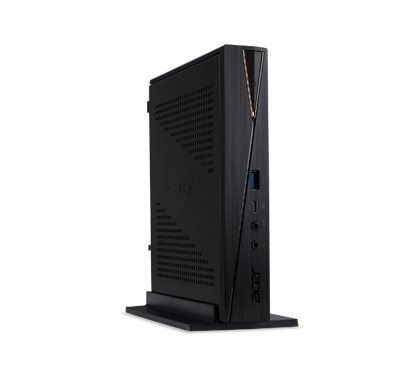

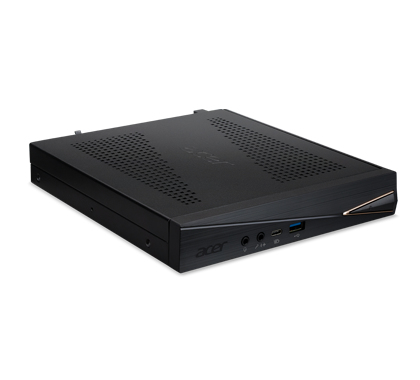

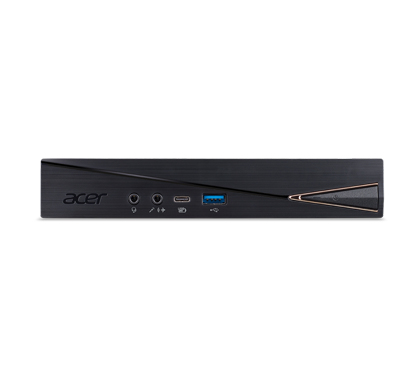

Revo RN86 Intel® Core™ i3 i3-9100T
4 GB DDR4-SDRAM 128 GB SSD Windows 10 Home Mini PC Black
Model RN86Part no. DT.BESEG.00GEAN 4710180878769
112 specifications
- ProcessorIntel® Core™ i3
- Memory4 GB
- Storage128 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Storage
- 128 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- RN86
- Part numbers
- DT.BESEG.00G, DT.BESEG.009, DT.BESEG.007, DT.BESER.004, DT.BESER.006, DT.BESER.00C +4 more
- EAN / UPC
- 4710180878769, 4710180878783, 4710886184720, 4710886184737 +1 more
- Also known as
- Acer Revo RN86 Intel® Core™ i3 i3-9100T 4 GB DDR4-SDRAM 128 GB SSD Windows 10 Home Mini PC Black
Specifications
112 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 9th gen Intel® Core™ i3 |
| Processor model | i3-9100T |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.7 GHz |
| Processor frequency | 3.1 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 35 W |
| Configurable TDP-down | 25 W |
| Configurable TDP-down frequency | 2.4 GHz |
| Tjunction | 82 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x8+2x4, 1x16, 2x8 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card memory | 64 GB |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E91 |
| On-board graphics card OpenGL version | 4.5 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |

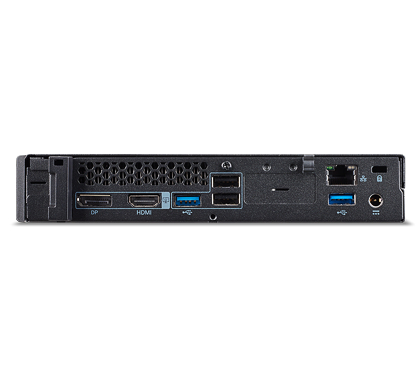

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Line-in | Yes |
| DVI port | No |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 134871 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015A |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 192 mm |
| Depth | 204 mm |
| Height | 33.2 mm |
| Weight | 1.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
