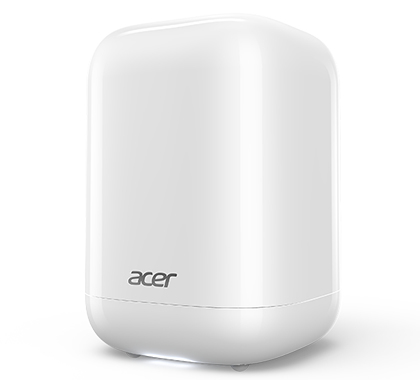

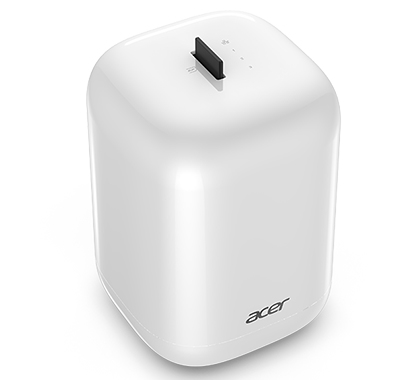

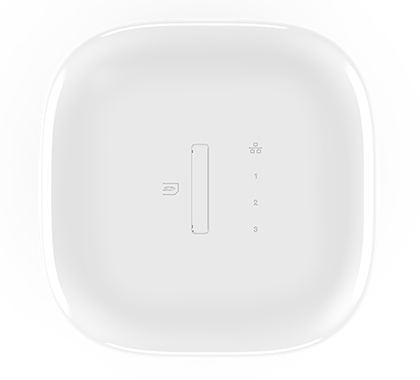

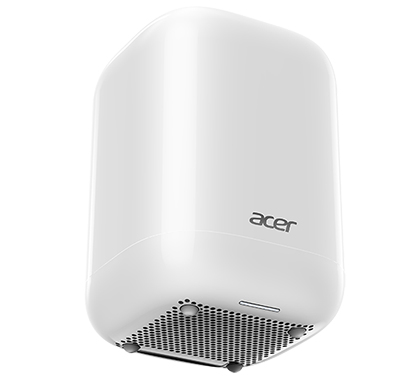

Revo RL85-UR45 Intel® Core™ i5 i5-5200U

8 GB DDR3L-SDRAM 1 TB HDD Windows 8.1 Small Desktop PC White

Model RL85-UR45Part no. DT.SYYAA.001EAN 888863083404

130 specifications

ProcessorIntel® Core™ i5
Memory8 GB
Storage1 TB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypePC

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 1 TB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: PC

Brand: Acer
Category: PCs/Workstations
Model: RL85-UR45
Part number: DT.SYYAA.001
EAN / UPC: 888863083404
Also known as: Acer Revo RL85-UR45 Intel® Core™ i5 i5-5200U 8 GB DDR3L-SDRAM 1 TB HDD Windows 8.1 Small Desktop PC White

Specifications

130 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	5th gen Intel® Core™ i5
Processor model	i5-5200U
Processor cores	2
Processor threads	4
Processor boost frequency	2.7 GHz
Processor frequency	2.2 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI2
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel® Core™ i5-5200 Mobile Series
Processor codename	Broadwell
Thermal Design Power (TDP)	15 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.6 GHz
Tjunction	105 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	4x1, 2x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1168
Stepping	F0
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	No
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5500
Maximum on-board graphics card memory	16 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	11.2
On-board graphics card ID	0x1616

Performance

Specification	Value
Product type	PC

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth	Yes

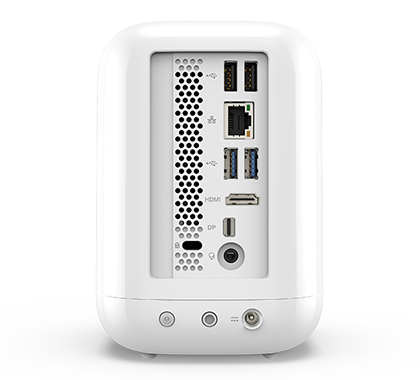

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
VGA (D-Sub) ports quantity	0
DVI port	No

Expansion slots

Specification	Value
Mini PCI Express slots	1
PCI slots	1

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Chassis type	Small Desktop
Placement supported	Vertical
Product colour	White

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	85212
Processor code	SR23Y
Processor package size	40 x 24 x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
