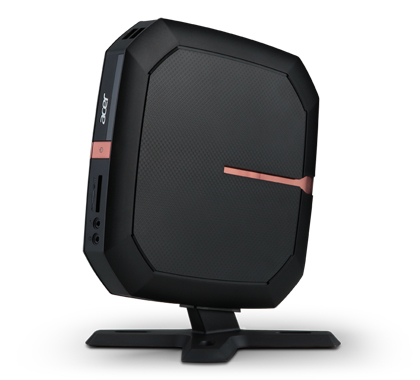

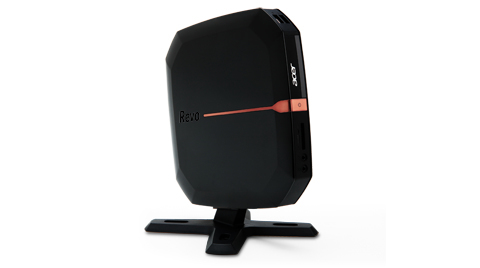

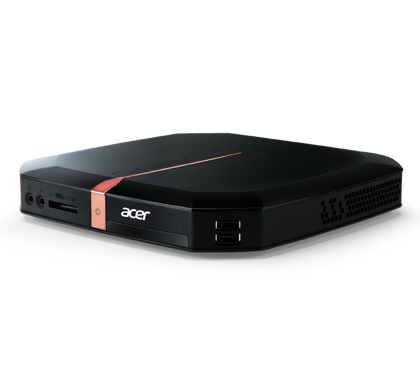

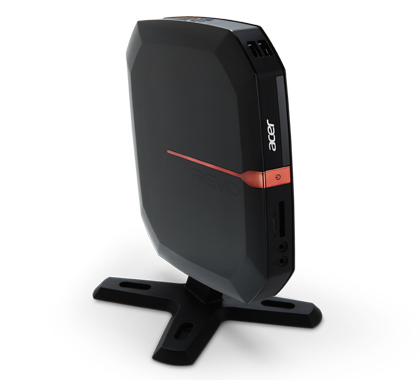

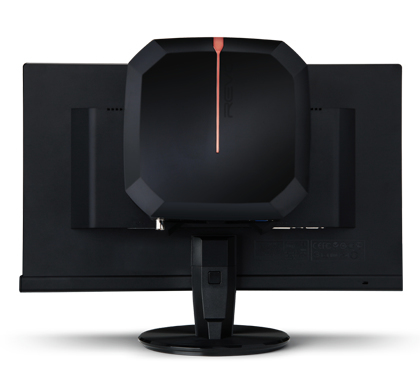

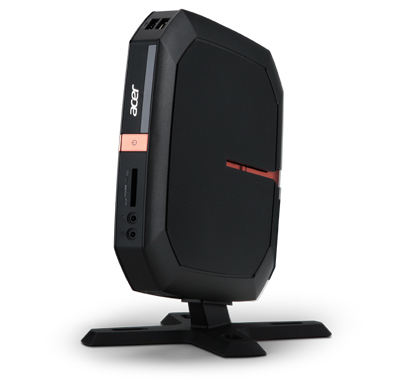

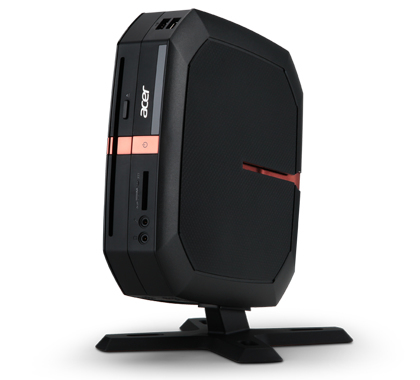

Acer Revo RL80-MW11 Intel® Celeron® 1017U

4 GB 1 TB HDD Windows 8 Nettop PC Black, Red

Model RL80-MW11Part no. DT.SQJAL.001

120 specifications

ProcessorIntel® Celeron®
Memory4 GB
Storage1 TB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypePC

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 4 GB
Storage: 1 TB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: PC

Brand: Acer
Category: PCs/Workstations
Model: RL80-MW11
Part number: DT.SQJAL.001
Also known as: Acer Revo RL80-MW11 Intel® Celeron® 1017U 4 GB 1 TB HDD Windows 8 Nettop PC Black, Red

Specifications

120 specifications in 15 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	1017U
Processor cores	2
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	2 MB
Processor cache type	L3
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Celeron 1000 series for Mobile
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	17 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1023
Stepping	P0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1000 MHz

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
S/PDIF out port	Yes
DC-in jack	Yes

Expansion slots

Specification	Value
Mini PCI Express slots	2

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Chassis type	Nettop
Product colour	Black, Red

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75192
Processor code	SR10A
Processor package size	31 x 24 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
Integrated 4G WiMAX	No

Weight & dimensions

Specification	Value
Width	209.9 mm
Depth	209.9 mm
Height	35.4 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
