Revo RB102
Model Revo RB102Part no. DT.BRFEG.002EAN 4711474787545
80 specifications
- ProcessorIntel Core Ultra 5
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel Core Ultra 5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Revo RB102
- Part numbers
- DT.BRFEG.002, DT.BMCEG.002
- EAN / UPC
- 4711474787545, 4711474340986
- Also known as
- Acer Revo Box RB102 Intel Core Ultra 5 120U 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Specifications
80 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 120U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 5 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 0 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 55 W |
| Processor base power | 15 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® Graphics |
| Graphics card Open GL support | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

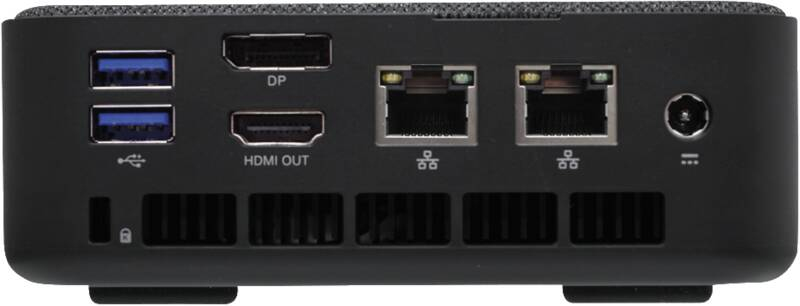

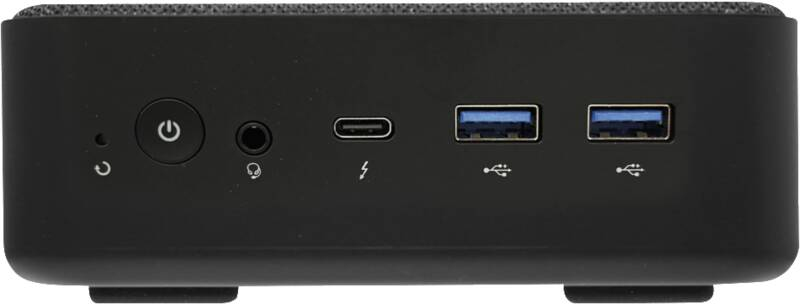

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office 2019 |
| Bundled software | Acer Care Center, Acer Configuration Manager, Acer Product Registration, Quick Access |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 131 mm |
| Height | 43 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 194 mm |
| Package depth | 360 mm |
| Package height | 68 mm |
| Package weight | 1.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| VESA mount included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RoHS |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
