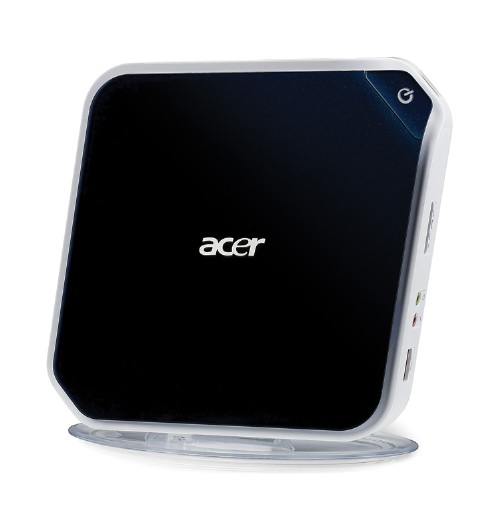

Revo R3610
Model Revo R3610Part no. 92.NVFYZ.U2NEAN 4718235923631
86 specifications
- ProcessorIntel Atom®
- Memory4 GB
- Storage500 GB
- GraphicsNVIDIA® ION™
- TypePC
- OSWindows 7 Home Premium
Overview
- Processor
- Intel Atom®
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- NVIDIA® ION™
- Type
- PC
- OS
- Windows 7 Home Premium
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Revo R3610
- Part number
- 92.NVFYZ.U2N
- EAN / UPC
- 4718235923631
- Also known as
- Acer Aspire Revo R3610 Intel Atom® 330 4 GB DDR2-SDRAM 500 GB NVIDIA® ION™ Windows 7 Home Premium Small Desktop PC
Specifications
86 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | 330 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.6 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 8 W |
| Tcase | 85.2 °C |
| Tjunction | 100 °C |
| Processor socket | BGA 437 |
| Number of Processing Die Transistors | 94 M |
| Processing Die size | 52 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| Processor core voltage (AC) | 1.25 - 1.40 V |
| Stepping | C0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS Pro, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® ION™ |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | NVIDIA® ION™ |
Network
| Specification | Value |
|---|---|
| Wireless technology | 802.11b/g |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Small Desktop |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 35641 |
| Processor code | SLG9Y |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
