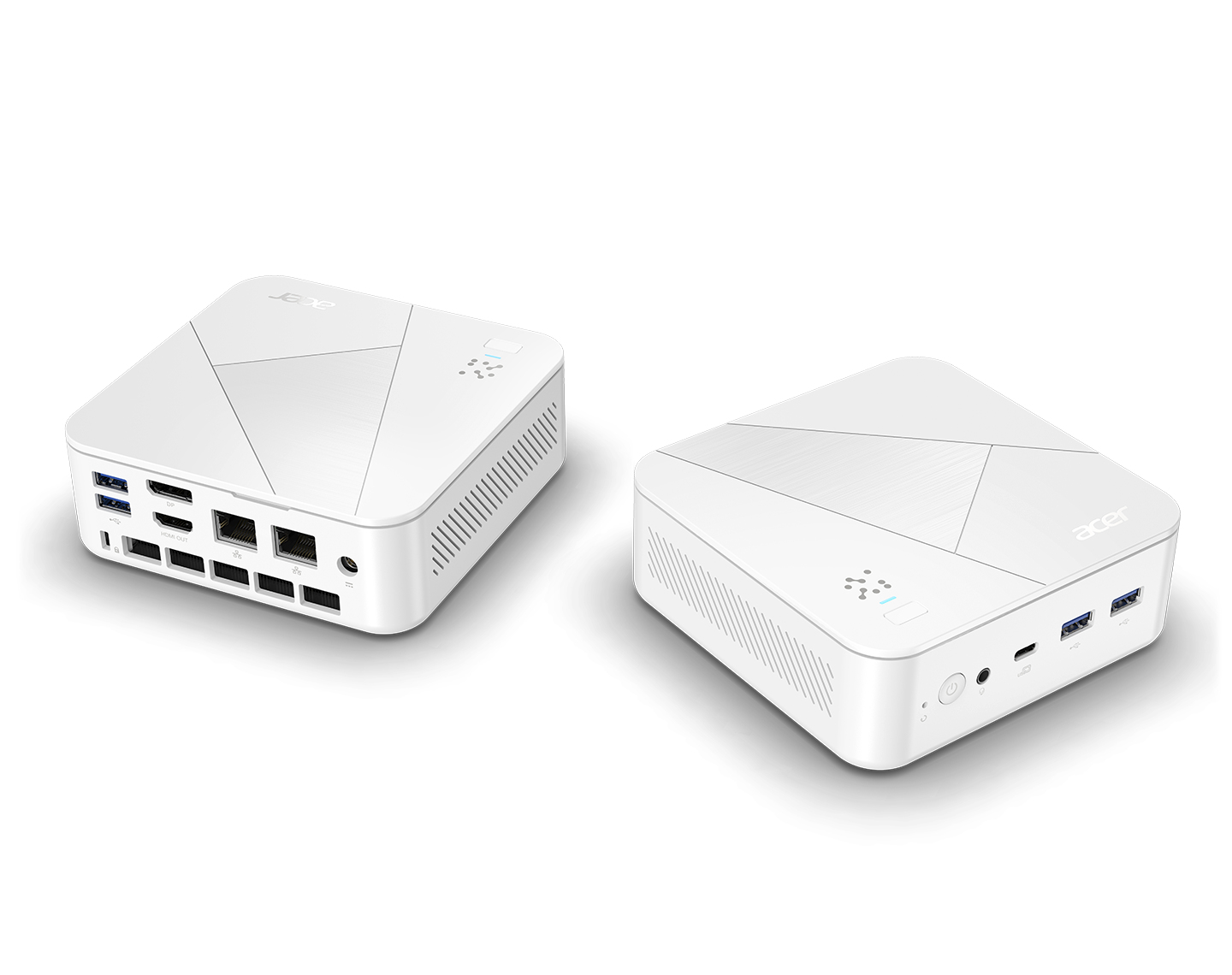

Revo Box RB102-RPL Intel Core 5 120U
16 GB DDR4-SDRAM 512 GB SSD Windows 11 Home MFF Mini PC White
Model RB102-RPLPart no. DT.BRFEG.008EAN 4711474841827
46 specifications
- ProcessorIntel Core 5
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- TypeMini PC
- OSWindows 11 Home
Overview
- Processor
- Intel Core 5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Type
- Mini PC
- OS
- Windows 11 Home
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- RB102-RPL
- Part number
- DT.BRFEG.008
- EAN / UPC
- 4711474841827
- Also known as
- Acer Revo Box RB102-RPL Intel Core 5 120U 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Home MFF Mini PC White
Specifications
46 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core 5 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 120U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 5 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | BGA 1744 |
| Maximum turbo power | 55 W |
| Processor base power | 15 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | MFF |
| Product colour | White |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 131 mm |
| Height | 43 mm |
