RB102-20CPW Mini
Model RB102-20CPW MiniPart no. DT.BPLEH.002EAN 4711474376091
83 specifications
- ProcessorIntel Core Ultra 5
- Memory16 GB
- Storage1 TB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel Core Ultra 5
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- RB102-20CPW Mini
- Part number
- DT.BPLEH.002
- EAN / UPC
- 4711474376091
- Also known as
- Acer Revo Box RB102-20CPW Mini Copilot+ PC Intel Core Ultra 5 226V 16 GB LPDDR5x-SDRAM 1 TB SSD Windows 11 Home Mini PC White
Specifications
83 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 226V |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 2.1 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Copilot+ PC | Yes |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, WebNN, Windows ML |
| NPU performance up to | 40 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 8533 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Arc Graphics 130V |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Fingerprint reader | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

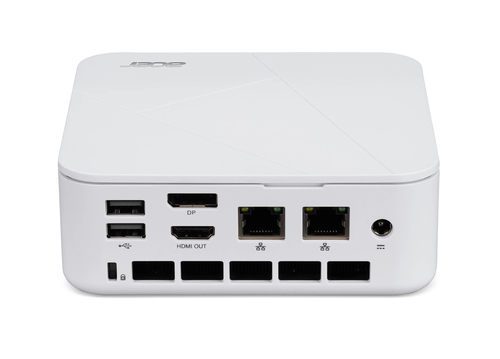

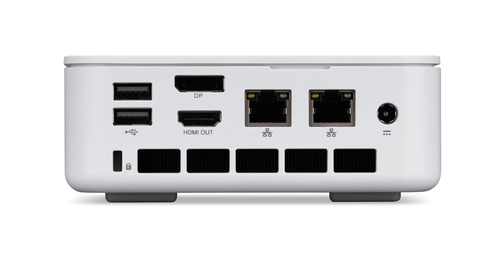

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 90 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 0.9 L |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 131 mm |
| Height | 43 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 173 mm |
| Package depth | 265 mm |
| Package height | 75 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| VESA mount included | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
