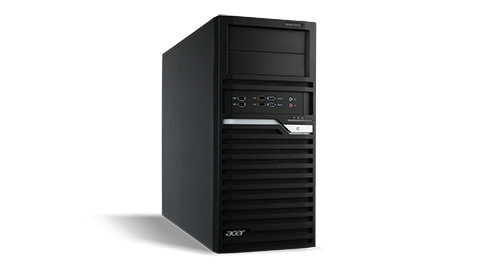

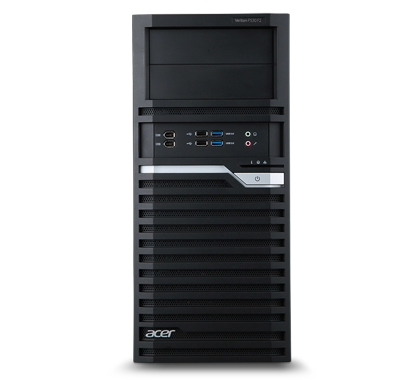

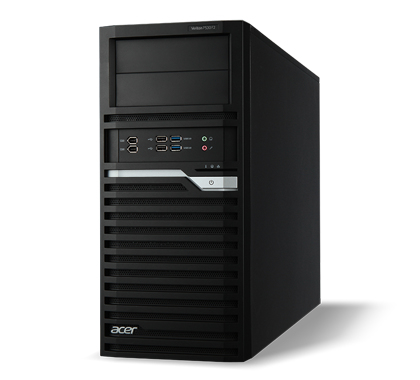

Veriton P530 Intel® Xeon® E5 Family E5-2603V2
32 GB DDR3-SDRAM 1 TB HDD NVIDIA® Quadro® K4000 Windows 7 Professional PC Black
Model P530Part no. SX.R94EG.001EAN 4713147148660
119 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA® Quadro® K4000
- TypePC
- OSWindows 7 Professional
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® Quadro® K4000
- Type
- PC
- OS
- Windows 7 Professional
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- P530
- Part number
- SX.R94EG.001
- EAN / UPC
- 4713147148660
- Also known as
- Acer Veriton P530 Intel® Xeon® E5 Family E5-2603V2 32 GB DDR3-SDRAM 1 TB HDD NVIDIA® Quadro® K4000 Windows 7 Professional PC Black
Specifications
119 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2603V2 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 1.8 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| System bus rate | 6.4 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 v2 |
| Processor codename | Ivy Bridge EP |
| Thermal Design Power (TDP) | 80 W |
| Tcase | 71 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | x4, x8, x16 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 2 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011 (Socket R) |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 8x DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA, SATA II |
| HDD speed | 7200 RPM |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | NVIDIA® Quadro® K4000 |
| Discrete graphics card memory | 3 GB |
| Discrete graphics memory type | GDDR5 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® C602 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |

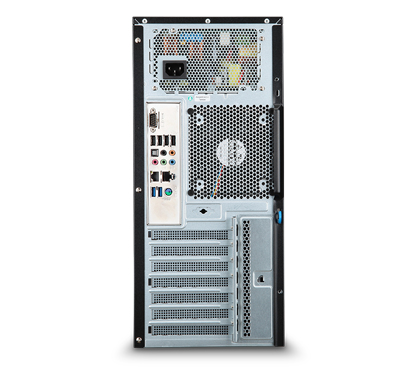

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | No |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | No |
| DC-in jack | No |
| SmartCard slot | No |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 3 |
Power
| Specification | Value |
|---|---|
| Power supply | 900 W |
| Power supply input voltage | 100 - 220 V |
Design
| Specification | Value |
|---|---|
| Number of 5.25" bays | 2 |
| Product colour | Black |
| Form factor | Desktop |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 46 bit |
| Processor ARK ID | 76157 |
| Processor package size | 52.5 x 45 mm |
| Scalability | 2S |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 193 mm |
| Depth | 530 mm |
| Height | 424 mm |
| Weight | 18.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | Yes |
| Cables included | AC |
Other features
| Specification | Value |
|---|---|
| Intel segment tagging | Enterprise, Small Business |
