Aspire TC-1785 Tower Desktop - Intel Core i7-14700
8GB, 512GB SSD, Integrated Graphics, No Display, Windows 11, Black
Model DT.BLNEK.018EAN 4711474485755
69 specifications
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage512 GB
- SpeedWi-Fi 6E (802.11ax)
- TypePC
- OSWindows 11 Home
Overview
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 512 GB
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- OS
- Windows 11 Home
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- DT.BLNEK.018
- Part number
- DT.BLNEK.018
- EAN / UPC
- 4711474485755
- Also known as
- Acer Aspire TC-1785 Tower Desktop - Intel Core i7-14700, 8GB, 512GB SSD, Integrated Graphics, No Display, Windows 11, Black
Specifications
69 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Processor frequency | 2.1 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | M.2, PCI Express 4.0 |
| M.2 SSD size | 2280 (22 x 80 mm) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |

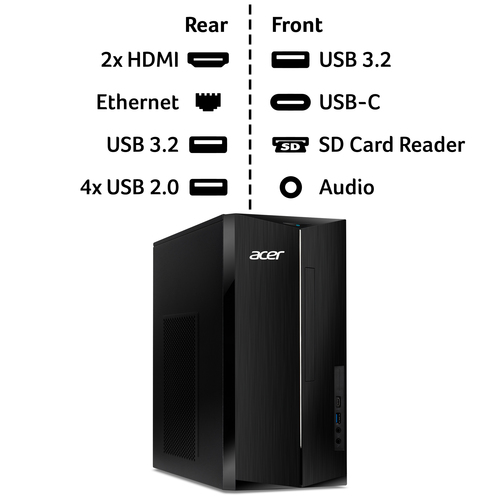

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | No |
| Headphone outputs | 2 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| Number of front USB ports | 2 |
| Number of front audio ports | 2 |
| Number of rear USB ports | 5 |
| Number of rear audio ports | 3 |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Colour name | Black |
| Volume | 19.4 L |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163 mm |
| Depth | 350 mm |
| Height | 340 mm |
| Weight | 7.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 234 mm |
| Package depth | 495 mm |
| Package height | 415 mm |
| Package weight | 7.8 kg |
