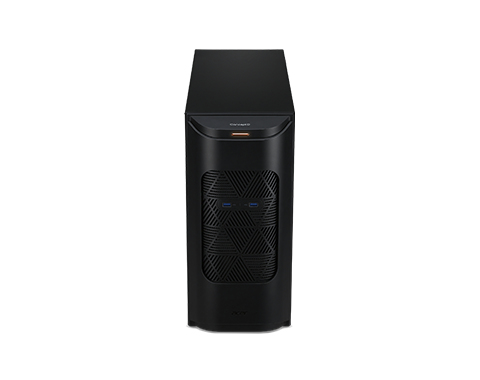

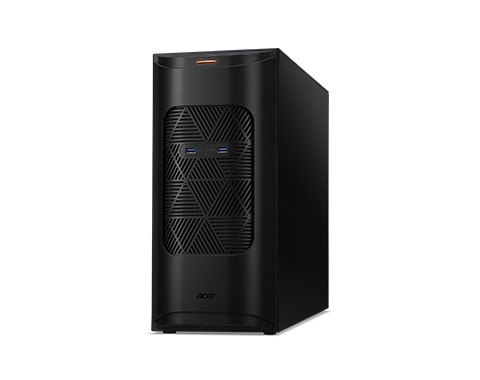

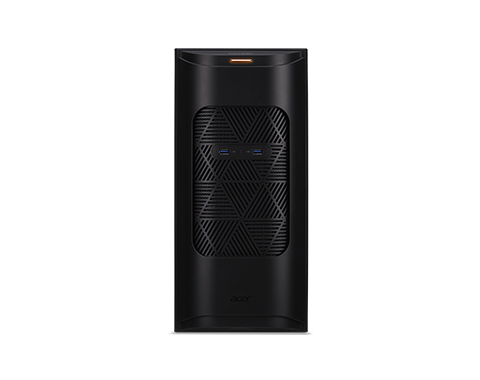

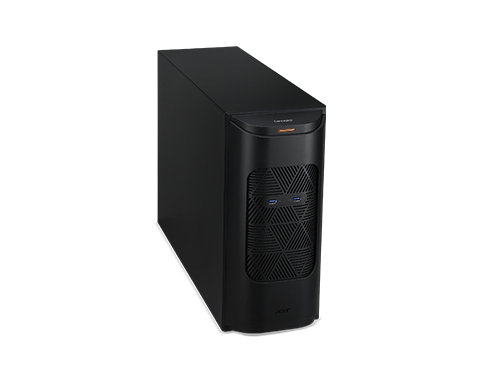

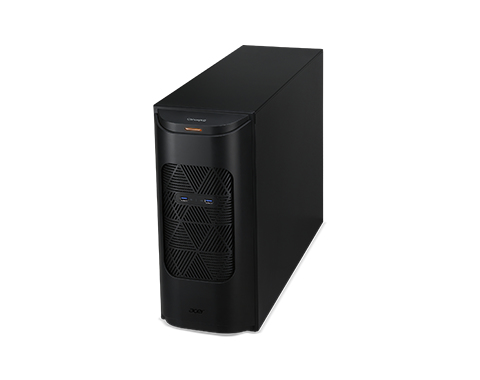

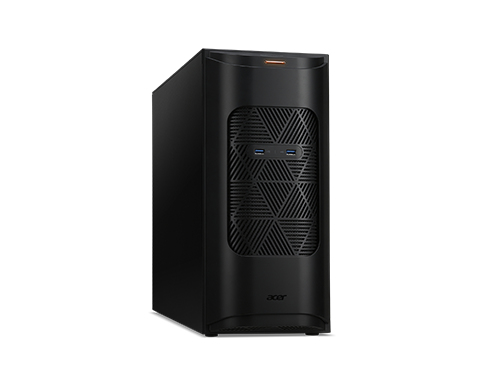

ConceptD CT900-91A-ED11 Intel® Xeon® 6148
192 GB DDR4-SDRAM 1 TB SSD NVIDIA Quadro RTX 6000 Windows 10 Pro Tower Workstation Black
Model CT900-91A-ED11Part no. DT.C02AA.001EAN 193199461865
84 specifications
- ProcessorIntel® Xeon®
- Memory192 GB
- Storage1 TB
- GraphicsNVIDIA Quadro RTX 6000
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- Intel® Xeon®
- Memory
- 192 GB
- Storage
- 1 TB
- Graphics
- NVIDIA Quadro RTX 6000
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- CT900-91A-ED11
- Part number
- DT.C02AA.001
- EAN / UPC
- 193199461865
- Also known as
- Acer ConceptD CT900-91A-ED11 Intel® Xeon® 6148 192 GB DDR4-SDRAM 1 TB SSD NVIDIA Quadro RTX 6000 Windows 10 Pro Tower Workstation Black
Specifications
84 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 6148 |
| Processor cores | 20 |
| Processor threads | 40 |
| Processor boost frequency | 3.7 GHz |
| Processor frequency | 2.4 GHz |
| Processor cache | 27.5 MB |
| Processor cache type | L3 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 150 W |
| Tcase | 86 °C |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 2 |
| Processor socket | LGA 3647 (Socket P) |
| Stepping | H0 |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 192 GB |
| Maximum internal memory | 192 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro RTX 6000 |
| Discrete graphics card memory | 24 GB |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 4 |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 120489 |
| Processor code | SR3B6 |
| Processor package size | 76.0 x 56.5 mm |
| Scalability | S4S |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Conflict-Free processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200.6 mm |
| Depth | 622.3 mm |
| Height | 452 mm |
| Weight | 10 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
