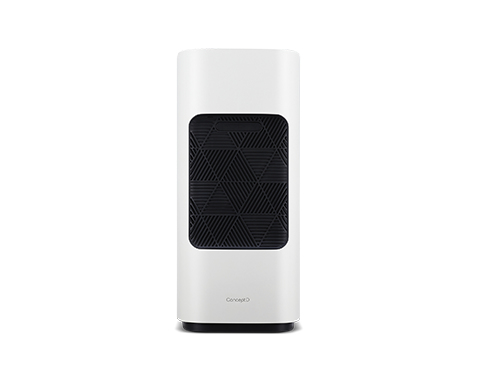

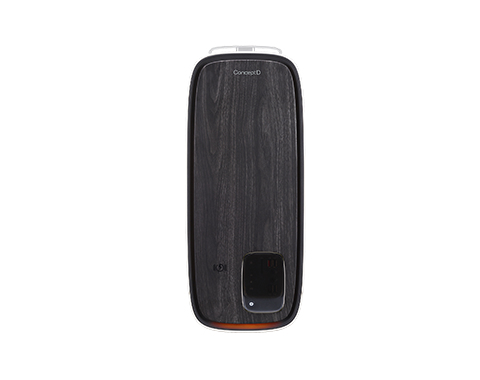

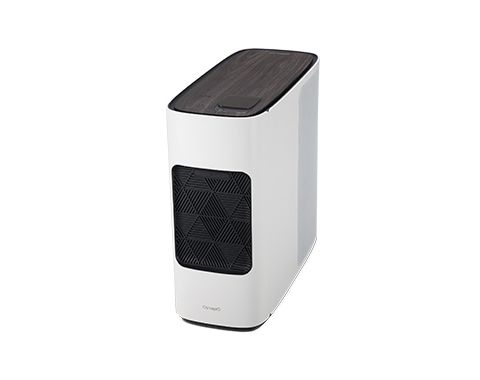

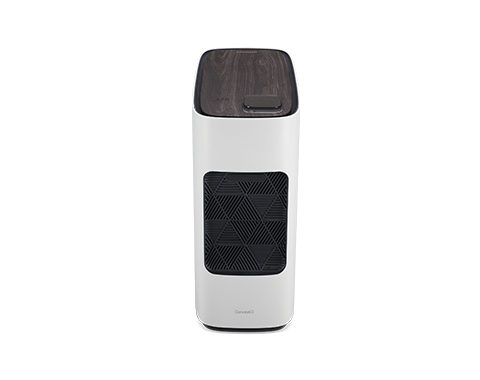

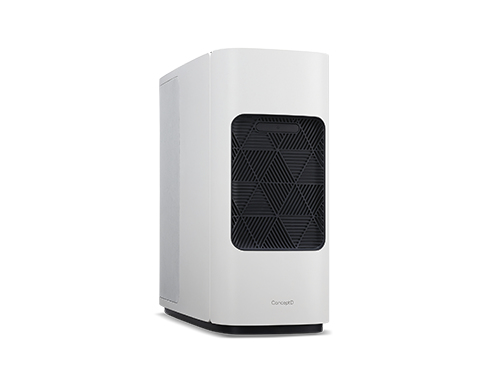

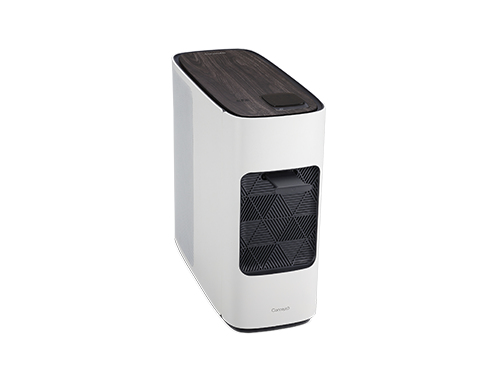

ConceptD 700 CT700-71A Intel Xeon E E-2226G
32 GB DDR4-SDRAM 512 GB SSD NVIDIA® Quadro® P4000 Windows 10 Pro Tower Workstation Black, Brown, White
Model CT700-71APart no. DT.C04EF.007EAN 4710180882056
102 specifications
- ProcessorIntel Xeon E
- Memory32 GB
- Storage512 GB
- GraphicsNVIDIA® Quadro® P4000
- SpeedWi-Fi 5 (802.11ac)
- TypeWorkstation
Overview
- Processor
- Intel Xeon E
- Memory
- 32 GB
- Storage
- 512 GB
- Graphics
- NVIDIA® Quadro® P4000
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Workstation
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- CT700-71A
- Part numbers
- DT.C04EF.007, DT.C04EF.008, DT.C04EK.003, DT.C04EK.001, DT.C04EK.002, DT.C04EF.00B +7 more
- EAN / UPC
- 4710180882056, 4710180882049, 4710886144601
- Also known as
- Acer ConceptD 700 CT700-71A Intel Xeon E E-2226G 32 GB DDR4-SDRAM 512 GB SSD NVIDIA® Quadro® P4000 Windows 10 Pro Tower Workstation Black, Brown, White
Specifications
102 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2226G |
| Processor cores | 6 |
| Processor threads | 6 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 80 W |
| Tcase | 73 °C |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® P4000 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel UHD Graphics P630 |
| Maximum on-board graphics card memory | 128 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E96 |
| On-board graphics card OpenGL version | 4.5 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Line-in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black, Brown, White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 191038 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204 mm |
| Depth | 476 mm |
| Height | 439 mm |
| Weight | 9 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
