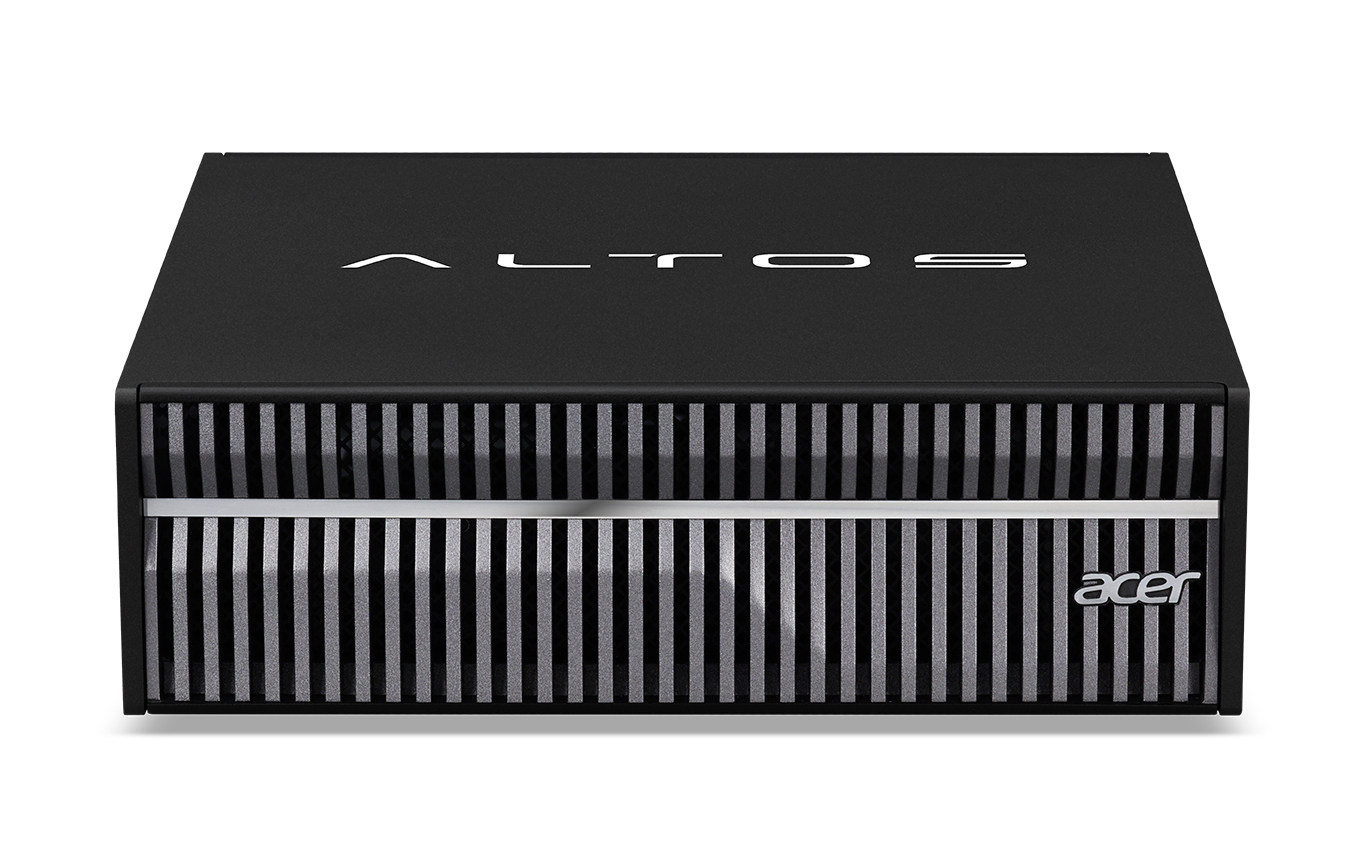

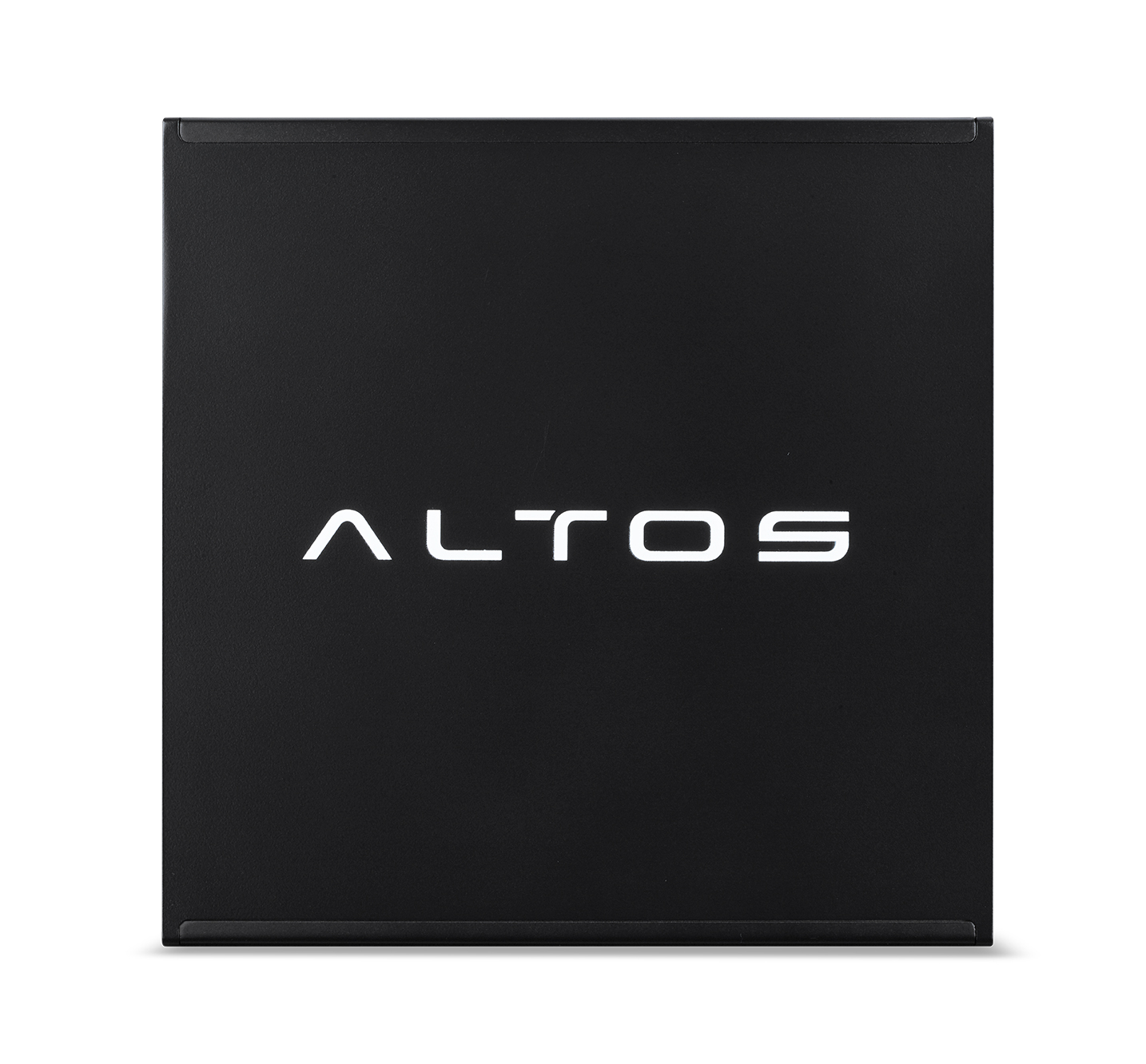

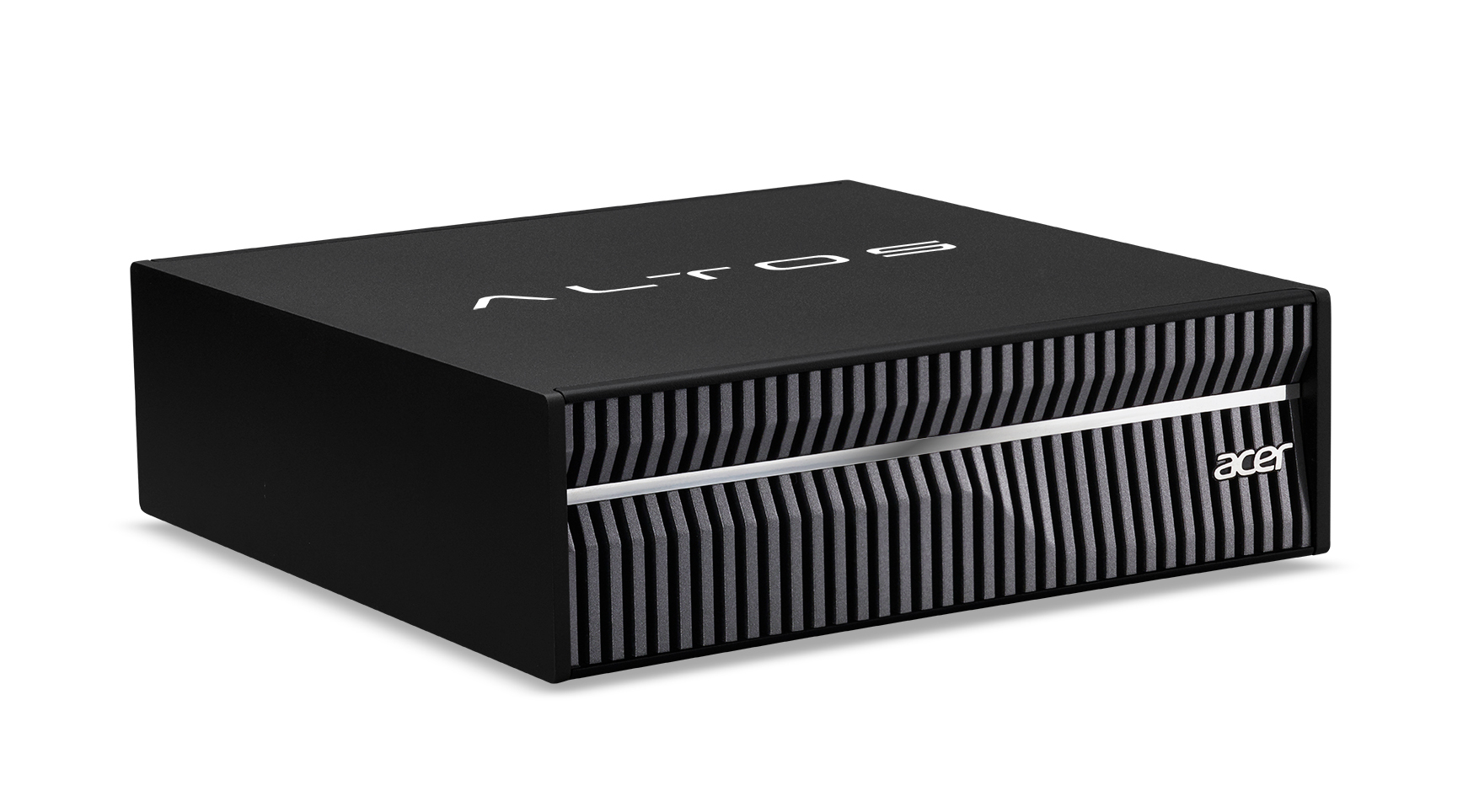

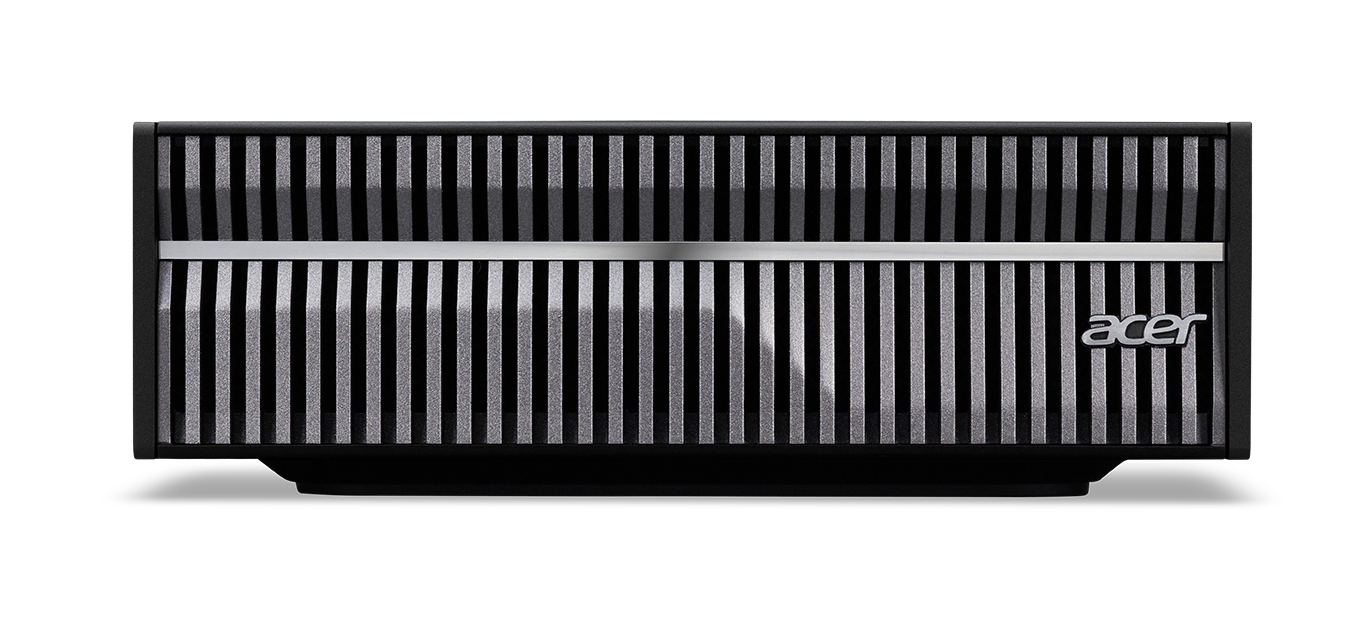

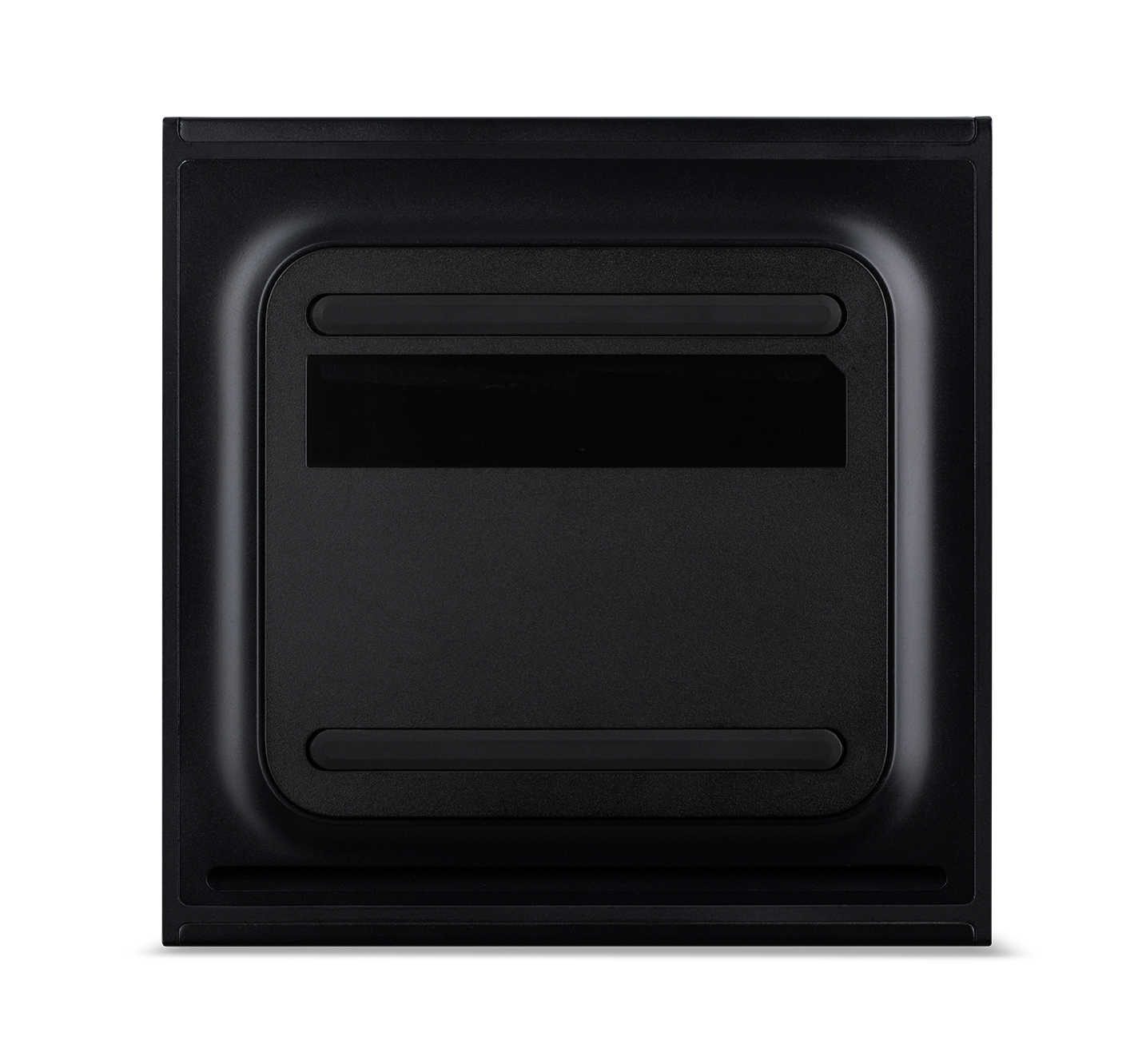

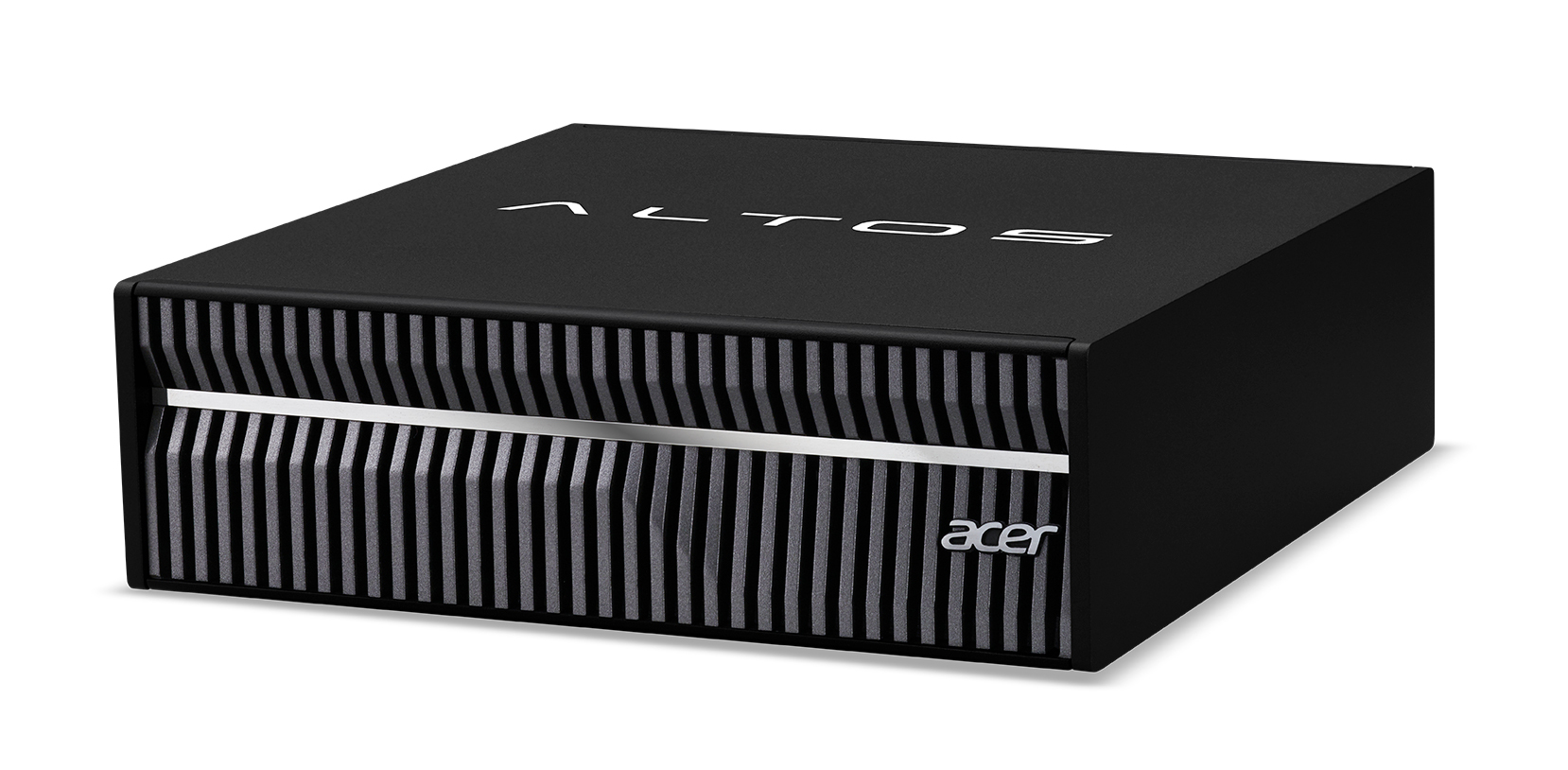

BG10 F1
Model BG10 F1Part no. DT.L1BEE.001EAN 4711474782144
45 specifications
- Memory128 GB
- Storage4 TB
- SpeedWi-Fi 7 (802.11be)
- TypeWorkstation
- OSDGX OS
- Weight1.5 kg
Overview
- Memory
- 128 GB
- Storage
- 4 TB
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Workstation
- OS
- DGX OS
- Weight
- 1.5 kg
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- BG10 F1
- Part number
- DT.L1BEE.001
- EAN / UPC
- 4711474782144, 4711474841520
- Also known as
- Acer Altos BrainSphere BG10 F1 128 GB LPDDR5x-SDRAM 4 TB SSD DGX OS Mini PC Workstation Black
Specifications
45 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | ARM |
| Processor cores | 20 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | LPDDR5x-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 4 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 4 TB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | NVIDIA Blackwell |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |

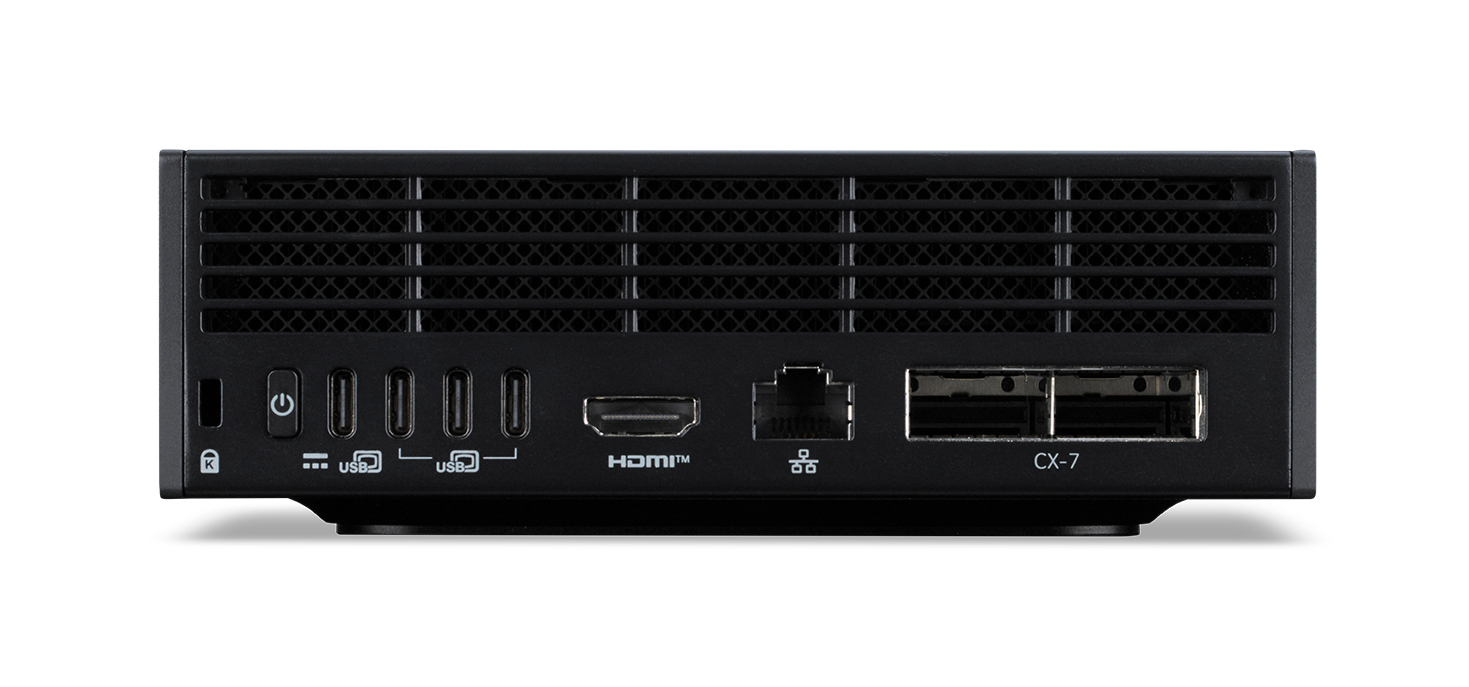

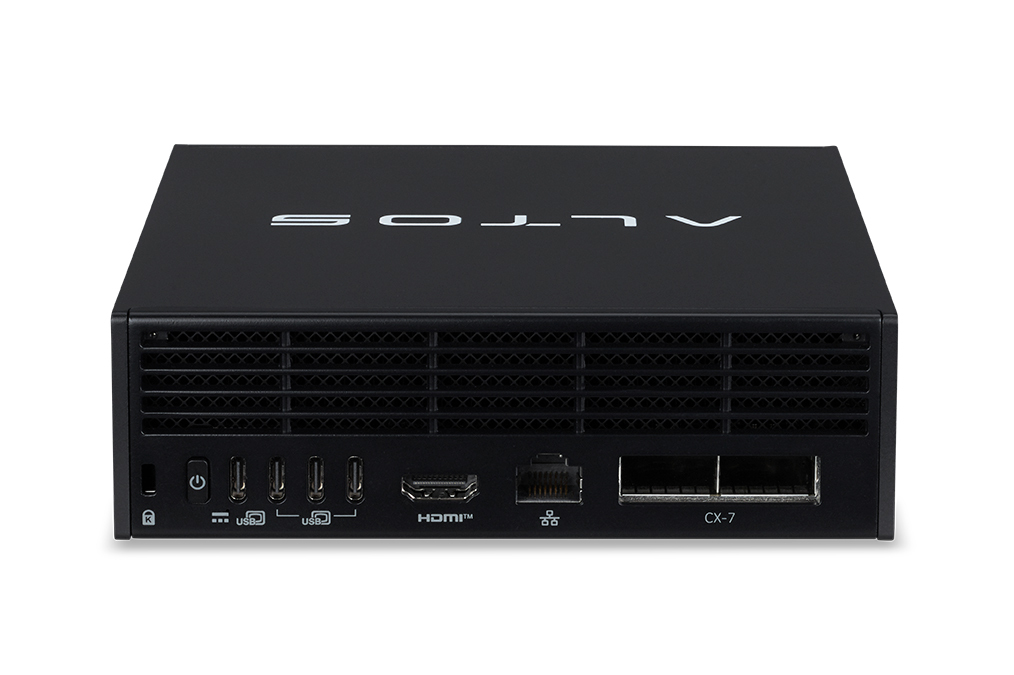

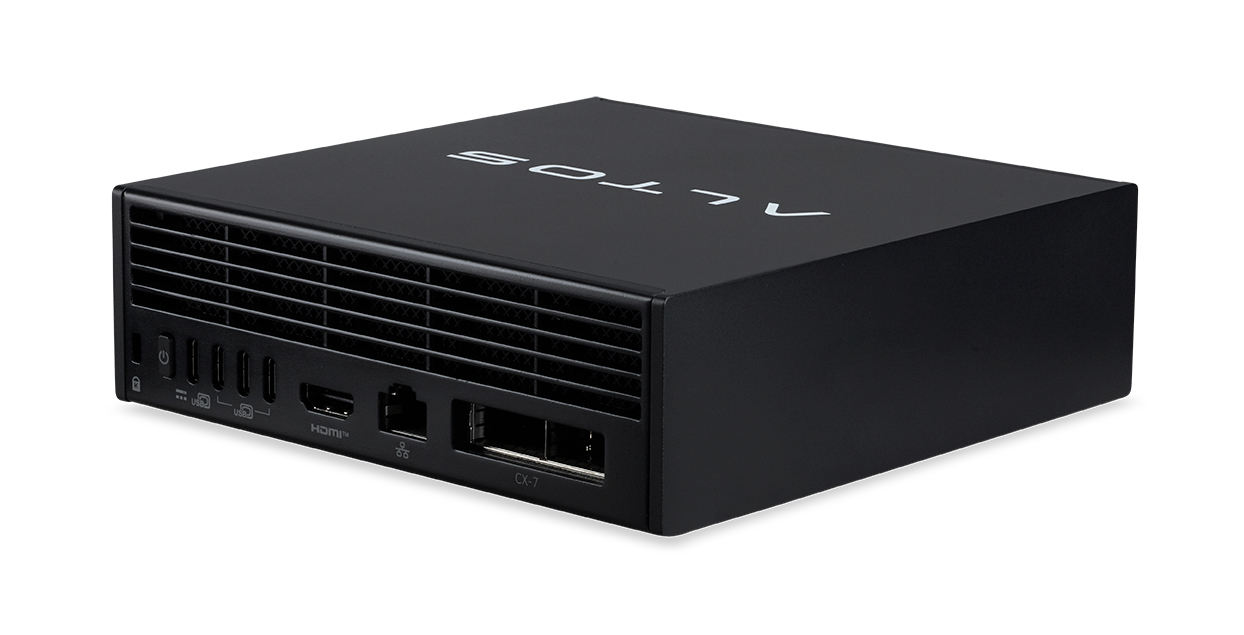

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1a |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 240 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 1.13 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | DGX OS |
| Bundled software | Altos aiGeni |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 50 mm |
| Weight | 1.5 kg |
