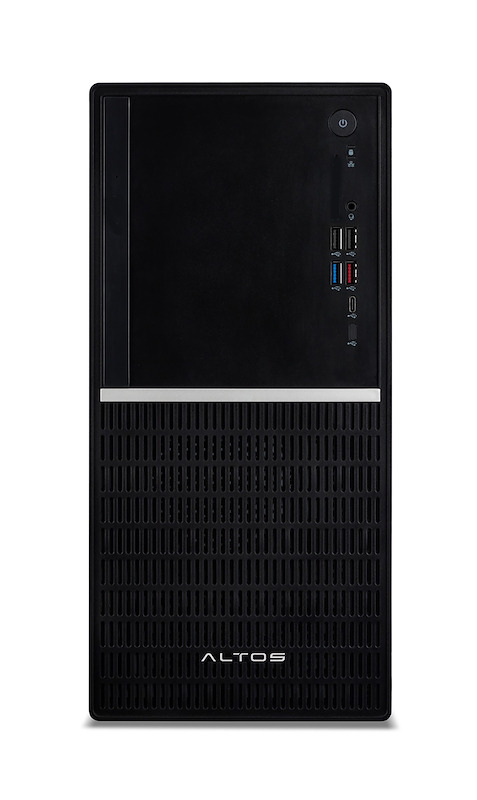

ATSP10_F10_SE Intel Core Ultra 5 225
32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Windows 11 Pro Education Desktop Workstation Black
Model ATSP10_F10_SEPart no. DT.L19ET.00UEAN 4711721137079
85 specifications
- ProcessorIntel Core Ultra 5
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA GeForce RTX 5060
- SpeedWi-Fi 6E (802.11ax)
- TypeWorkstation
Overview
- Processor
- Intel Core Ultra 5
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA GeForce RTX 5060
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Workstation
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- ATSP10_F10_SE
- Part number
- DT.L19ET.00U
- EAN / UPC
- 4711721137079
- Also known as
- Acer ATSP10_F10_SE Intel Core Ultra 5 225 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Windows 11 Pro Education Desktop Workstation Black
Specifications
85 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 225 |
| Processor cores | 10 |
| Processor threads | 10 |
| Processor boost frequency | 4.9 GHz |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core base frequency | 3.3 GHz |
| Efficient-core base frequency | 2.7 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | LGA 1851 (Socket V1) |
| Maximum turbo power | 121 W |
| Processor base power | 65 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Total processor performance up to | 23 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 4 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 192 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 5600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5060 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR7 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro Education |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 335 mm |
| Height | 370 mm |
| Weight | 15 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
