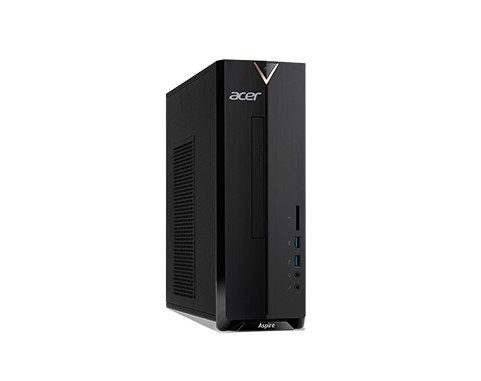

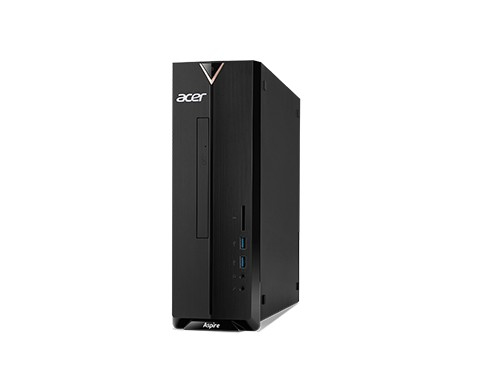

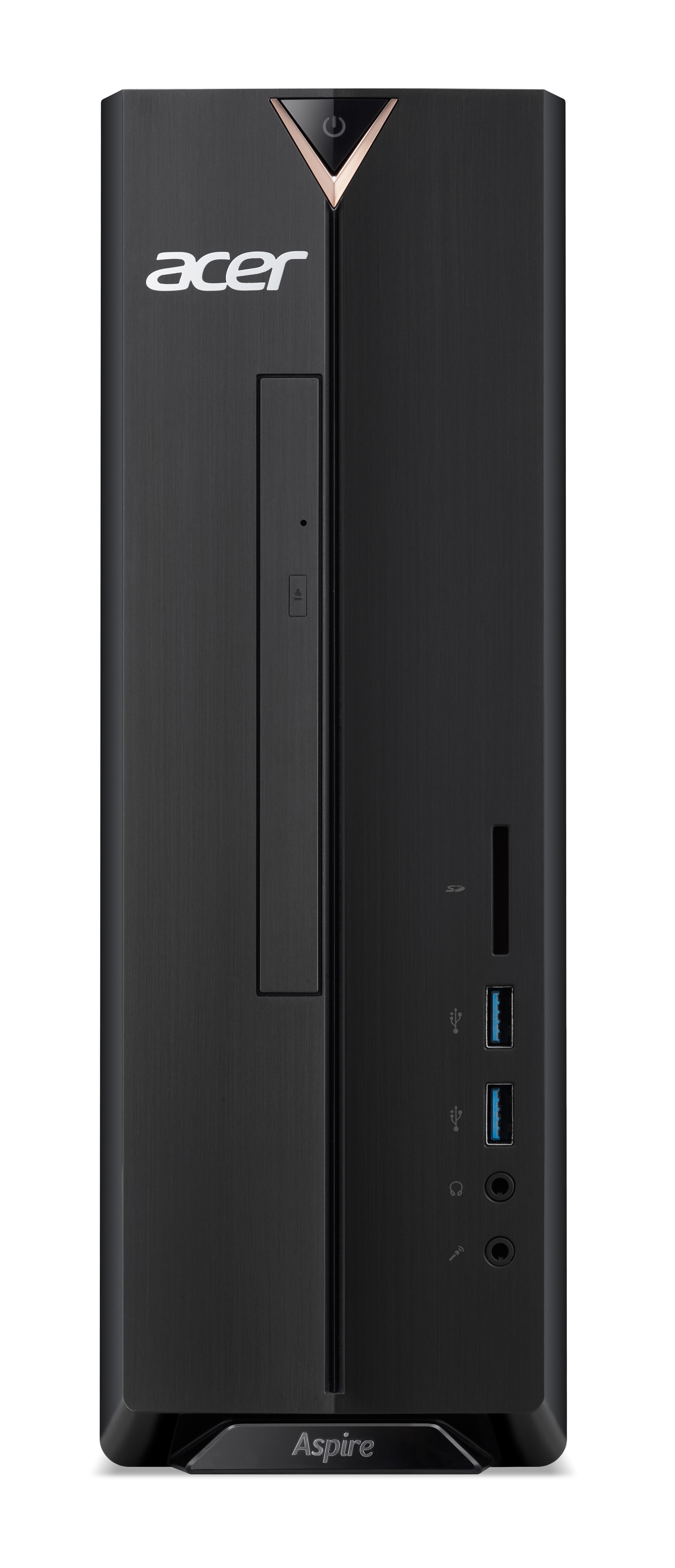

Aspire XC-830
Model Aspire XC-830Part no. DT.BDSEG.005
99 specifications
- ProcessorIntel® Pentium® Silver
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypePC
Overview
- Processor
- Intel® Pentium® Silver
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Aspire XC-830
- Part number
- DT.BDSEG.005
- Also known as
- Acer Aspire XC-830 Intel® Pentium® Silver J5040 8 GB DDR4-SDRAM 256 GB SSD Endless OS Desktop PC Black
Specifications
99 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® Silver |
| Processor model | J5040 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2 GHz |
| Processor cache | 4 MB |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Gemini Lake Refresh |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 6 |
| PCI Express configurations | 1x4+1x2, 4x1, 2x1+1x2+1x2 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1090 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 605 |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 250 MHz |
| On-board graphics card burst frequency | 800 MHz |
| On-board graphics card dynamic frequency (max) | 800 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3184 |
| On-board graphics card OpenGL version | 4.4 |
| Number of execution units | 18 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Line-in | Yes |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Endless OS |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 197304 |
| Processor package size | 25 x 24 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 330 mm |
| Height | 295 mm |
| Weight | 5.5 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
