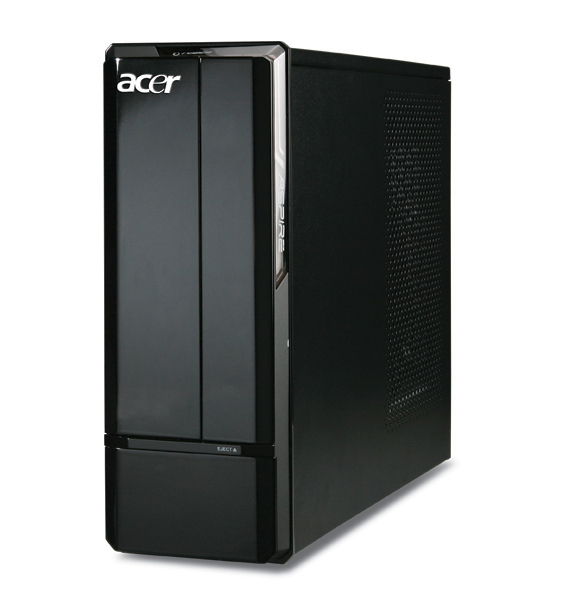

Aspire X3812
Model Aspire X3812Part no. 9J.H7E7Z.UYNEAN 4718235927516
95 specifications
- ProcessorIntel® Core™2 Duo
- Memory4 GB
- Storage640 GB
- GraphicsIntel® GMA X4500
- TypePC
- OSWindows 7 Home Premium
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 4 GB
- Storage
- 640 GB
- Graphics
- Intel® GMA X4500
- Type
- PC
- OS
- Windows 7 Home Premium
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Aspire X3812
- Part numbers
- 9J.H7E7Z.UYN, 98.HYF7Z.E1N, 98.HSF7A.VAN, 98.HYF7Z.ECN, 98.HUM7Z.T7N, 98.HSF7A.I7N +1 more
- EAN / UPC
- 4718235927516, 4718235928506, 4718235927325, 4718235926847 +1 more
- Also known as
- Acer Aspire X3812 Intel® Core™2 Duo E6300 4 GB DDR2-SDRAM 640 GB Intel® GMA X4500 Windows 7 Home Premium SFF PC
Specifications
95 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E6300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.86 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 61.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 167 M |
| Processing Die size | 111 mm² |
| CPU multiplier (bus/core ratio) | 7 |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 640 GB |
| Optical drive type | DVD±RW |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA X4500 |
| Maximum graphics card memory | 1.024 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 9 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power supply | 220 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27248 |
| Processor code | SLGW2 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio 5.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 352 mm |
| Height | 265 mm |
| Weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
