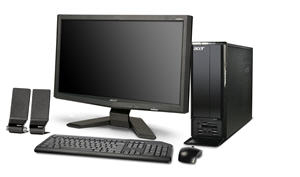

Aspire X1301-5F7Y OB 23''X
Model Aspire X1301-5F7Y OB 23''XPart no. 94.X5F7Y.C7NEAN 4718235924140
96 specifications
- Display58.4 cm (23")
- ProcessorIntel® Celeron® M
- Memory4 GB
- Storage320 GB
- GraphicsNVIDIA® GeForce® G210
- TypePC
Overview
- Display
- 58.4 cm (23")
- Processor
- Intel® Celeron® M
- Memory
- 4 GB
- Storage
- 320 GB
- Graphics
- NVIDIA® GeForce® G210
- Type
- PC
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Aspire X1301-5F7Y OB 23''X
- Part number
- 94.X5F7Y.C7N
- EAN / UPC
- 4718235924140
- Also known as
- Acer Aspire X1301-5F7Y OB 23''X Intel® Celeron® M 215 4 GB DDR2-SDRAM 320 GB NVIDIA® GeForce® G210 Windows 7 Home Premium SFF PC
Specifications
96 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® M |
| Processor model | 215 |
| Processor cores | 1 |
| Processor threads | 1 |
| Processor frequency | 1.33 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 32-bit |
| Processor series | Intel Celeron M 533 MHz FSB |
| Processor codename | Yonah |
| Thermal Design Power (TDP) | 27 W |
| Processor socket | Socket 479 |
| Processing Die size | 90 mm² |
| CPU multiplier (bus/core ratio) | 10 |
| Stepping | C0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Optical drive type | DVD-RW |
| HDD interface | SATA II |
| Card reader integrated | Yes |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® G210 |
| Discrete graphics card memory | 0.512 GB |
| Maximum graphics card memory | 1.791 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Wireless technology | 802.11 b/g/Draft-N |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 9 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| eSATA ports quantity | 1 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Mac compatibility | No |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 58.4 cm (23") |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Intel 64 | No |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 32240 |
| Processor code | SLA4L |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 265 mm |
| Height | 352 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Remote control included | No |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
