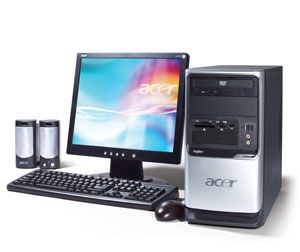

Aspire T660 & 19" Widescreen LCD

Model Aspire T660 & 19" Widescreen LCDPart no. 97.G8B7V.HHMEAN 4718235859022

88 specifications

Overview

Brand: Acer
Category: PCs/Workstations
Model: Aspire T660 & 19" Widescreen LCD
Part number: 97.G8B7V.HHM
EAN / UPC: 4718235859022
Also known as: Acer Aspire T660 & 19" Widescreen LCD Intel® Pentium® D 820 1 GB DDR2-SDRAM 250 GB AMD Radeon X1300 Windows XP Media Center Edition 2005 Tower PC

88 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® D
Processor model	820
Processor cores	2
Processor threads	2
Processor frequency	2.8 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	90 nm
Processor operating modes	64-bit
Processor series	Intel Pentium D 800 Series
Processor codename	Smithfield
Thermal Design Power (TDP)	95 W
Tcase	64.1 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	230 M
Processing Die size	206 mm²
CPU multiplier (bus/core ratio)	14
Processor core voltage (AC)	1.25 - 1.40 V
ECC supported by processor	No

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM

Specification	Value
Discrete graphics card model	AMD Radeon X1300
Maximum graphics card memory	0.256 GB

Specification	Value
Product type	PC

Specification	Value
Networking features	Ethernet/Fast Ethernet/Gigabit Ethernet

Specification	Value
Expansion slots	1x X16 PCI Express 3x PCI

Specification	Value
Chassis type	Tower

Specification	Value
Operating system installed	Windows XP Media Center Edition 2005
Bundled software	Symantec Norton AntiVirus 2006 (trial version), Adobe Acrobat Reader 7.0, Cyberlink Power DVD 6, NTI CD-Maker Gold, Self Burn Recovery, Acer Empowering Framework, Acer eRecovery Management, Acer eDataSecurity Management, Acer ePerformance Management, Acer e-Mode, Acer e-Console

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	27512
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
