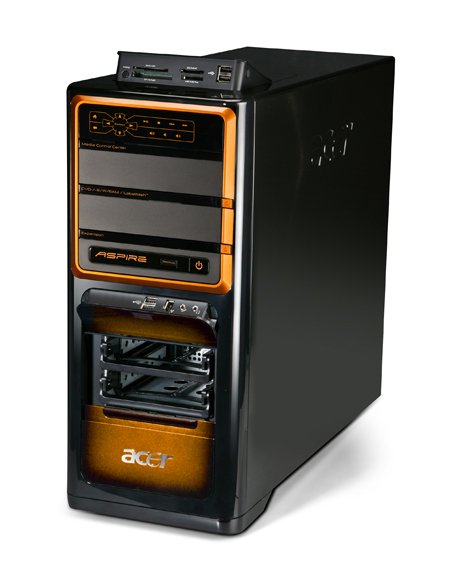

Acer Aspire M7720
Model Aspire M7720Part no. 91.S8W7S.TPPEAN 4718235908485
90 specifications
- ProcessorIntel® Core™ i7
- Memory6 GB
- Storage1.64 TB
- GraphicsAMD Radeon HD 4850
- TypePC
- OSWindows Vista Home Premium
Overview
- Processor
- Intel® Core™ i7
- Memory
- 6 GB
- Storage
- 1.64 TB
- Graphics
- AMD Radeon HD 4850
- Type
- PC
- OS
- Windows Vista Home Premium
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Aspire M7720
- Part numbers
- 91.S8W7S.TPP, 91.S8W7S.HPP, 92.S8K7N.F1P, 91.S8W7I.BPT, 92.S8W7S.CAP, 92.S8W7L.TNP +1 more
- EAN / UPC
- 4718235908485, 4718235911812, 4718235912390
- Also known as
- Acer Aspire M7720 Intel® Core™ i7 i7-920 6 GB DDR3-SDRAM 1.64 TB AMD Radeon HD 4850 Windows Vista Home Premium Tower PC
Specifications
90 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 |
| Processor model | i7-920 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 2.93 GHz |
| Processor frequency | 2.66 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 4.8 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-900 Desktop Series |
| Processor codename | Bloomfield |
| Thermal Design Power (TDP) | 130 W |
| Tcase | 67.9 °C |
| Number of QPI links | 1 |
| Processor socket | Socket B (LGA 1366) |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| CPU multiplier (bus/core ratio) | 20 |
| Stepping | C0 |
| Maximum internal memory supported by processor | 24 GB |
| Memory types supported by processor | DDR3 800/1066 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Triple-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.64 TB |
| Number of HDDs installed | 2 |
| Card reader integrated | Yes |
| HDD capacity (group 1) | 640 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | AMD Radeon HD 4850 |
| Maximum graphics card memory | 1.024 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 1 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Home Premium |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Processor ARK ID | 37147 |
| Processor code | SLBCH |
| Processor package size | 42.5 x 45.0 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio 7.1 |
