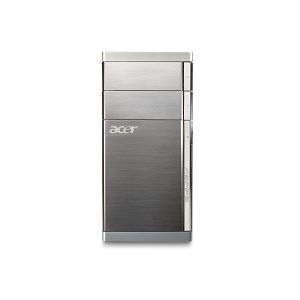

Aspire M5811

Model Aspire M5811Part no. PT.SDGE2.084EAN 4718235938116

119 specifications

Overview

Brand: Acer
Category: PCs/Workstations
Model: Aspire M5811
Part numbers: PT.SDGE2.084, PT.SDGE2.042, 92.FFW7M.TPN, PT.SDGE2.190, PT.SDGE2.057, PT.SDGE2.186 +13 more
EAN / UPC: 4718235938116, 4718235938123, 4712842665618, 4718235641436 +5 more
Also known as: Acer Aspire M5811 Intel® Core™ i7 i7-860 8 GB DDR3-SDRAM 1 TB NVIDIA® GeForce® GT 320 Windows 7 Home Premium Micro Tower PC Silver

119 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-860
Processor cores	4
Processor threads	8
Processor boost frequency	3.46 GHz
Processor frequency	2.8 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor front side bus	1333 MHz
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-800 Desktop Series
Processor codename	Lynnfield
Thermal Design Power (TDP)	95 W
Tcase	72.7 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	21
Platform	PC
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® GeForce® GT 320
Discrete graphics card memory	1 GB
Graphics card family	NVIDIA

Specification	Value
USB 2.0 ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	1
eSATA ports quantity	2
S/PDIF out port	Yes
Serial ports quantity	0
Parallel ports quantity	0

Specification	Value
Power supply	500 W

Specification	Value
Chassis type	Micro Tower
Product colour	Silver

Specification	Value
Operating system installed	Windows 7 Home Premium
Mac compatibility	No

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	41316
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
