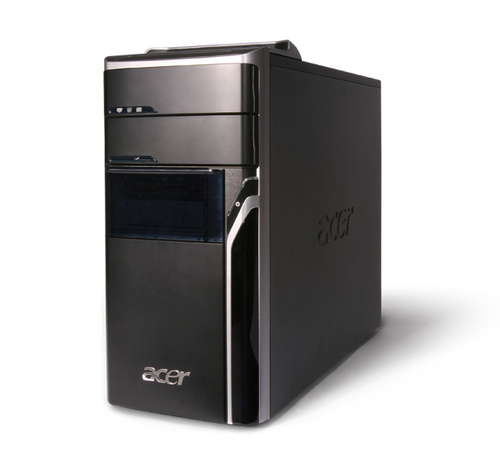

Acer Aspire M5620 - 1M7N - "VISTA"
Model Aspire M5620 - 1M7N - "VISTA"Part no. 91.N1M7N.ZYP
84 specifications
- ProcessorIntel® Core™2 Quad
- Memory3 GB
- Storage500 GB
- GraphicsAMD Radeon HD 2600 Pro
- TypePC
- OSWindows Vista Home Premium
Overview
- Processor
- Intel® Core™2 Quad
- Memory
- 3 GB
- Storage
- 500 GB
- Graphics
- AMD Radeon HD 2600 Pro
- Type
- PC
- OS
- Windows Vista Home Premium
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Aspire M5620 - 1M7N - "VISTA"
- Part number
- 91.N1M7N.ZYP
- Also known as
- Acer Aspire M5620 - 1M7N - "VISTA" Intel® Core™2 Quad Q6600 3 GB DDR2-SDRAM 500 GB AMD Radeon HD 2600 Pro Windows Vista Home Premium Tower PC
Specifications
84 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Quad |
| Processor model | Q6600 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 2.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Quad Q6000 Series |
| Processor codename | Kentsfield |
| Thermal Design Power (TDP) | 95, 105 |
| Tcase | B3=62.2; G0=71 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 582 M |
| Processing Die size | 286 mm² |
| CPU multiplier (bus/core ratio) | 9 |
| Processor core voltage (AC) | 0.85 - 1.5 V |
| Stepping | G0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | AMD Radeon HD 2600 Pro |
| Maximum graphics card memory | 0.5 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 1 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Home Premium |
| Bundled software | Intel Viiv software, Intel Matrix Storage Manager, Adobe Acrobat Reader, eSobi, Yahoo/Acer ToolBar, Symantec NIS 2007, Acer Arcade Live, NTI CD/DVD Maker Gold, NTI Backup Now!, Empowering Technology for Aspire |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 29765 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio 7.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 441.5 mm |
| Height | 367 mm |
