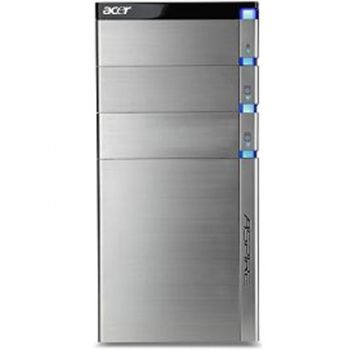

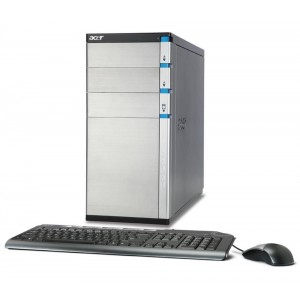

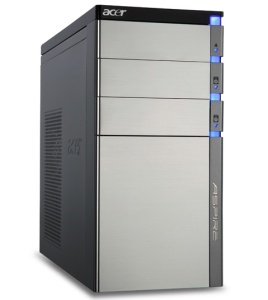

Aspire M5400
Model Aspire M5400Part no. PT.SE1E2.051EAN 4717276128739
104 specifications
- ProcessorIntel® Pentium® D
- Memory4 GB
- Storage1 TB
- TypePC
- OSWindows 7 Home Premium
- Weight18.5 kg
Overview
- Processor
- Intel® Pentium® D
- Memory
- 4 GB
- Storage
- 1 TB
- Type
- PC
- OS
- Windows 7 Home Premium
- Weight
- 18.5 kg
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Aspire M5400
- Part numbers
- PT.SE1E2.051, PT.SE1E2.029, PT.SE1E2.017, PT.SE1E2.028
- EAN / UPC
- 4717276128739, 4712842809418
- Also known as
- Acer Aspire M5400 Intel® Pentium® D 945 4 GB DDR3-SDRAM 1 TB Windows 7 Home Premium Tower PC Silver
Specifications
104 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® D |
| Processor model | 945 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 3.4 GHz |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium D 900 Series |
| Processor codename | Presler |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 63.4 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 376 M |
| Processing Die size | 162 mm² |
| CPU multiplier (bus/core ratio) | 17 |
| Platform | PC |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| HDD interface | SATA |
| Card reader integrated | Yes |
| Compatible memory cards | CF, Memory Stick (MS), MicroDrive, miniSD, MMC, MS Duo, MS PRO, MS PRO Duo, xD |
| Floppy drive installed | No |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD 880G |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 7 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power requirements | 100-240V |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Processor ARK ID | 27520 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 423 mm |
| Height | 379 mm |
| Weight | 18.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Remote control included | No |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, 802.3u, 802.3ab |
| Certification | FCC, CE, Nemko |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
