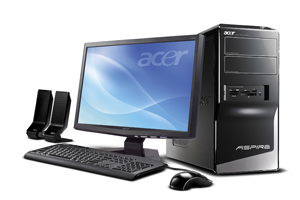

Acer Aspire M5201
Model Aspire M5201Part no. 92.LVM7S.BCPEAN 4718235914028
87 specifications
- Display55.9 cm (22")
- ProcessorIntel® Pentium® D
- Memory6 GB
- Storage1 TB
- GraphicsNVIDIA® GeForce® GT 130
- TypePC
Overview
- Display
- 55.9 cm (22")
- Processor
- Intel® Pentium® D
- Memory
- 6 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® GeForce® GT 130
- Type
- PC
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Aspire M5201
- Part numbers
- 92.LVM7S.BCP, 91.L2WE1.U1P, 9C.L2WEP.U1P, 9C.LOR71.UAP, 91.L2F7S.HPP, 91.L2R7S.TPP
- EAN / UPC
- 4718235914028, 4718235913991, 4718235915865, 4718235915001 +1 more
- Also known as
- Acer Aspire M5201 Intel® Pentium® D 805 6 GB DDR2-SDRAM 1 TB NVIDIA® GeForce® GT 130 Windows Vista Home Premium Tower PC
Specifications
87 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® D |
| Processor model | 805 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.66 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 90 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium D 800 Series |
| Processor codename | Smithfield |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 64.1 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 230 M |
| Processing Die size | 206 mm² |
| CPU multiplier (bus/core ratio) | 20 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| HDD interface | SATA |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | NVIDIA® GeForce® GT 130 |
| Discrete graphics card memory | 0.768 GB |
| Maximum graphics card memory | 2.175 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Home Premium |
| Trial software | Microsoft Office Trial 2007 (60D), Free Antivirus Trial Version, eSobi v2,0 Lite Trial (90D) |
| Bundled software | Microsoft Works 8.5, Adobe Reader 7.0, Acer Arcade Live, Quick Burning (NTI CD-Maker Gold), Acer Empowering Technology |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 55.9 cm (22") |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Processor ARK ID | 27511 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio 7.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 441.5 mm |
| Height | 367 mm |
