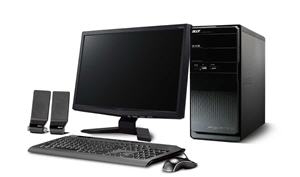

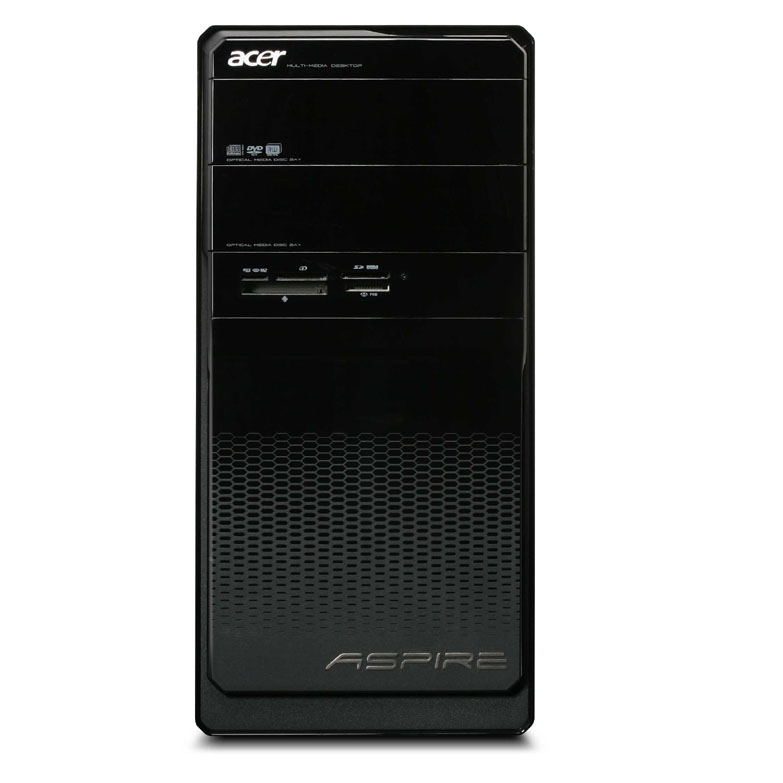

Aspire M3802
Model Aspire M3802Part no. 91.QSF7A.HANEAN 4718235928681
95 specifications
- Display50.8 cm (20")
- ProcessorIntel® Core™2 Quad
- Memory4 GB
- Storage1 TB
- GraphicsIntel® GMA X4500
- TypePC
Overview
- Display
- 50.8 cm (20")
- Processor
- Intel® Core™2 Quad
- Memory
- 4 GB
- Storage
- 1 TB
- Graphics
- Intel® GMA X4500
- Type
- PC
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Aspire M3802
- Part numbers
- 91.QSF7A.HAN, 91.QZF7T.FAN, PT.SC5E2.033, PT.SC5E2.039, PT.SC5E2.037, PT.SC5E2.038 +5 more
- EAN / UPC
- 4718235928681, 4712842887508, 4718235925819
- Also known as
- Acer Aspire M3802 Intel® Core™2 Quad Q8300 4 GB DDR2-SDRAM 1 TB Intel® GMA X4500 Windows 7 Home Premium Midi Tower PC Black
Specifications
95 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Quad |
| Processor model | Q8300 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 2.5 GHz |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Quad Q8000 Series |
| Processor codename | Yorkfield |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 71.4 °C |
| Processor socket | LGA 775 + AM2/2+ |
| Number of Processing Die Transistors | 456 M |
| Processing Die size | 164 mm² |
| CPU multiplier (bus/core ratio) | 7.5 |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory clock speed | 800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD-RW |
| HDD interface | SATA |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS Pro, SD, xD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | Intel® GMA X4500 |
| Maximum graphics card memory | 1.024 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 250 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Bundled software | Acer eRecovery Management, Acer Arcade Deluxe, Microsoft Office 2007 Trial with Microsoft Works 8.5, eSobi, McAfee Internet Security Suite 2009 Trial, Adobe Reader, MyWinLocker, Nero Essentials, Oberon GameZone |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 50.8 cm (20") |
| Display | P205H TFT |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 39107 |
| Processor code | SLGUR |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 417.6 mm |
| Height | 375.5 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, CCC, Nemko, CB, Bauart |
