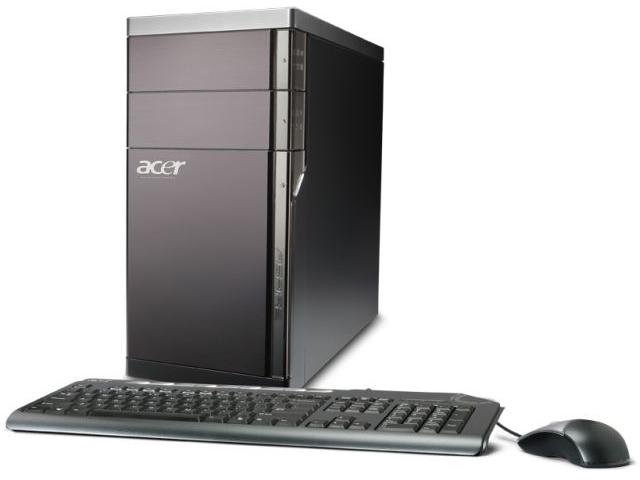

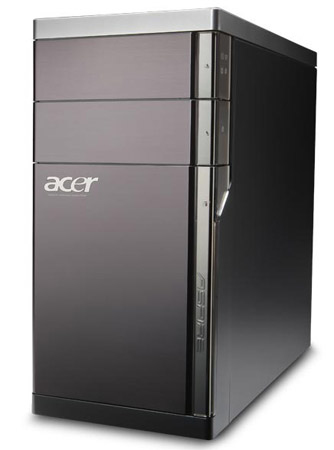

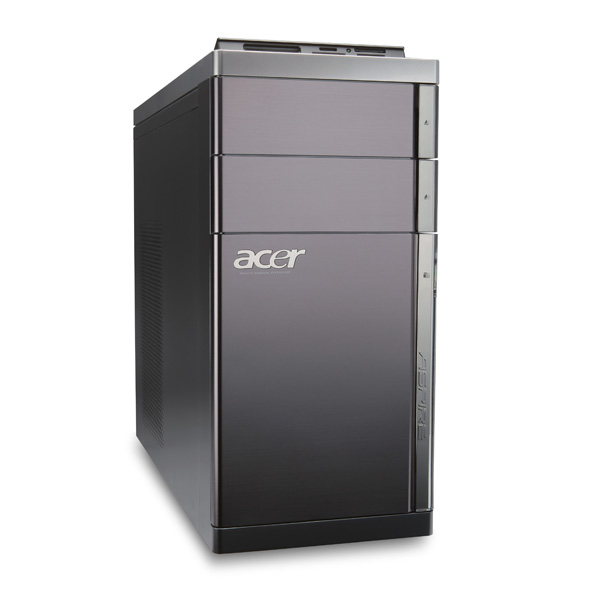

Acer AS M5811

Model AS M5811Part no. PT.SDGE2.087

135 specifications

ProcessorIntel® Core™ i3
Memory6 GB
Storage1 TB
GraphicsNVIDIA® GeForce® GT 330
TypePC
OSWindows 7 Home Premium

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 6 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® GT 330
Type: PC
OS: Windows 7 Home Premium

Brand: Acer
Category: PCs/Workstations
Model: AS M5811
Part numbers: PT.SDGE2.087, PT.SDGE2.140
Also known as: Acer Aspire AS M5811 Intel® Core™ i3 i3-530 6 GB DDR3-SDRAM 1 TB NVIDIA® GeForce® GT 330 Windows 7 Home Premium Tower PC Black

Specifications

135 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel® Core™ i3
Processor model	i3-530
Processor cores	2
Processor threads	4
Processor frequency	2.93 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-500 Desktop Series
Processor codename	Clarkdale
Thermal Design Power (TDP)	73 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	22
Platform	PC
Stepping	C2
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	6 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Number of HDDs installed	1
HDD interface	SATA
Card reader integrated	Yes
Compatible memory cards	CF, Memory Stick (MS), miniSD, MMC, MS Duo, MS PRO, SD, xD
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 330
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz
Maximum graphics card memory	2.048 GB
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H57 Express
Audio output channels	7.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BASE-T(X)
Wi-Fi	Yes
Modem speed	56 Kbit/s
Wake-on-LAN ready	Yes
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	1
S/PDIF out port	Yes
SmartCard slot	No
Serial ports quantity	0
Parallel ports quantity	0
Modem (RJ-11) ports	1

Expansion slots

Specification	Value
PCI Express x1 slots	1
PCI Express x4 slots	1
PCI Express x16 slots	1

Power

Specification	Value
Power supply	500 W

Design

Specification	Value
Chassis type	Tower
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Compatible operating systems	Windows 7
Mac compatibility	No

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	46472
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Dolby Home Theater 5
Audio formats supported	AAC, MP3

Weight & dimensions

Specification	Value
Width	180 mm
Depth	423 mm
Height	379 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Remote control included	No

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Certification	FCC, CE, BSMI, CB

Other features

Specification	Value
TV tuner integrated	No
