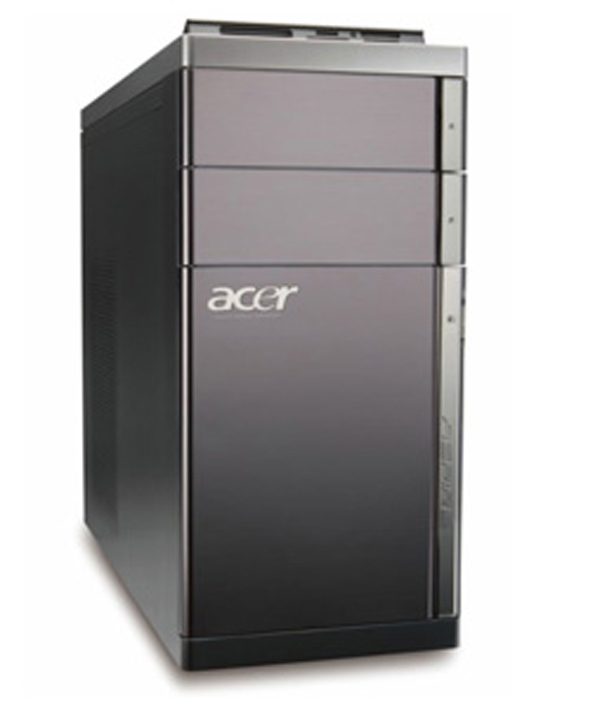

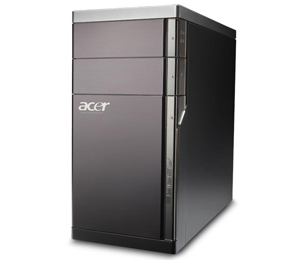

Acer AS AM5800

Model AS AM5800Part no. PT.SC4E2.003

107 specifications

ProcessorIntel® Core™2 Quad
Memory8 GB
Storage1 TB
GraphicsNVIDIA® GeForce® GT 230
TypePC
OSWindows 7 Home Premium

See all specifications

Overview

Processor: Intel® Core™2 Quad
Memory: 8 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® GT 230
Type: PC
OS: Windows 7 Home Premium

Brand: Acer
Category: PCs/Workstations
Model: AS AM5800
Part number: PT.SC4E2.003
Also known as: Acer Aspire AS AM5800 Intel® Core™2 Quad Q9300 8 GB DDR3-SDRAM 1 TB NVIDIA® GeForce® GT 230 Windows 7 Home Premium Desktop PC Black

Specifications

107 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Quad
Processor model	Q9300
Processor cores	4
Processor threads	4
Processor frequency	2.5 GHz
Processor cache	6 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	Yes
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Quad Q9000 Series for Desktop
Processor codename	Yorkfield
Thermal Design Power (TDP)	95 W
Tcase	71.4 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	456 M
Processing Die size	164 mm²
CPU multiplier (bus/core ratio)	7.5
Platform	PC
Stepping	M1
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	4 x 2 GB
Memory slots	4x DIMM

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Number of HDDs installed	1
HDD interface	SATA
Card reader integrated	Yes
Compatible memory cards	CF, Memory Stick (MS), MicroDrive, MMC, MS Duo, MS PRO, MS PRO Duo, MS Pro-HG, SD, xD
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® GeForce® GT 230
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	PC
Audio output channels	7.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BASE-T(X)
Wi-Fi	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	1

Expansion slots

Specification	Value
PCI Express x1 slots	1
PCI Express x16 slots	1

Power

Specification	Value
Power supply	500 W

Design

Specification	Value
Chassis type	Desktop
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Compatible operating systems	Windows XP/Vista/7
Mac compatibility	No

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	33922
Processor code	SLAWE
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio
Audio formats supported	AAC, MP3

Weight & dimensions

Specification	Value
Width	180 mm
Depth	443 mm
Height	373 mm

Packaging content

Specification	Value
Remote control included	No

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Other features

Specification	Value
TV tuner integrated	No
