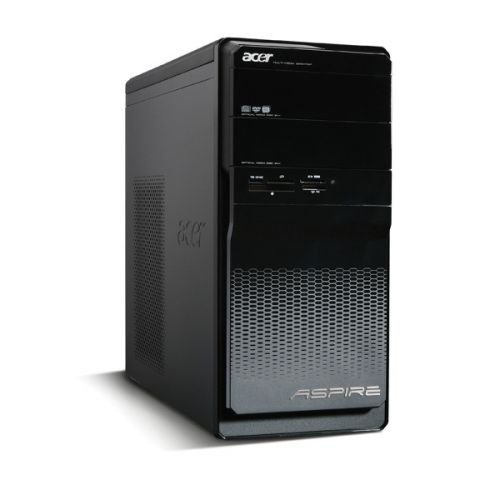

Aspire AM3300-E1222 Intel Pentium G 620
4 GB DDR2-SDRAM 750 GB AMD Radeon HD 3200 Windows 7 Home Premium Tower PC Black
Model AM3300-E1222Part no. PT.SBT02.001
116 specifications
- ProcessorIntel Pentium G
- Memory4 GB
- Storage750 GB
- GraphicsAMD Radeon HD 3200
- TypePC
- OSWindows 7 Home Premium
Overview
- Processor
- Intel Pentium G
- Memory
- 4 GB
- Storage
- 750 GB
- Graphics
- AMD Radeon HD 3200
- Type
- PC
- OS
- Windows 7 Home Premium
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- AM3300-E1222
- Part number
- PT.SBT02.001
- Also known as
- Acer Aspire AM3300-E1222 Intel Pentium G 620 4 GB DDR2-SDRAM 750 GB AMD Radeon HD 3200 Windows 7 Home Premium Tower PC Black
Specifications
116 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium G |
| Processor model | 620 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.6 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium G600 Series for Desktop |
| Processor codename | Sandy Bridge |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 69.1 °C |
| PCI Express slots version | 2.0 |
| Processor socket | LGA 1155 (Socket H2) |
| Number of Processing Die Transistors | 169 M |
| Processing Die size | 135 mm² |
| CPU multiplier (bus/core ratio) | 26 |
| Platform | PC |
| Stepping | N0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3 1066 |
| Memory bandwidth supported by processor (max) | 17 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory clock speed | 1066 MHz |
| Memory channels | Double-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 750 GB |
| Optical drive type | DVD Super Multi DL |
| HDD interface | SATA |
| Card reader integrated | Yes |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | AMD Radeon HD 3200 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 850 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum graphics card memory | 0.5 GB |
| Graphics card family | AMD |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
| DC-in jack | Yes |
| Audio input | 6 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Mac compatibility | No |
| Bundled software | - Acer eRecovery Management - Acer GameZone - Acer Arcade Deluxe - Microsoft Office 2007 Trial with Microsoft Works - eSobi - McAfee Internet Security Suite Trial - Adobe Reader - CyberLink PowerDirector 4 DE - CyberLink MediaShow DEX - MyWinLocker - NTI Media Maker |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 53480 |
| Processor code | SL8AB |
| Processor package size | 37.5 mm |
| Supported instruction sets | SSE4.1/4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system direct 3D sound | Yes |
| Audio system | Dolby |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 417.6 mm |
| Height | 375.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| Remote control included | No |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, BSMI, CCC, MET, CB |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
