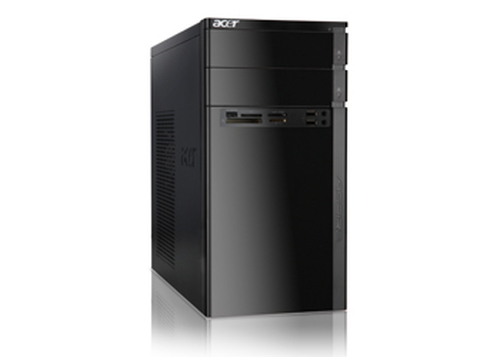

Acer 985 - EZ011

Model 985 - EZ011Part no. DT.SJQEZ.011

155 specifications

ProcessorIntel® Core™ i5
Memory8 GB
Storage1 TB
GraphicsAMD Radeon HD 7570
TypePC
OSWindows 7 Home Premium

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 1 TB
Graphics: AMD Radeon HD 7570
Type: PC
OS: Windows 7 Home Premium

Brand: Acer
Category: PCs/Workstations
Model: 985 - EZ011
Part number: DT.SJQEZ.011
Also known as: Acer Aspire 985 - EZ011 Intel® Core™ i5 i5-3470 8 GB DDR3-SDRAM 1 TB AMD Radeon HD 7570 Windows 7 Home Premium Tower PC Black

Specifications

155 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3470
Processor cores	4
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	3.2 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3400 Desktop series
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	77 W
Tcase	67.4 °C
PCI Express configurations	1x16, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	32
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3 1333/1600
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory channels	Dual-channel
Memory slots (available)	4

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD±RW
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Number of SSDs installed	0
Card reader integrated	Yes
Compatible memory cards	CF, CF+, Memory Stick (MS), miniSD, MMC, MS Duo, MS PRO, MS PRO Duo, SD, xD
Supported HDD interfaces	Serial ATA

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	AMD Radeon HD 7570
Discrete graphics card memory	1 GB
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2500
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x152
Graphics card family	AMD, Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® B75 Express

Optical drive

Specification	Value
Optical drives quantity	1
Media types supported	DVD-RAM/±R/±RW

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Bluetooth	No
Internal modem	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Ethernet interface type	Gigabit Ethernet
Fibre Channel	No
Networking features	LAN

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Thunderbolt ports quantity	0
DisplayPorts quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Line-in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
eSATA ports quantity	0
S/PDIF out port	No
SmartCard slot	No
Serial ports quantity	0
Parallel ports quantity	0
Modem (RJ-11) ports	0
COM ports quantity	0
HDMI	Yes
USB ports quantity	12
eSATA/USB 2.0 ports quantity	0
USB 1.1 ports quantity	0

Expansion slots

Specification	Value
PCI Express x1 slots	3
PCI Express x4 slots	0
PCI Express x8 slots	0
PCI Express x16 slots	1
Mini PCI Express slots	0
PCI slots	0
AGP x4 slots	0
AGP x8 slots	0

Power

Specification	Value
Power supply	300 W

Design

Specification	Value
Chassis type	Tower
Placement supported	Vertical
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Bundled software	Microsoft Office Starter Bing Bar Windows Live Essentials

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	68316
Processor package size	37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Speakers	No

Weight & dimensions

Specification	Value
Width	180 mm
Depth	402 mm
Height	379 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
TV tuner integrated	No
