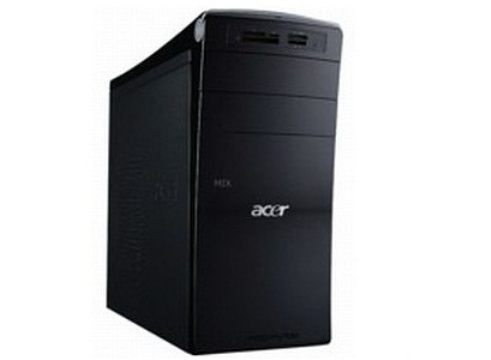

Acer Aspire 985 Intel® Core™ i5 i5-3450

8 GB DDR3-SDRAM 2 TB NVIDIA® GeForce® GT 620 Windows 7 Home Premium Desktop PC Black

Model 985Part no. DT.SJQEH.010EAN 4712196328382

139 specifications

Overview

Brand: Acer
Category: PCs/Workstations
Model: 985
Part numbers: DT.SJQEH.010, DT.SJQEH.014, DT.SJQME.011, DT.SJQEH.009, DT.SJQSA.014, DT.SJQEB.001 +3 more
EAN / UPC: 4712196328382, 4712196313784, 4712196129712, 4712196129699 +1 more
Also known as: Acer Aspire 985 Intel® Core™ i5 i5-3450 8 GB DDR3-SDRAM 2 TB NVIDIA® GeForce® GT 620 Windows 7 Home Premium Desktop PC Black

139 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3450
Processor cores	4
Processor threads	4
Processor boost frequency	3.5 GHz
Processor frequency	3.1 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3400 Desktop series
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	77 W
Tcase	67.4 °C
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	31
Maximum number of SMP processors	1
Platform	PC
Stepping	E1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	2 TB
Optical drive type	DVD±RW
Number of HDDs installed	1
HDD capacity	2 TB
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	CF, CF+, Memory Stick (MS), miniSD, MMC, MS Duo, MS PRO, MS PRO Duo, SD, xD

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 620
Discrete graphics card memory	2 GB
Number of discrete graphics cards	1
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2500
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x152
Graphics card family	Intel, NVIDIA

Specification	Value
Product type	PC
Motherboard chipset	Intel® B75 Express

Specification	Value
Optical drives quantity	1

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Networking features	Gigabit Ethernet

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
DC-in jack	Yes
Serial ports quantity	0
Parallel ports quantity	0
HDMI	Yes

Specification	Value
PCI Express x1 slots	3
PCI Express x16 slots	1

Specification	Value
Power supply	300 W

Specification	Value
Chassis type	Desktop
Product colour	Black

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Mac compatibility	No

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65511
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
