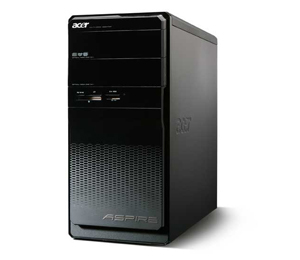

Acer Aspire 870 Intel® Core™ i5 i5-650

4 GB DDR3-SDRAM 500 GB NVIDIA® GeForce® 310 Windows 7 Home Premium Small Desktop PC Black

Model 870Part no. PT.SE4E2.029

136 specifications

ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNVIDIA® GeForce® 310
TypePC
OSWindows 7 Home Premium

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: NVIDIA® GeForce® 310
Type: PC
OS: Windows 7 Home Premium

Brand: Acer
Category: PCs/Workstations
Model: 870
Part number: PT.SE4E2.029
Also known as: Acer Aspire 870 Intel® Core™ i5 i5-650 4 GB DDR3-SDRAM 500 GB NVIDIA® GeForce® 310 Windows 7 Home Premium Small Desktop PC Black

Specifications

136 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-650
Processor cores	2
Processor threads	4
Processor boost frequency	3.46 GHz
Processor frequency	3.2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-600 Desktop Series
Processor codename	Clarkdale
Thermal Design Power (TDP)	73 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	24
Platform	PC
Stepping	C2
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory slots	4x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD-RW
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 310
Discrete graphics card memory	0.512 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Bluetooth	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Thunderbolt ports quantity	0
DisplayPorts quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
eSATA ports quantity	0
SmartCard slot	No
Serial ports quantity	0
Parallel ports quantity	0
Modem (RJ-11) ports	0
COM ports quantity	0

Design

Specification	Value
Chassis type	Small Desktop
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Mac compatibility	No
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43546
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	180 mm
Depth	418 mm
Height	376 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Multimedia

Specification	Value
Built-in camera	No

Other features

Specification	Value
TV tuner integrated	No
