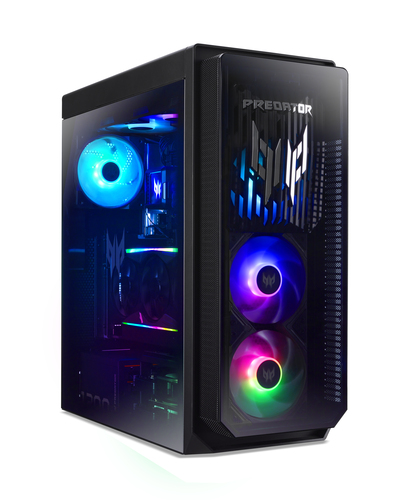

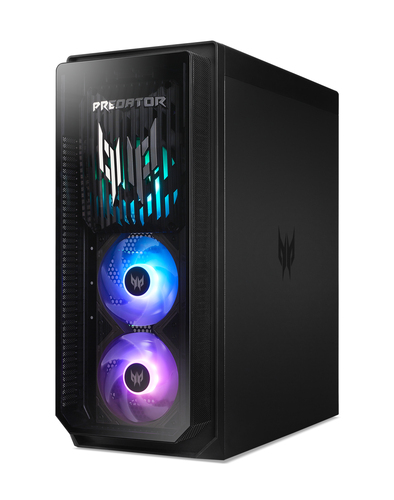

660 IU7K65812
Model 660 IU7K65812Part no. DG.E4DEH.006EAN 4711474340948
76 specifications
- ProcessorIntel Core Ultra 7
- Memory32 GB
- Storage2 TB
- GraphicsNVIDIA GeForce RTX 5080
- SpeedWi-Fi 7 (802.11be)
- TypePC
Overview
- Processor
- Intel Core Ultra 7
- Memory
- 32 GB
- Storage
- 2 TB
- Graphics
- NVIDIA GeForce RTX 5080
- Speed
- Wi-Fi 7 (802.11be)
- Type
- PC
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- 660 IU7K65812
- Part number
- DG.E4DEH.006
- EAN / UPC
- 4711474340948
- Also known as
- Acer Predator Orion 7000 660 IU7K65812 Intel Core Ultra 7 265KF 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5080 Windows 11 Home Tower PC Liquid cooling system
Specifications
76 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 265KF |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor boost frequency | 5.5 GHz |
| Processor frequency | 3.9 GHz |
| Processor cache | 30 MB |
| Processor cache type | L3 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Memory channels | Dual-channel |
| Memory data transfer rate | 6000 MT/s |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA GeForce RTX 5080 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR7 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel Z890 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

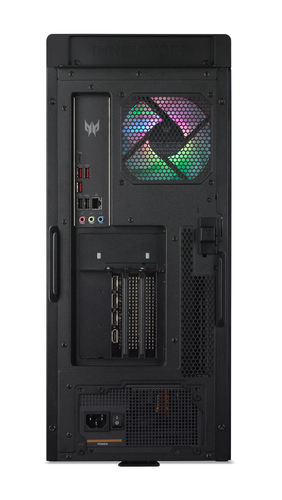

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt 4 ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x4 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 1200 W |
| 80 PLUS certification | 80 PLUS Platinum |

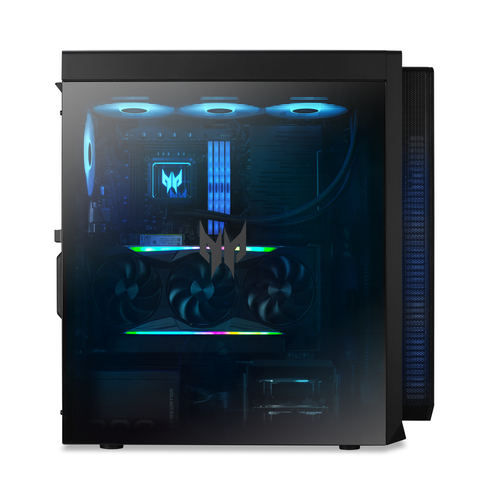

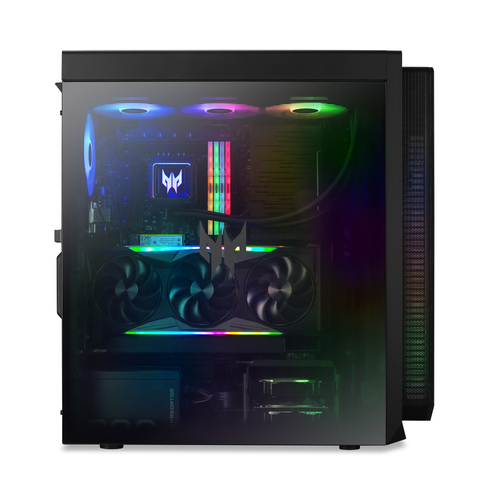

Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Number of 2.5" bays | 2 |

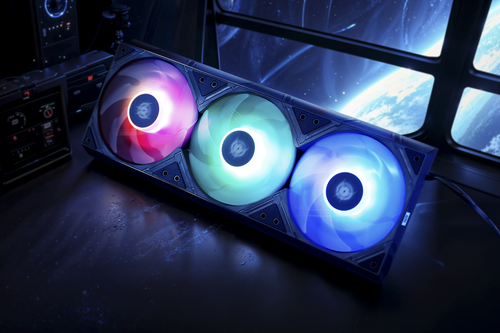

| Liquid cooling system | Yes |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | DTS:X Ultra |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 219 mm |
| Depth | 504.8 mm |
| Height | 485 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 329 mm |
| Package depth | 587 mm |
| Package height | 665 mm |
| Package weight | 22.3 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, Federal Communications Commission (FCC), RoHS |
