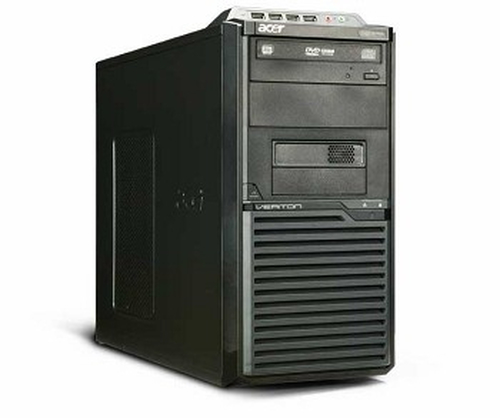

Acer 3x M680G

Model 3x M680GPart no. PS.VAAE3.194 X 3

118 specifications

ProcessorIntel® Core™ i5
Memory2 GB
Storage1 TB
GraphicsIntel® HD Graphics
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 2 GB
Storage: 1 TB
Graphics: Intel® HD Graphics
Type: PC
OS: Windows 7 Professional

Brand: Acer
Category: PCs/Workstations
Model: 3x M680G
Part number: PS.VAAE3.194 X 3
Also known as: Acer Veriton 3x M680G Intel® Core™ i5 i5-650 2 GB DDR3-SDRAM 1 TB Intel® HD Graphics Windows 7 Professional Mini Tower PC Black

Specifications

118 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-650
Processor cores	2
Processor threads	4
Processor boost frequency	3.46 GHz
Processor frequency	3.2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-600 Desktop Series
Processor codename	Clarkdale
Thermal Design Power (TDP)	73 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	24
Platform	PC
Stepping	C2
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	4x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA II

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® HD Graphics
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Q57
Audio output channels	5.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	10
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes

Expansion slots

Specification	Value
Number of 3.5" bays	6
PCI Express x1 slots	1
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power supply	300 W

Design

Specification	Value
Chassis type	Mini Tower
Number of 5.25" bays	2
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Mac compatibility	No

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43546
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	180 mm
Depth	440 mm
Height	352 mm

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Other features

Specification	Value
Intel segment tagging	Enterprise, Small Business
