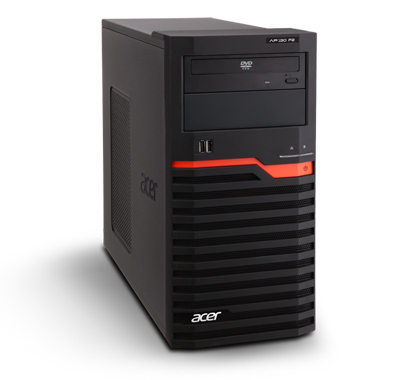

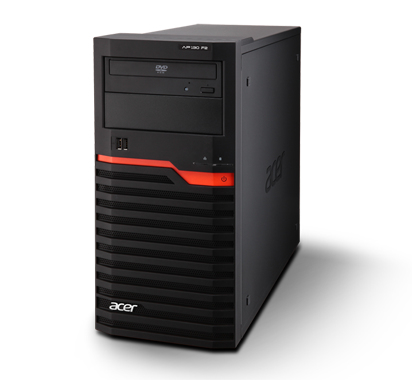

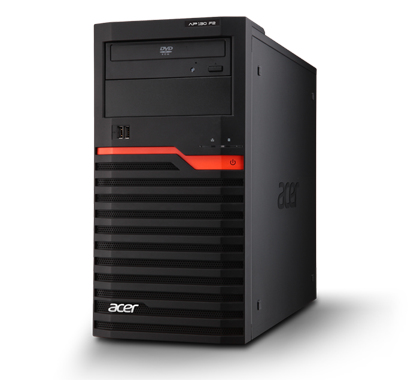

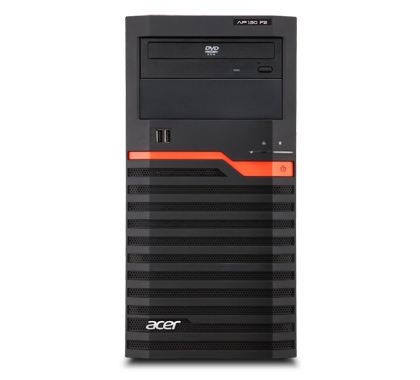

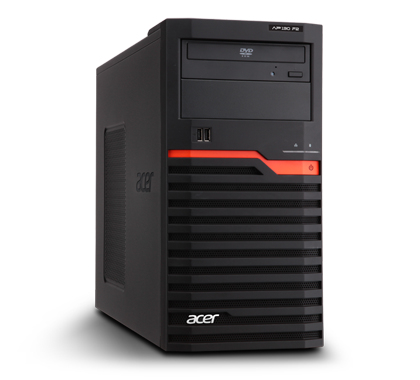

AP 130F2-E3-1220 Intel® Xeon® E3 Family

8 GB DDR3-SDRAM 2 TB HDD NVIDIA® Quadro® 600 Windows 7 Professional PC Black

Model 130F2-E3-1220Part no. AP130F2-E3-1EAN 750519219140

105 specifications

Overview

Brand: Acer
Category: PCs/Workstations
Model: 130F2-E3-1220
Part number: AP130F2-E3-1
EAN / UPC: 750519219140
Also known as: Acer AP 130F2-E3-1220 Intel® Xeon® E3 Family 8 GB DDR3-SDRAM 2 TB HDD NVIDIA® Quadro® 600 Windows 7 Professional PC Black

105 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1220
Processor cores	4
Processor threads	4
Processor boost frequency	3.4 GHz
Processor frequency	3.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E3-1200
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	80 W
Tcase	69.1 °C
Maximum number of PCI Express lanes	20
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	31
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	Yes

Specification	Value
Total storage capacity	2 TB
Optical drive type	DVD Super Multi
Storage media	HDD
Number of storage drives installed	2
Number of HDDs installed	2
HDD capacity	1 TB
HDD interface	SATA
RAID support	Yes
RAID levels	1

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® 600
Discrete graphics card memory	1 GB
On-board graphics card model	Not available

Specification	Value
Product type	PC
Motherboard chipset	Intel® C202

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0

Specification	Value
Power supply	500 W

Specification	Value
Placement supported	Vertical
Product colour	Black

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52269
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
