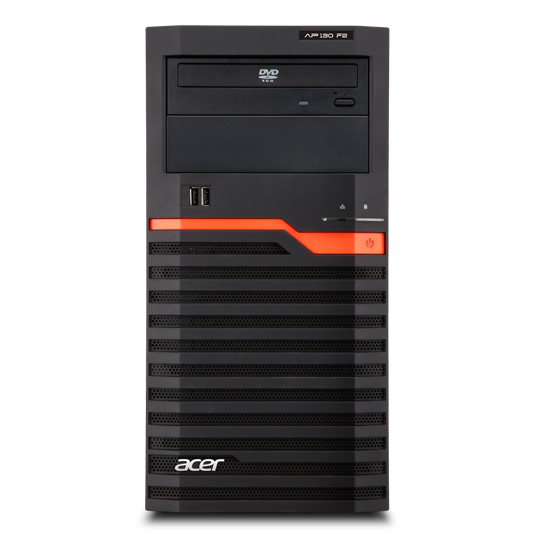

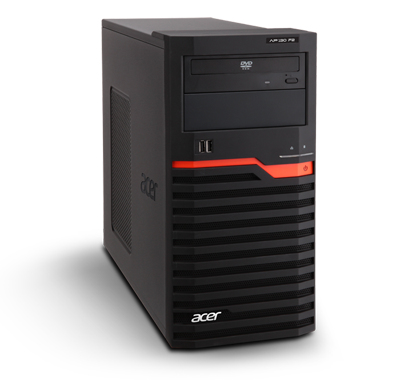

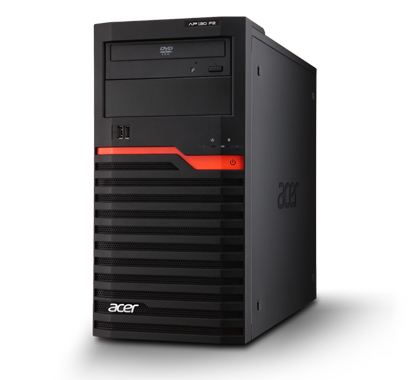

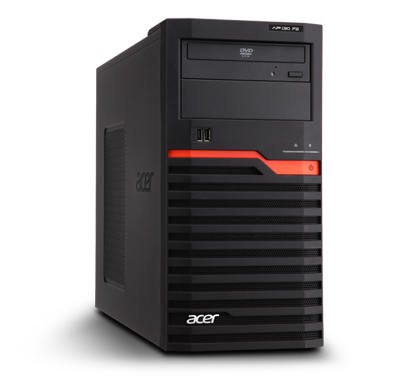

130 F2

Model 130 F2Part no. TT.AD122.100EAN 750519218419

106 specifications

Overview

Brand: Acer
Category: PCs/Workstations
Model: 130 F2
Part number: TT.AD122.100
EAN / UPC: 750519218419, 7505192184192
Also known as: Acer AP 130 F2 Intel® Xeon® E3 V2 Family E3-1220V2 4 GB DDR3-SDRAM 500 GB HDD NVIDIA® Quadro® 600 Windows 7 Professional Tower Workstation Black, Orange

106 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V2 Family
Processor model	E3-1220V2
Processor cores	4
Processor threads	4
Processor boost frequency	3.5 GHz
Processor frequency	3.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	69 W
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	31
Stepping	E1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD+RW
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	7200 RPM
RAID support	Yes
RAID levels	0, 1, 10

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® 600
Discrete graphics card memory	1 GB
Discrete graphics memory type	GDDR3
On-board graphics card model	Not available

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C202

Specification	Value
Optical drives quantity	1

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	0
Microphone in	No
VGA (D-Sub) ports quantity	1
DVI port	No

Specification	Value
Power supply	500 W

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Smart Cache	Yes
Processor ARK ID	65734
Processor code	SR0PH
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	No
