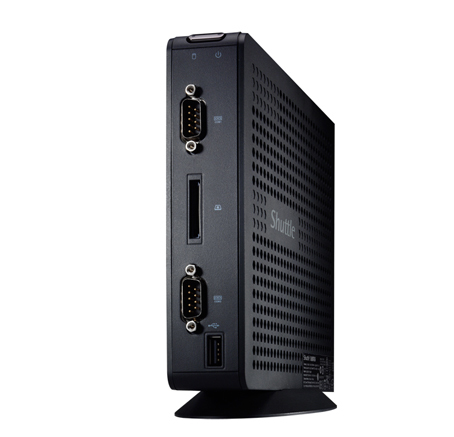

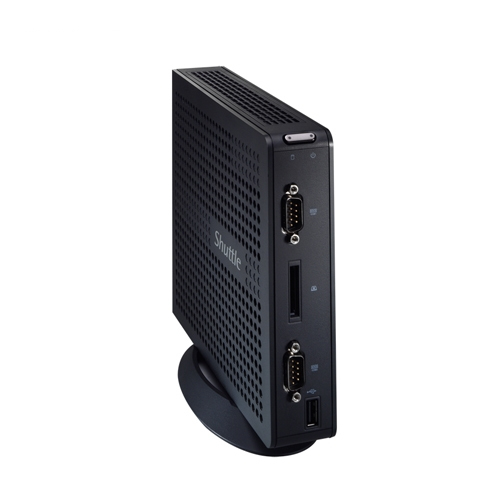

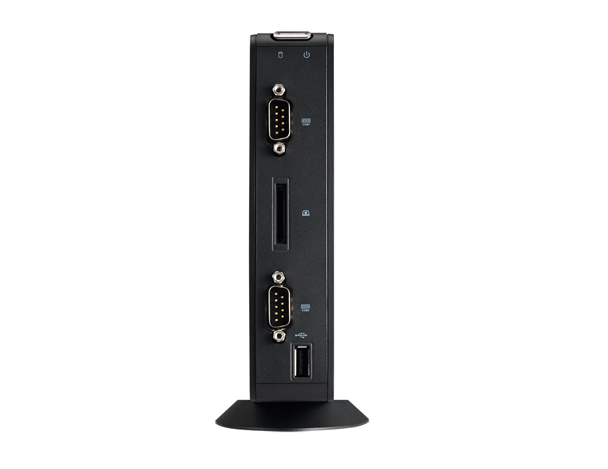

Shuttle XS36V4 PC/workstation barebone Low Profile (Slimline) Black J1900 BGA 1170
2 GHz
Model XS36V4EAN 811686006503
77 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- OSNo
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- OS
- No
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- XS36V4
- Part number
- XS36V4
- EAN / UPC
- 811686006503, 887993000206, 8116860065034
- Also known as
- Shuttle XS36V4 PC/workstation barebone Low Profile (Slimline) Black J1900 BGA 1170 2 GHz
Specifications
77 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | J1900 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.42 GHz |
| Processor frequency | 2 GHz |
| Processor lithography | 22 nm |
| L2 cache | 2 MB |
| Thermal Design Power (TDP) | 10 W |
| CPU configuration (max) | 1 |
| Processor codename | Bay Trail |
| Processor series | Intel Celeron Processor J1000 series for Desktop |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Maximum internal memory | 8 GB |
| Supported memory clock speeds | 1333 MHz |
| Supported memory types | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1170 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron® |
| Audio output channels | 2.1 channels |
| Audio system | Realtek ALC269 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8411 |

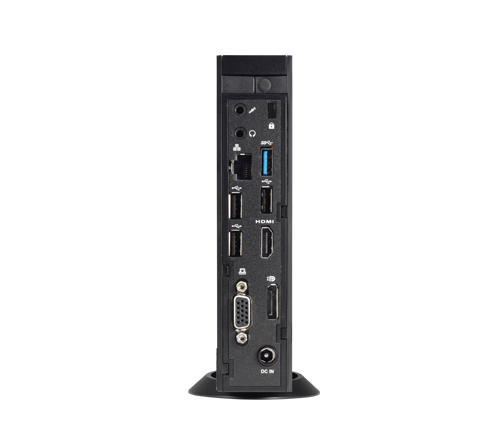

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| Mini PCI Express slots | 1 |
| PCI Express configurations | 1x4 |
Design
| Specification | Value |
|---|---|
| Chassis type | Low Profile (Slimline) |
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | Yes |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel FDI Technology | No |
| Intel Rapid Storage Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Intel® Wireless Display (Intel® WiDi) | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 2.1 A |
| AC adapter output voltage | 19 V |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 40 W |
