Cubi NUC 1MG-014BEU
Model Cubi NUC 1MG-014BEUPart no. CUBI NUC 1M I3 100U BBEAN 4711377229142
140 specifications
- ProcessorIntel Core 3
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
- OSNo
- Weight630 g
- ColourBlack
Overview
- Processor
- Intel Core 3
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- OS
- No
- Weight
- 630 g
- Colour
- Black
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- Cubi NUC 1MG-014BEU
- Part number
- CUBI NUC 1M I3 100U BB
- EAN / UPC
- 4711377229142, 4711377264402
- Also known as
- MSI Cubi NUC 1M Intel Core 3 100U (14th Gen - Series 1) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBo
Specifications
140 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Core 3 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 100U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor boost frequency | 4.7 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2, Serial ATA, Serial ATA II, Serial ATA III |
| NVMe | Yes |
| Number of storage drives supported | 3 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| On-board graphics card model | Intel® Graphics |
| Number of displays supported | 4 |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | NUC |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| Optical drive type | No |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Copper ethernet cabling technology | 2.5GBASE-T |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| LAN controller | Intel I226-V |
| Near Field Communication (NFC) | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Internal USB 2.0 ports quantity | 0 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 0 |
| HDMI ports quantity | 2 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 1.4b/2.1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| Microphone in | No |
| Headphone outputs | 0 |
| Combo headphone/mic port | Yes |
| COM ports quantity | 0 |
| CardBus PCMCIA slot type | No |
| CardBus PCMCIA slots quantity | 0 |
| Consumer infrared headers | No |
| Ethernet LAN (RJ-45) ports | 2 |
| Firewire (IEEE 1394) ports | 0 |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| S/PDIF out port | No |
| Serial port via internal header | No |
| Serial ports quantity | 0 |
| TV-out | No |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt 4 ports quantity | 2 |
| Thunderbolt ports quantity | 0 |
| USB charging | Yes |
| eSATA ports quantity | 0 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x4 (Gen 2.x) slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x16 slots | 0 |
| PCI slots | 0 |
| Mini PCI Express slots | 0 |
| Mini PCI Express slot (half-length) | 0 |
| Mini PCI Express slot (full length) | 0 |
| PCI-X slots | 0 |
| Number of M.2 (M) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | System |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product type | Mini PC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Weight | 630 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.38 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
| Introduction month | July |
| Introduction year | 2024 |
| Warranty period | 2 year(s) |
Similar products
All pc/workstation barebones
MSI
Cubi NUC AI 1UMG i7 155H BB
- Processor
- Intel Core Ultra 7
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
MSI
Cubi NUC AI 1UMG i5 125H BB
- Processor
- Intel Core Ultra 5
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
MSI
CUBI NUC 13MQG I7 1365U VPRO BB
- Processor
- Intel® Core™ i7
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
MSI
CUBI NUC 13MQG I5 1345U VPRO BB
- Processor
- Intel® Core™ i5
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone

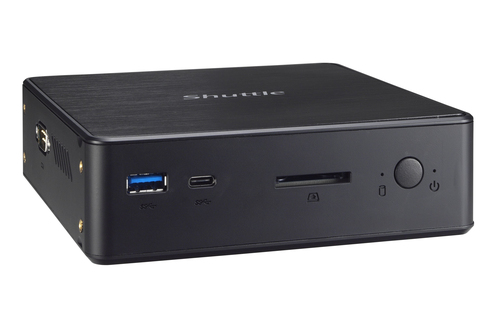

Shuttle
