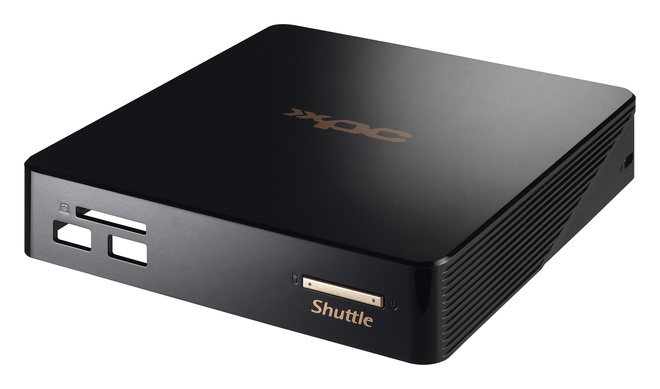

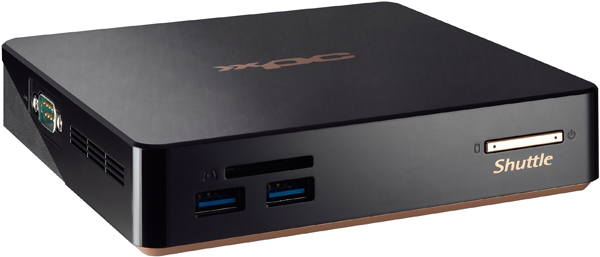

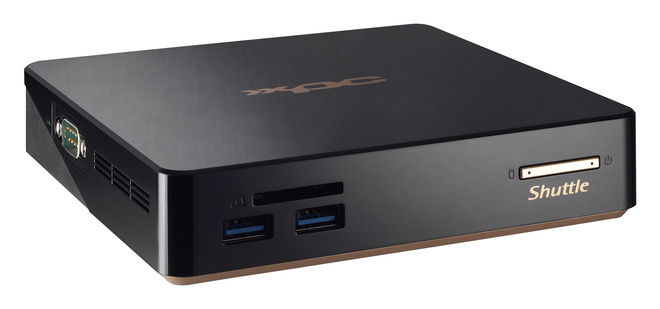

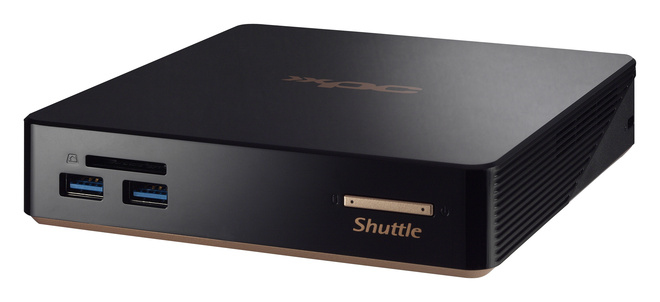

NCO1U3 0.6L sized PC Black i3-5005U BGA 1168 2 GHz
Model NCO1U3Part no. NC01U3EAN 887993000527
137 specifications
- ProcessorIntel® Core™ i3
- TypeMini PC barebone
- OSNo
- Weight360 g
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Core™ i3
- Type
- Mini PC barebone
- OS
- No
- Weight
- 360 g
- Colour
- Black
- Built-in processor
- Yes
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- NCO1U3
- Part number
- NC01U3
- EAN / UPC
- 887993000527
- Also known as
- Shuttle NCO1U3 0.6L sized PC Black i3-5005U BGA 1168 2 GHz
Specifications
137 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 5th gen Intel® Core™ i3 |
| Processor model | i3-5005U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2 GHz |
| Processor lithography | 14 nm |
| L2 cache | 0.512 MB |
| L3 cache | 3 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Broadwell |
| Processor series | Intel Core i3-5000 Mobile series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.35 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, Serial ATA III |
| Number of storage drives supported | 2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics 5500 |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1168 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Core™ i3 |
| BIOS type | AMI |
| Built-in camera | No |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Networking features | LAN, WLAN |

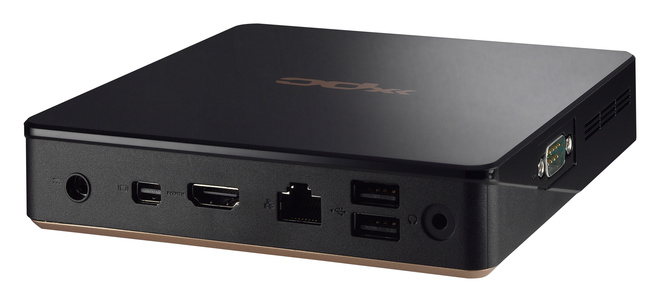

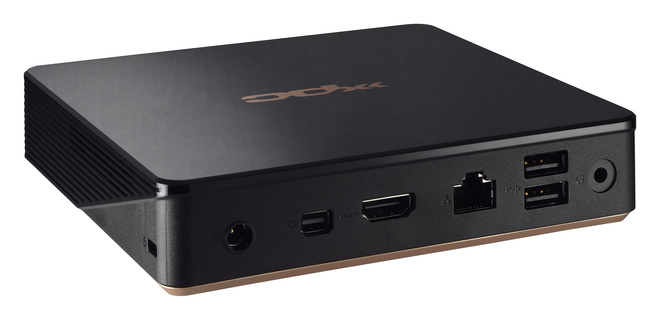

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| DisplayPort version | 1.2 |
| Mini DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| COM ports quantity | 1 |
| CardBus PCMCIA slot type | No |
| CardBus PCMCIA slots quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | No |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 2x4, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.6L sized PC |
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | Yes |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Redundant fans support | No |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free | Yes |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Advanced Management Technology | No |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Smart Connect Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Rapid Start Technology | No |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Unite™ | No |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Compatible operating systems | Windows 7, Window 8, Linux |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | EMI: FCC, CE, BSMI, C-Tick CB, BSMI, ETL |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 141 mm |
| Depth | 141 mm |
| Height | 29 mm |
| Weight | 360 g |
| Package weight | 1.26 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Drivers included | Yes |
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
Other features
| Specification | Value |
|---|---|
| Processor ARK ID | 84695 |
