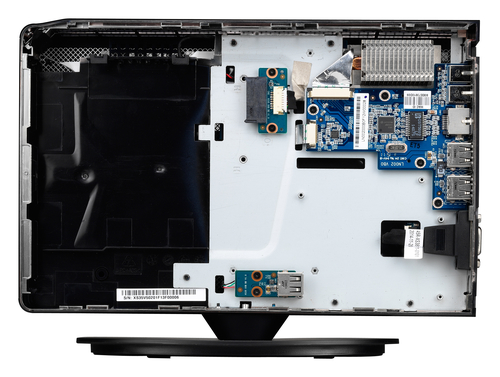

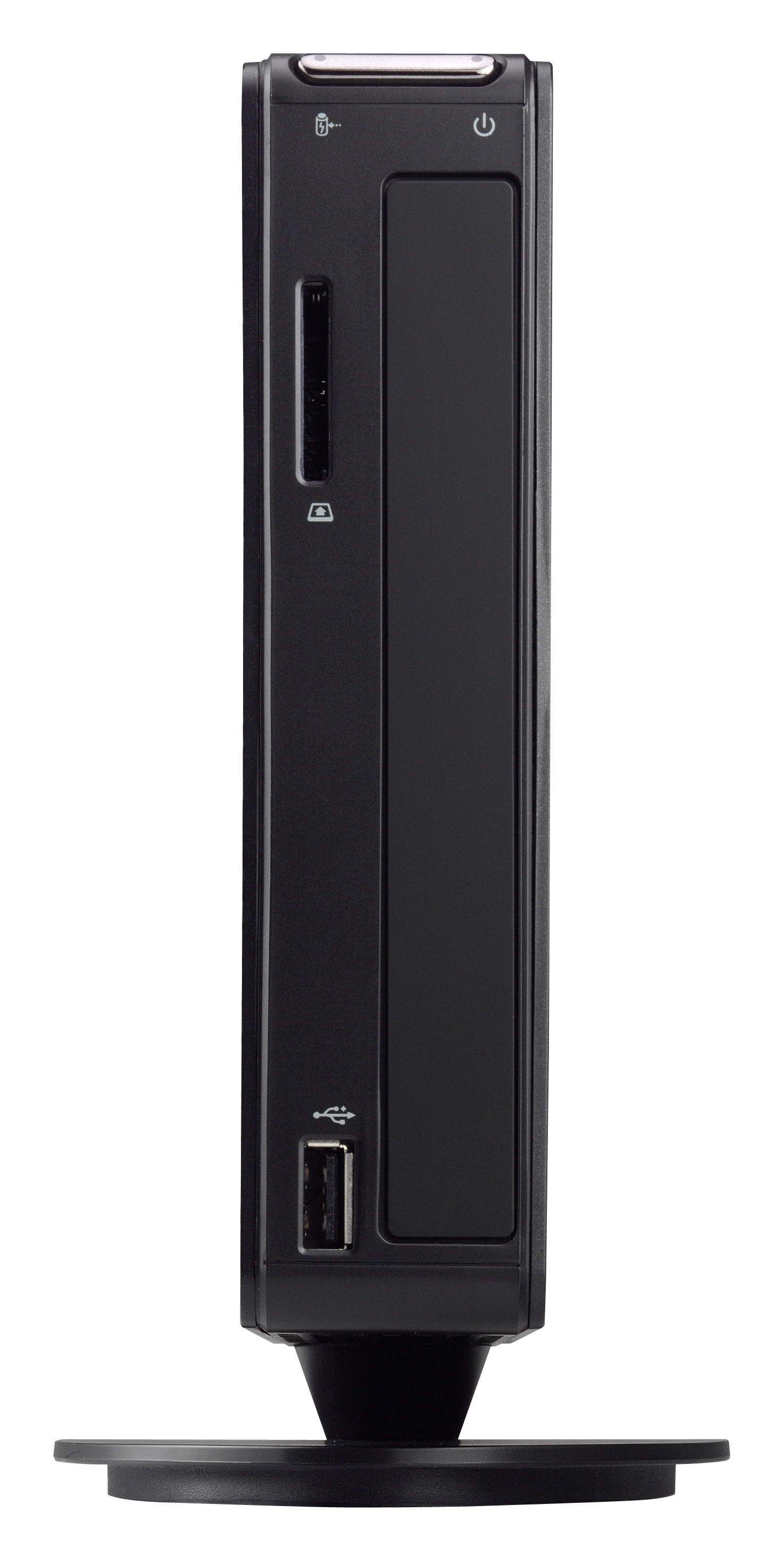

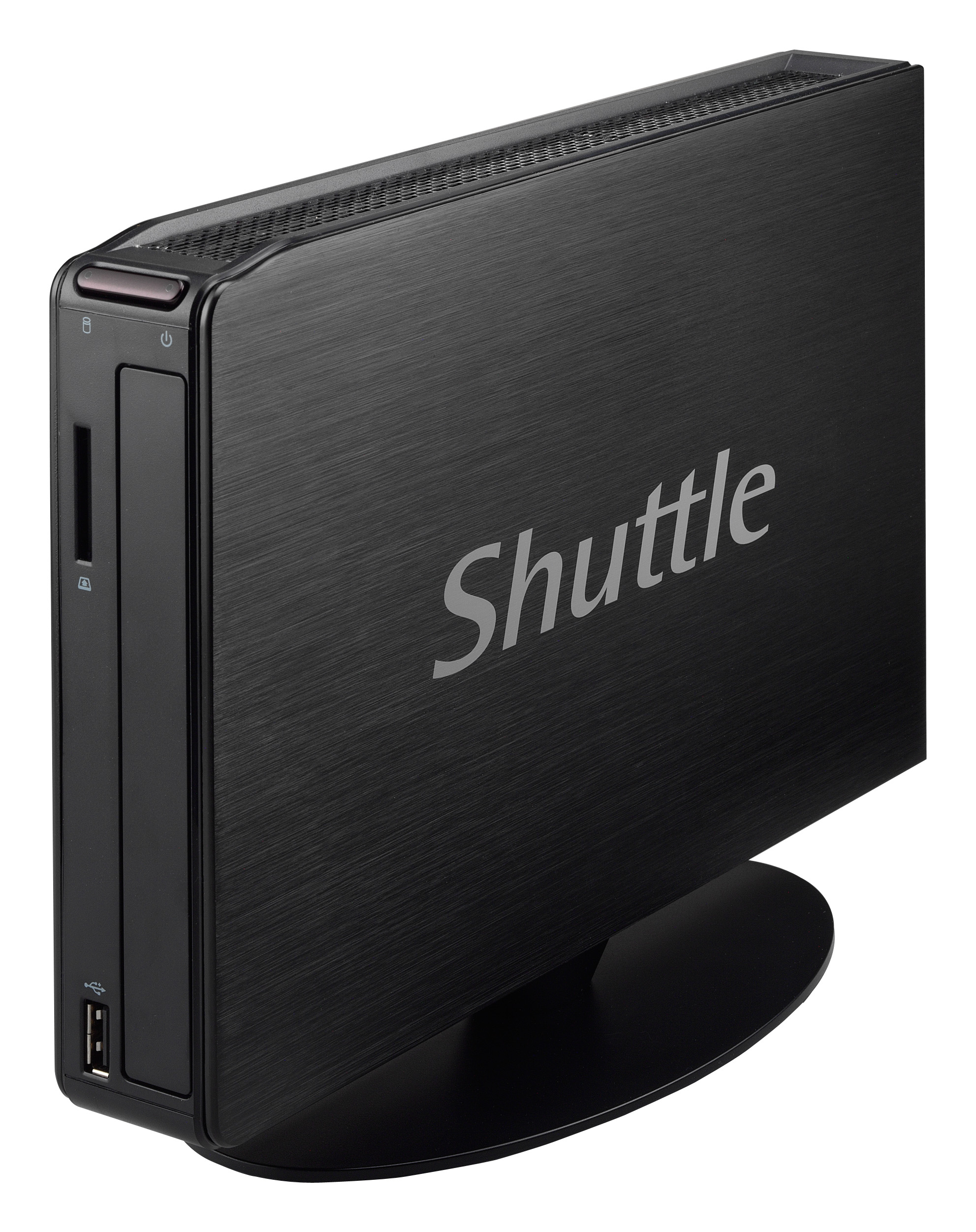

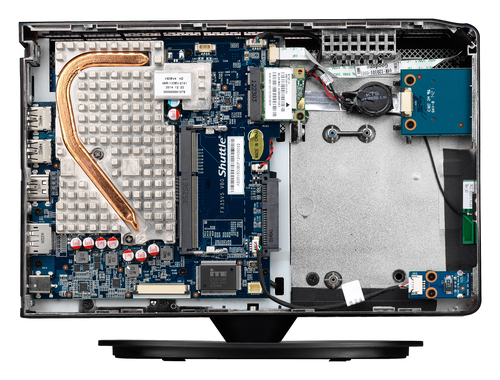

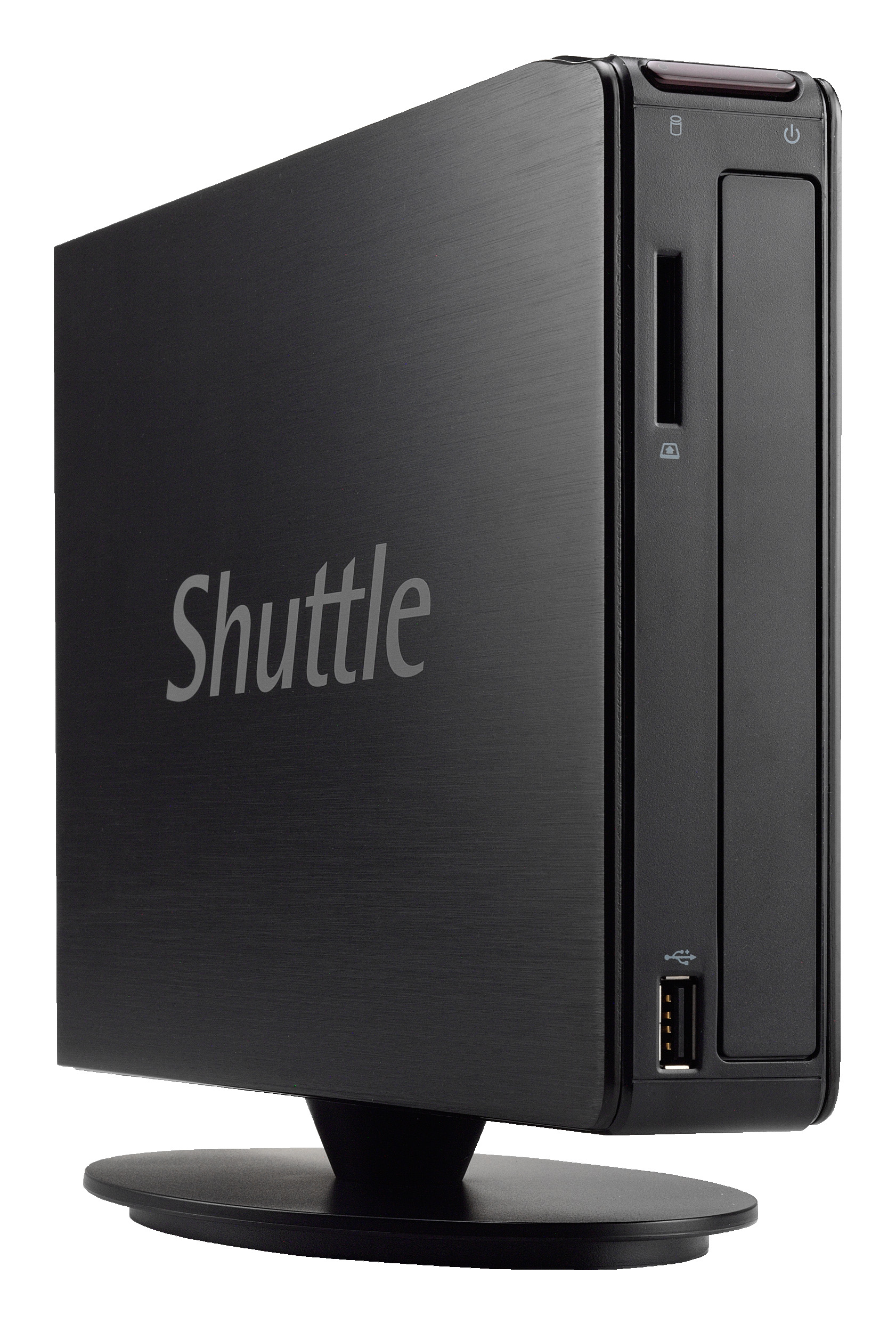

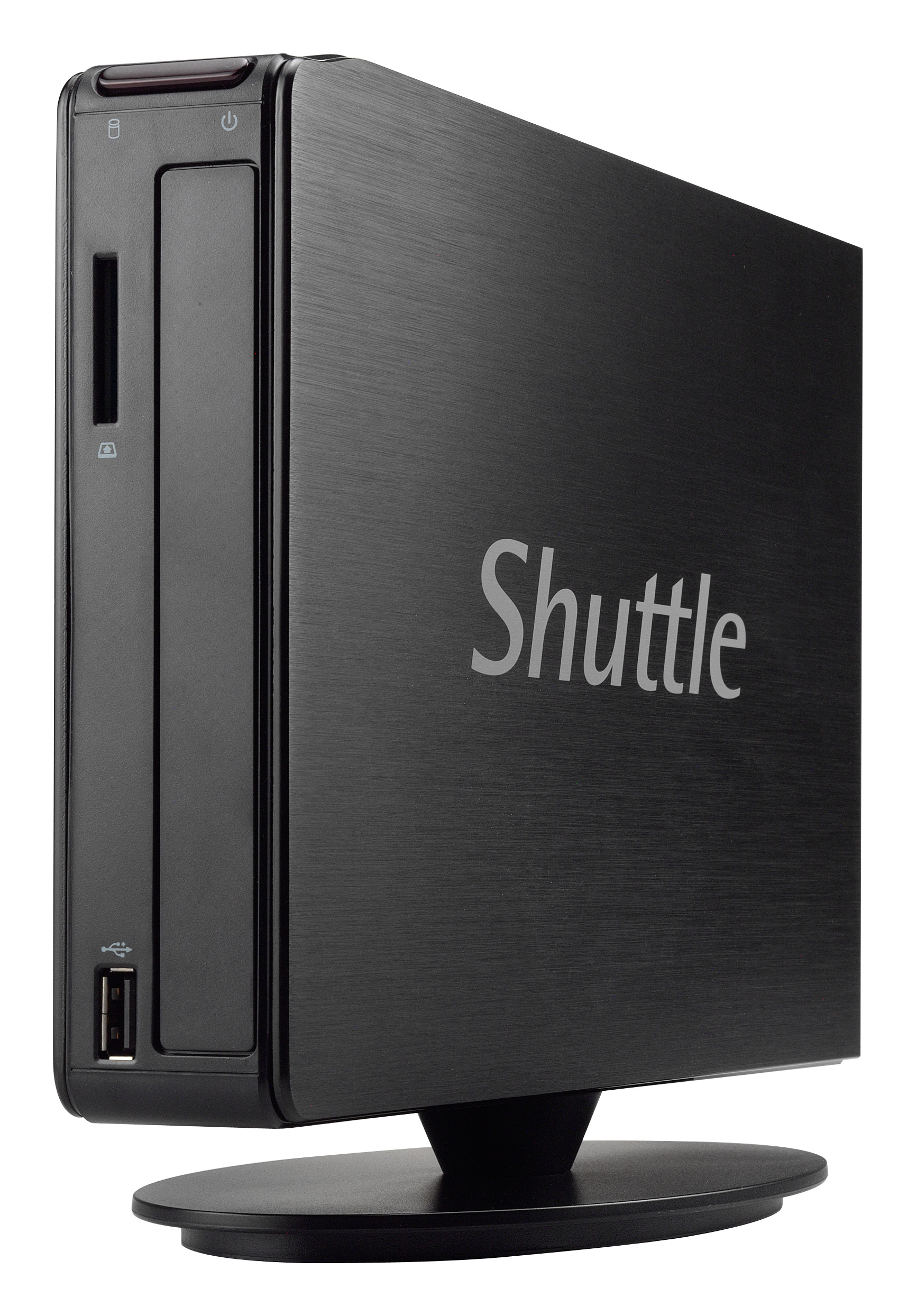

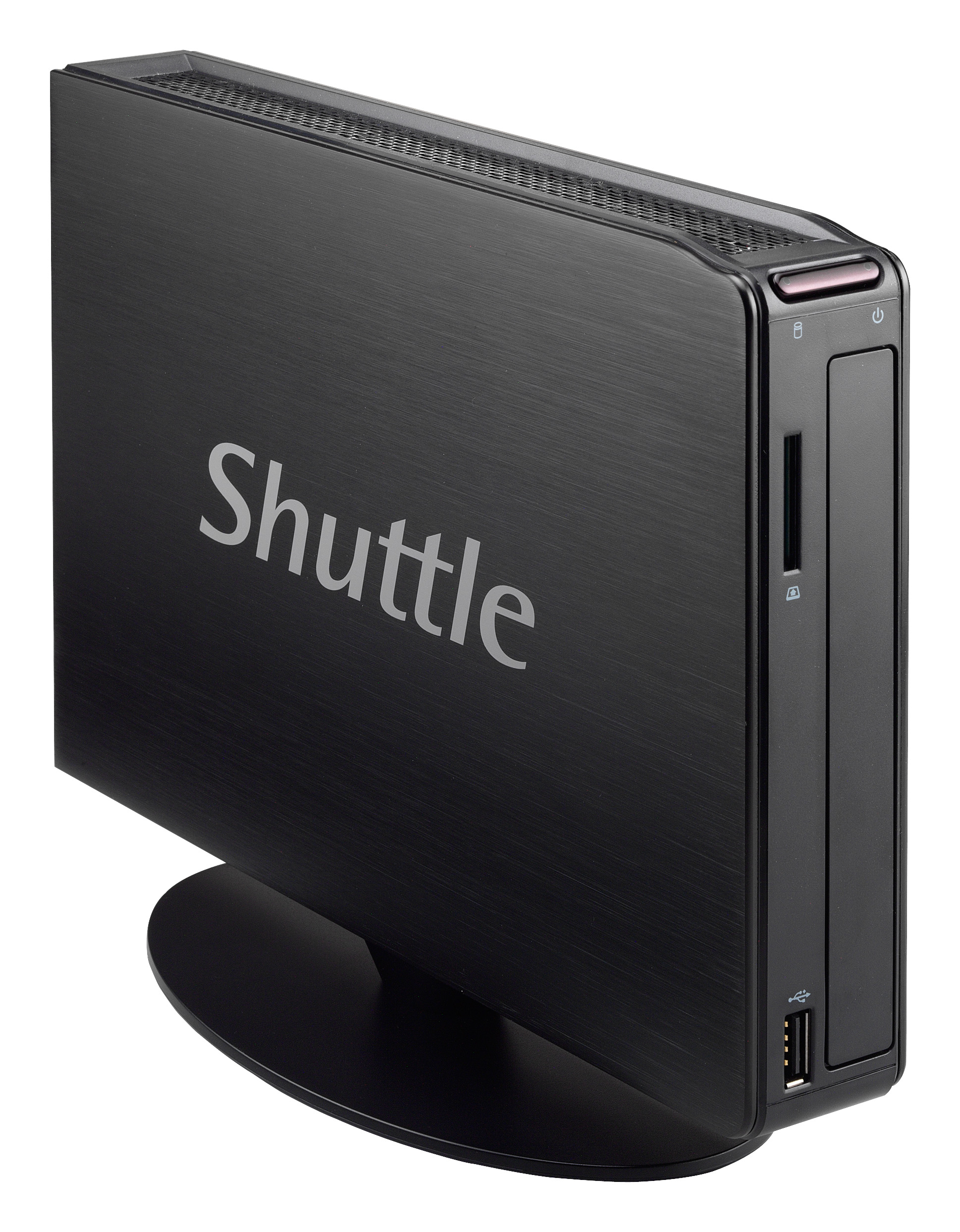

Shuttle XS35V5 PC/workstation barebone Black N3050 BGA 1170
1.6 GHz
Model XS35V5EAN 887993000473
94 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- OSNo
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- OS
- No
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- XS35V5
- Part number
- XS35V5
- EAN / UPC
- 887993000473
- Also known as
- Shuttle XS35V5 PC/workstation barebone Black N3050 BGA 1170 1.6 GHz
Specifications
94 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N3050 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.16 GHz |
| Processor frequency | 1.6 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 6 W |
| CPU configuration (max) | 1 |
| Processor codename | Braswell |
| Processor series | Intel Celeron N3000 series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 8 GB |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1170 |
| Audio system | HD |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |

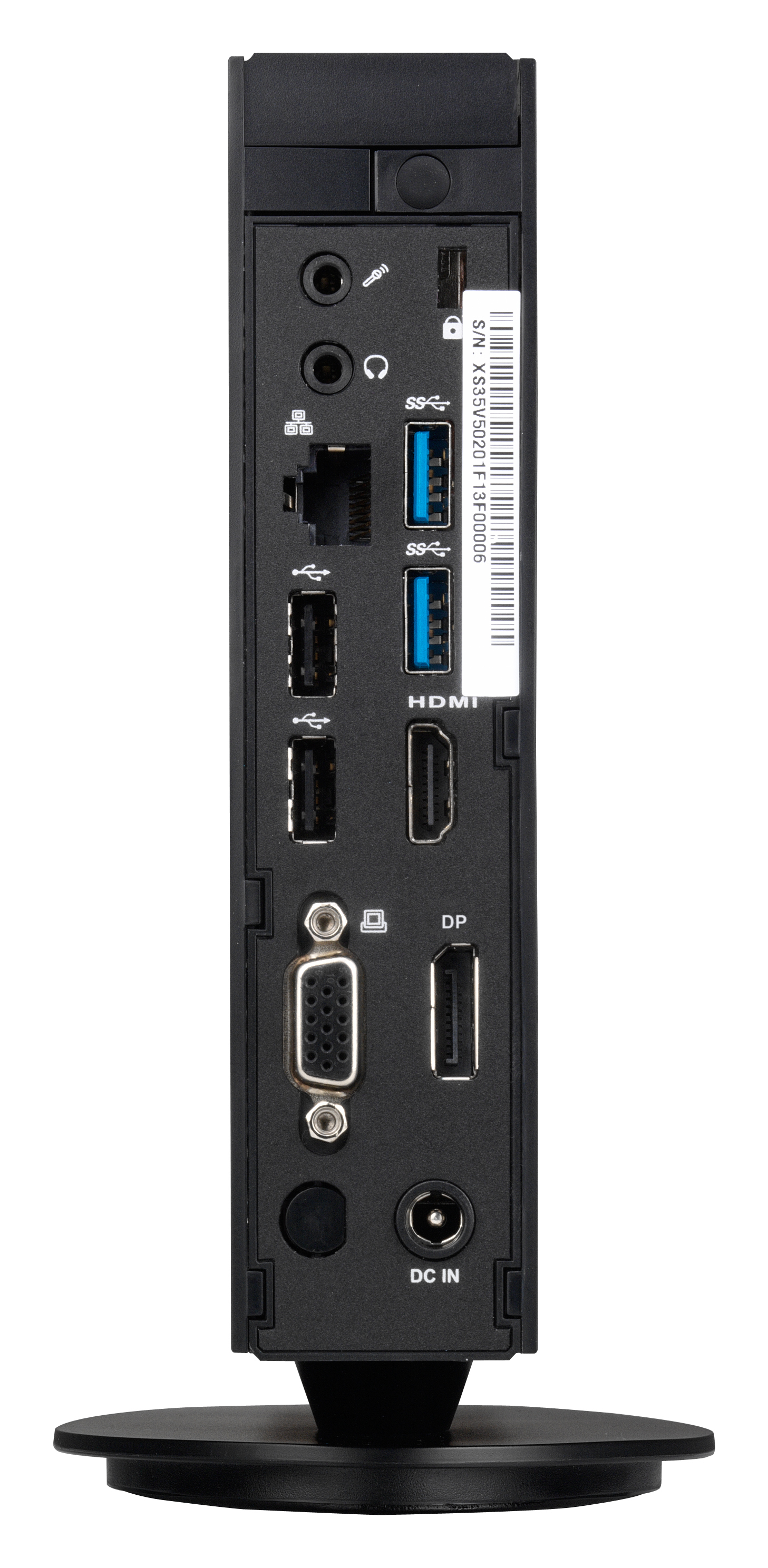

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Rapid Storage Technology | No |
| Intel Smart Connect Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Cache | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Wi |
| Linux operating systems supported | Yes |
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 2.1 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 40 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 252 mm |
| Depth | 38.5 mm |
| Height | 162 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Display included | No |
Other features
| Specification | Value |
|---|---|
| Processor ARK ID | 87257 |
