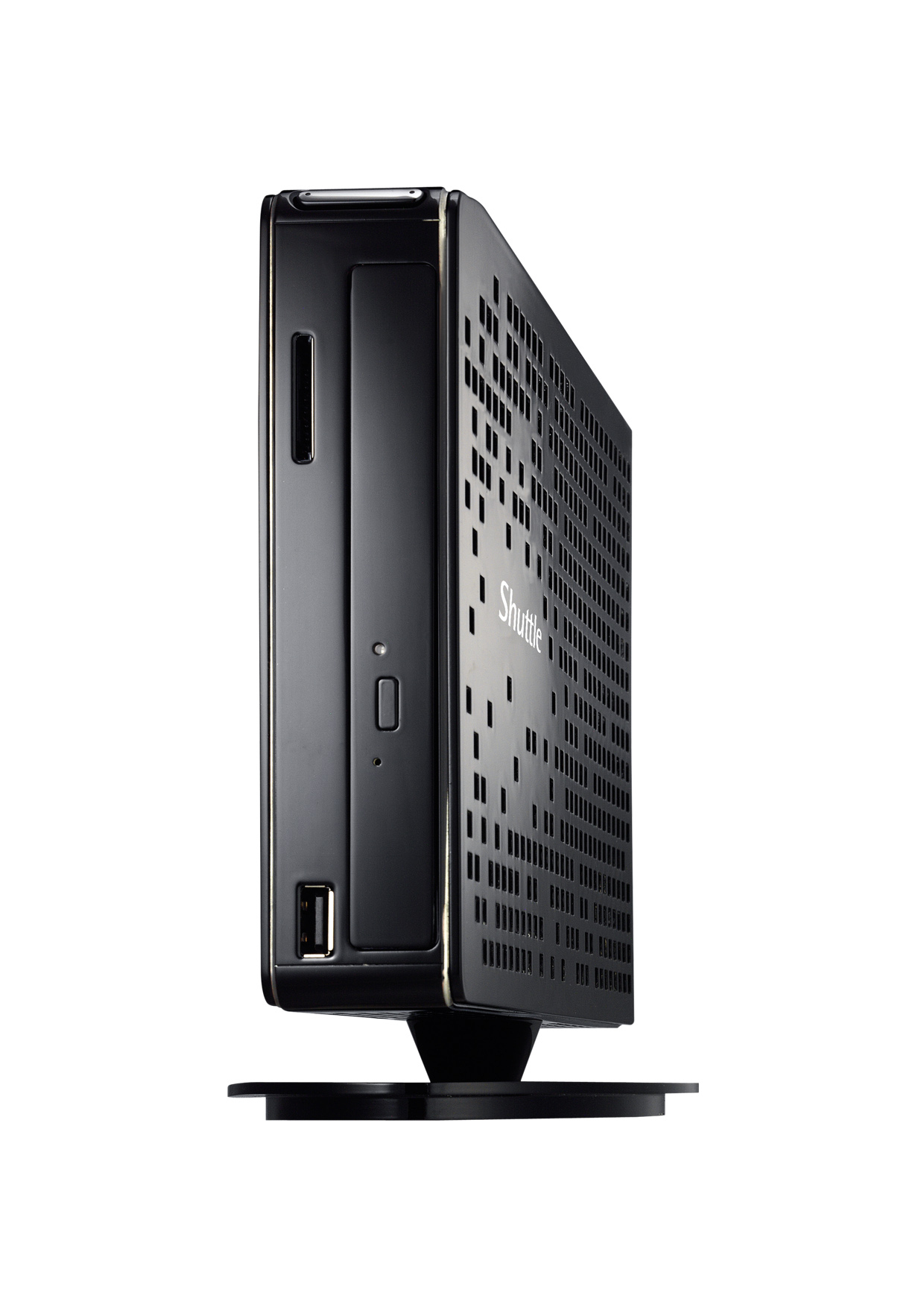

Shuttle XS35GTV2 PC/workstation barebone Black D525 Intel NM10 BGA 559
1.8 GHz
Model XS35GTV2EAN 811686003465
65 specifications
- ProcessorIntel Atom®
- TypeMini PC barebone
- Weight1.8 kg
- ColourBlack
- Processor manufacturerIntel
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel Atom®
- Type
- Mini PC barebone
- Weight
- 1.8 kg
- Colour
- Black
- Processor manufacturer
- Intel
- Memory slots type
- SO-DIMM
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- XS35GTV2
- Part numbers
- XS35GTV2, PEB-XS35G201, XS35GT V2, PEB-XS35G211
- EAN / UPC
- 811686003465
- Also known as
- Shuttle XS35GTV2 PC/workstation barebone Black D525 Intel NM10 BGA 559 1.8 GHz
Specifications
65 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D525 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.8 GHz |
| Processor lithography | 45 nm |
| L2 cache | 1 MB |
| Thermal Design Power (TDP) | 13 W |
| Processor codename | Pineview |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 4 GB |
| Supported memory clock speeds | 667,800 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Serial ATA |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MS PRO, SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | NVIDIA |
| Graphics card memory type | GDDR3 |
| Maximum graphics card memory | 512 MB |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel NM10 |
| Processor socket | BGA 559 |
| Supported processor frequency (max) | 1.8 GHz |
| Audio system | IDT92HD81 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet, WLAN |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | HDD |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Safety | CB, BSMI, ETL |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | No |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7, Windows XP |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, BSMI, C-Tick |
Power
| Specification | Value |
|---|---|
| Power supply | 40 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.8 kg |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 38.5 x 252 x 162 mm |
| HDD size | 2.5" |
| Power LED | Yes |
