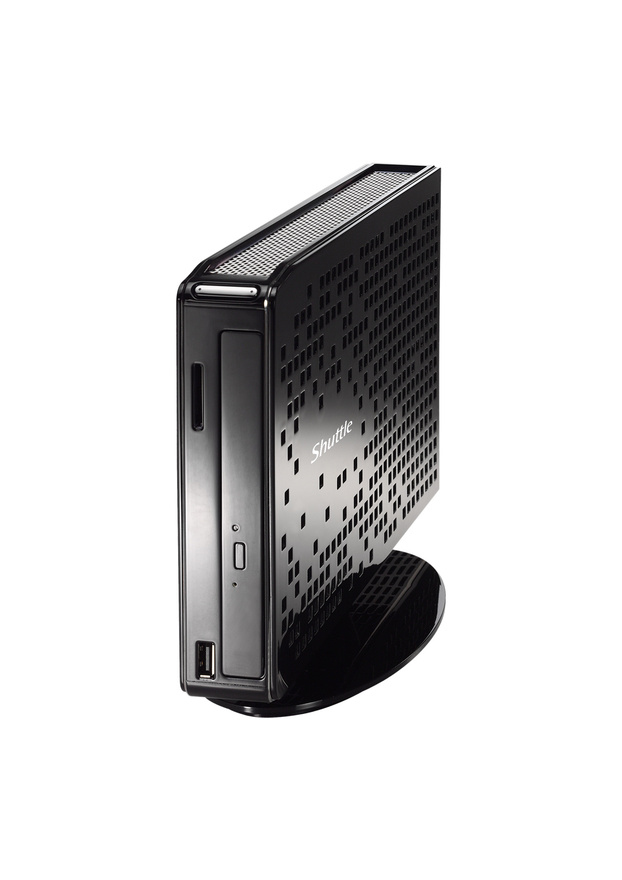

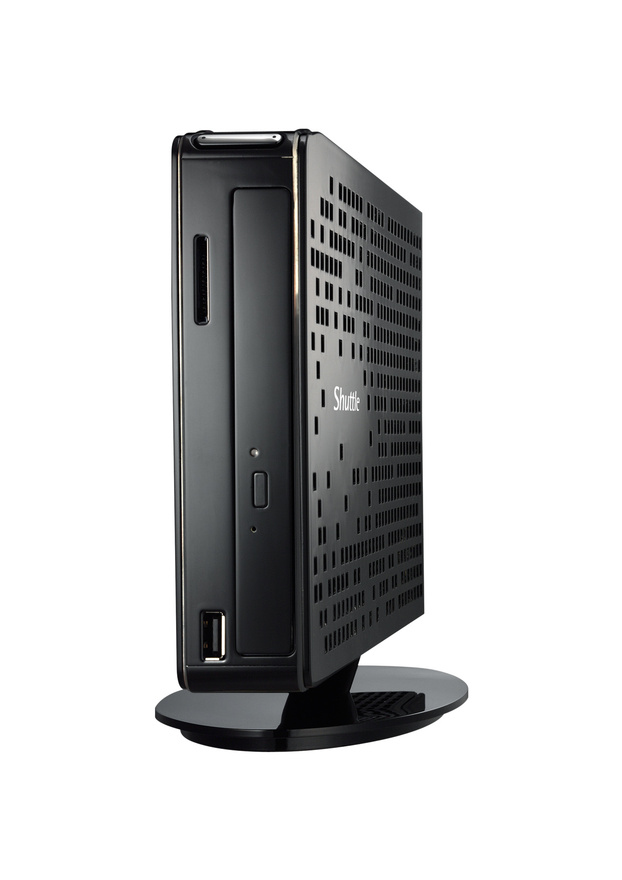

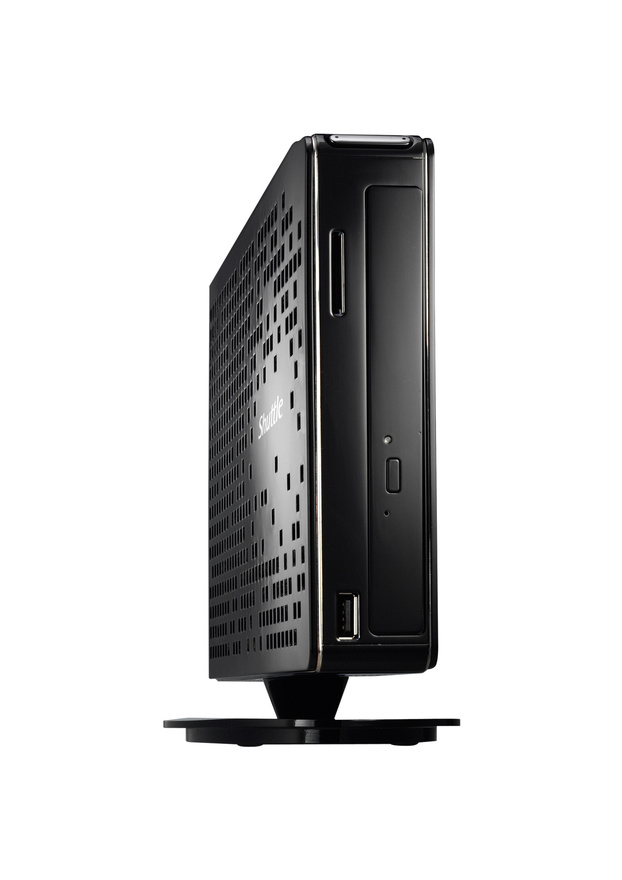

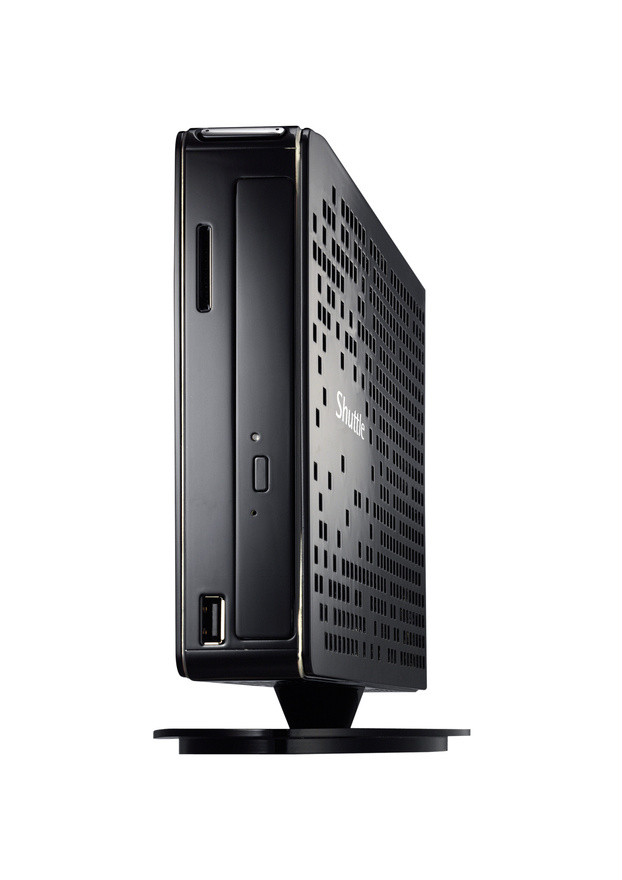

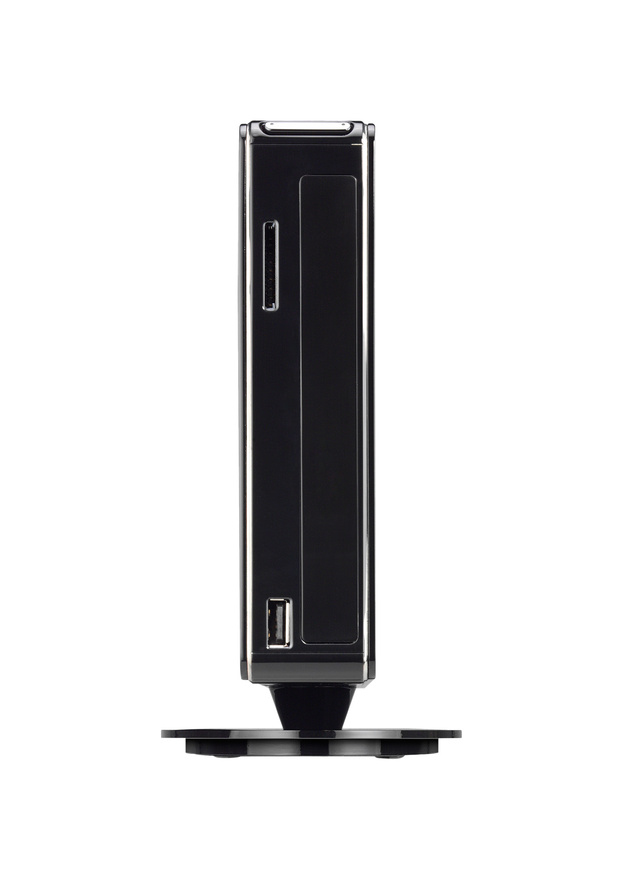

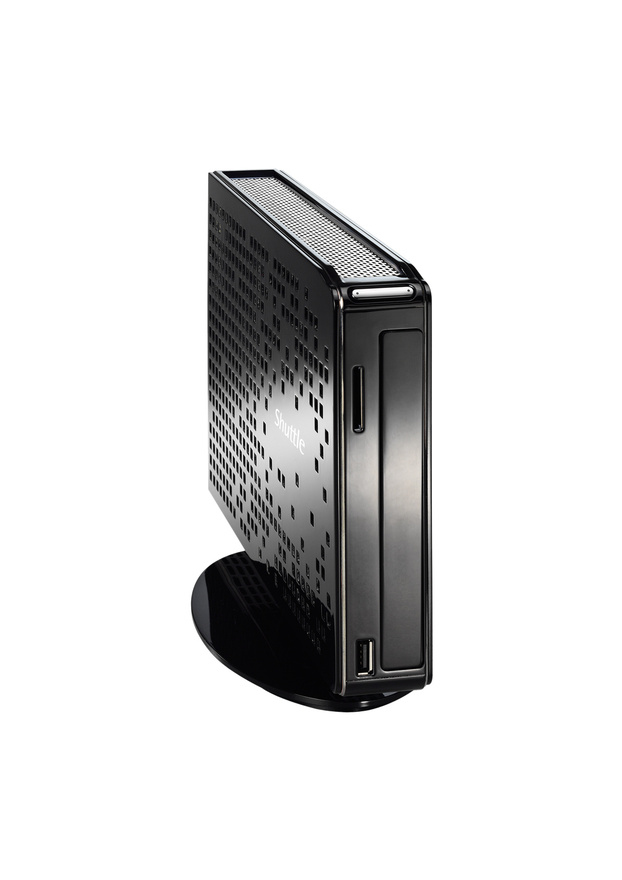

Shuttle XS35GTA V2
Model XS35GTA V2Part no. PEB-XS35A211EAN 811686003762
70 specifications
- ProcessorIntel Atom®
- Memory0 GB
- TypeMini PC barebone
- OSNo
- Weight2.1 kg
- ColourBlack
Overview
- Processor
- Intel Atom®
- Memory
- 0 GB
- Type
- Mini PC barebone
- OS
- No
- Weight
- 2.1 kg
- Colour
- Black
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- XS35GTA V2
- Part number
- PEB-XS35A211
- EAN / UPC
- 811686003762
- Also known as
- Shuttle XS35GTA V2 Black D525 Intel NM10 BGA 559 1.8 GHz
Specifications
70 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D525 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.8 GHz |
| Processor lithography | 45 nm |
| Thermal Design Power (TDP) | 13 W |
| Processor codename | Pineview |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Internal memory | 0 GB |
| Maximum internal memory | 4 GB |
| Supported memory clock speeds | 667,800 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Serial ATA, Serial ATA II |
| Number of storage drives supported | 2 |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MS PRO, SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | ATI |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel NM10 |
| Processor socket | BGA 559 |
| Built-in camera | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet, WLAN |

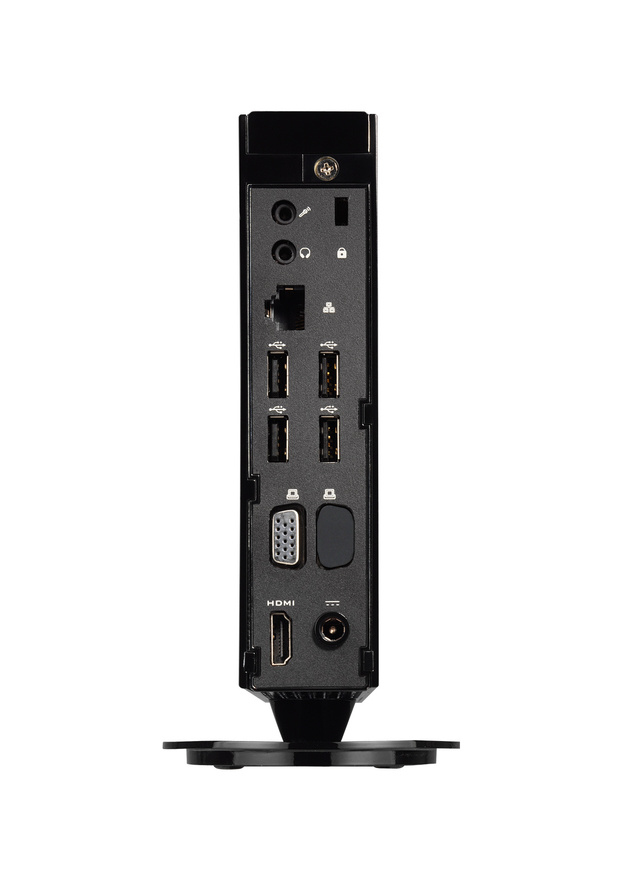

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Product type | Mini PC barebone |
| Safety | CB, BSMI, ETL |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Thermal Monitoring Technologies | No |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7, Windows XP, Linux |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, BSMI, C-Tick, RoHS, Eup Lot6 |
Power
| Specification | Value |
|---|---|
| Power supply | 40 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 252 mm |
| Depth | 162 mm |
| Height | 38 mm |
| Weight | 2.1 kg |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 104 x 252 x 185 mm |
| Power LED | Yes |
