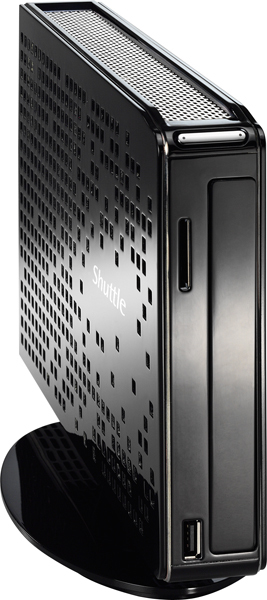

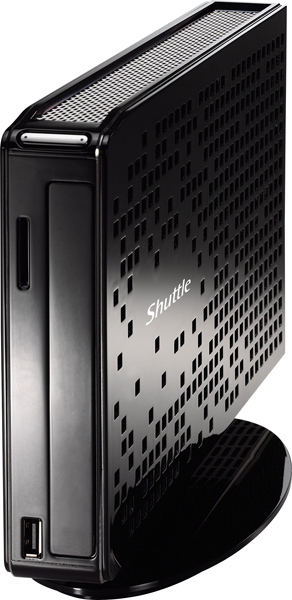

Shuttle XS35 Barebone
Model XS35 BarebonePart no. XS35EAN 811686003274
30 specifications
- ProcessorIntel
- TypeMini PC barebone
- Weight1.8 kg
- ColourBlack
- Maximum internal memory2 GB
- Number of storage drives supported1
Overview
- Processor
- Intel
- Type
- Mini PC barebone
- Weight
- 1.8 kg
- Colour
- Black
- Maximum internal memory
- 2 GB
- Number of storage drives supported
- 1
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- XS35 Barebone
- Part number
- XS35
- EAN / UPC
- 811686003274, 811686003458, 5052179856747
- Also known as
- Shuttle XS35 Barebone USFF Black
Specifications
30 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
| Processor lithography | 45 nm |
| L2 cache | 1 MB |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MS PRO, SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 3150 |
Performance
| Specification | Value |
|---|---|
| Supported processor frequency (max) | 1.66 GHz |

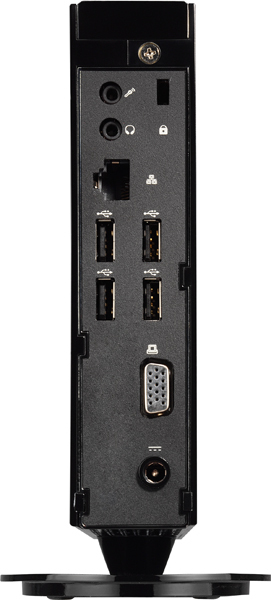

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | USFF |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7, Windows XP and Linux |
Certificates
| Specification | Value |
|---|---|
| Certification | EMI: CE, FCC, BSMI, C-Tick Safety: CB, BSMI, ETL Other compliances: RoHS, Eup Lot6 |
Power
| Specification | Value |
|---|---|
| Power supply | 40 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.8 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 252 x 38.4 x 162 mm |
| HDD size | 2.5" |
| Power requirements | AC/DC |
