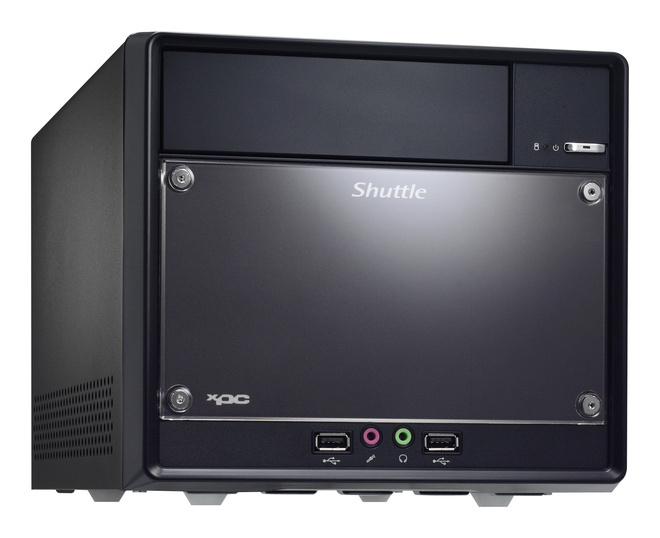

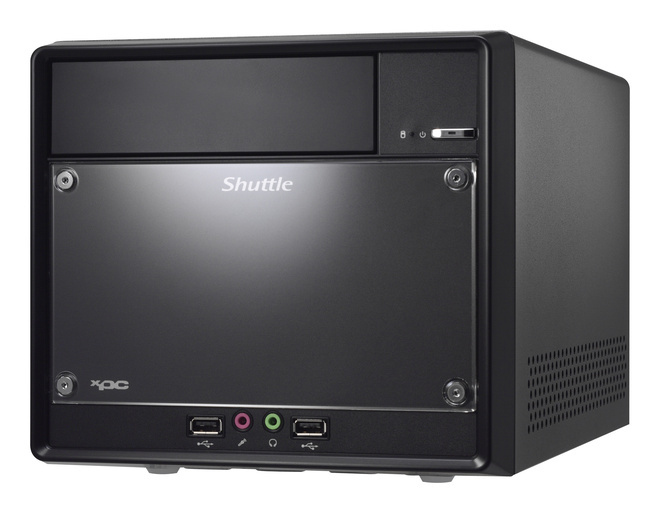

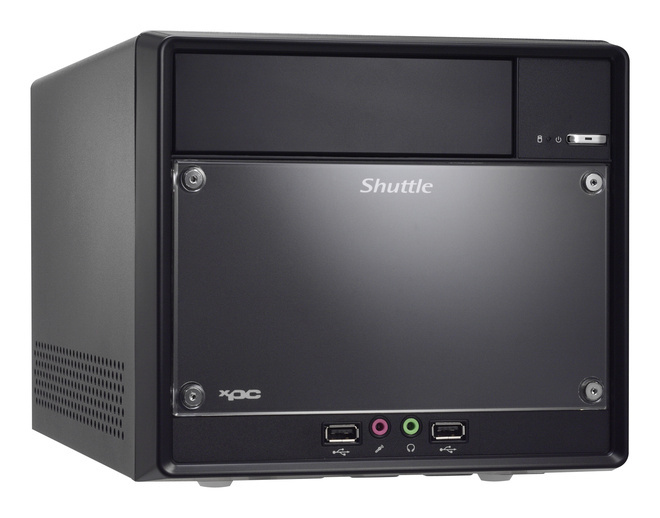

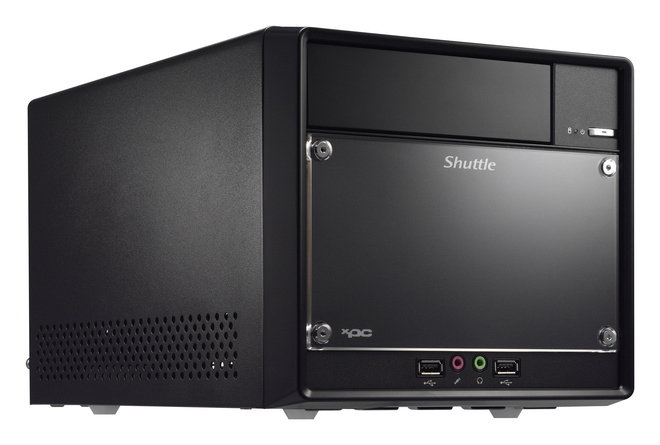

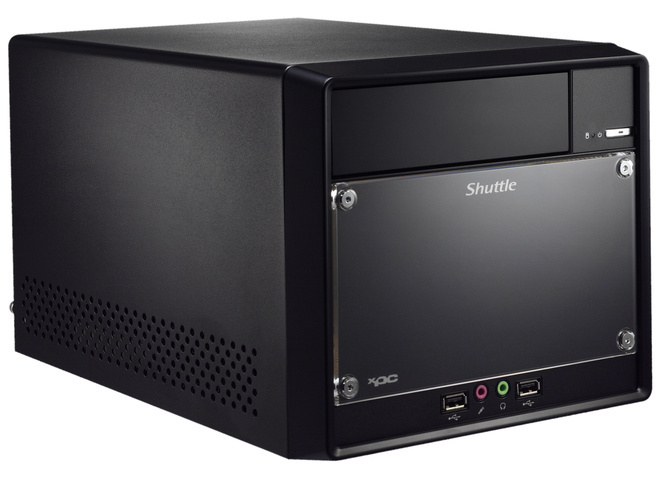

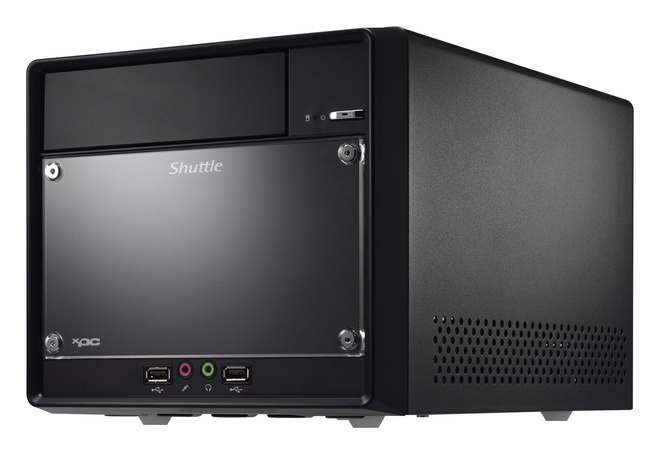

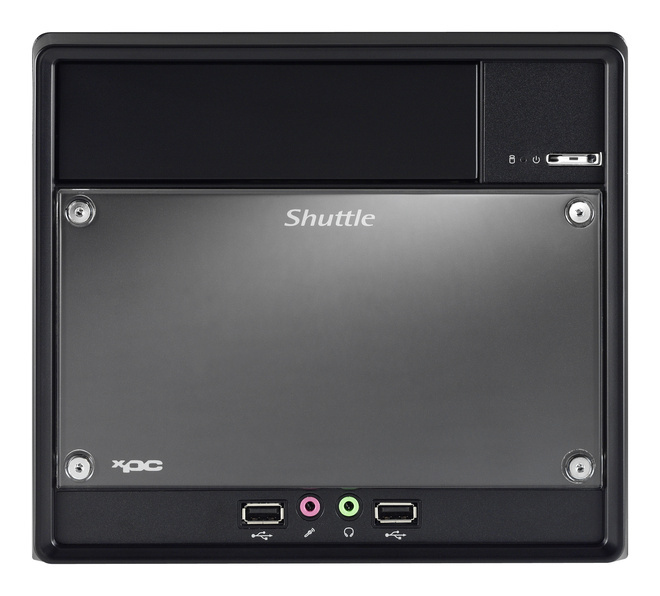

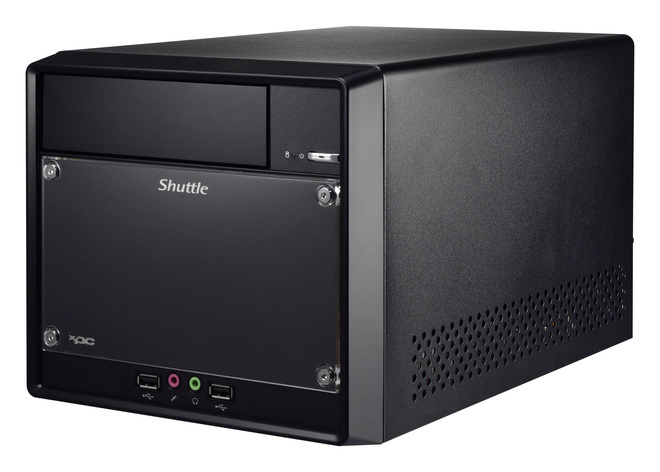

Shuttle XPC Barebone SG41J4
Model XPC Barebone SG41J4Part no. SG41J4EAN 811686003403
42 specifications
- Weight7 kg
- ColourBlack
- Memory slots typeDIMM
- Storage drive interfaceSerial ATA, Serial ATA II
- On-board graphics cardYes
- Processor socketLGA 775 (Socket T)
Overview
- Weight
- 7 kg
- Colour
- Black
- Memory slots type
- DIMM
- Storage drive interface
- Serial ATA, Serial ATA II
- On-board graphics card
- Yes
- Processor socket
- LGA 775 (Socket T)
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- XPC Barebone SG41J4
- Part number
- SG41J4
- EAN / UPC
- 811686003403
- Also known as
- Shuttle XPC Barebone SG41J4 Mini-Tower Black LGA 775 (Socket T)
Specifications
42 specifications in 14 groups
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
| Supported memory clock speeds | 800,1066 MHz |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Serial ATA, Serial ATA II |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA X4500 |
Performance
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Dual-Core |
| Audio output channels | 5.1 channels |
| Audio system | IDT 92HD89 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Marvell 88E8057 |
| Networking features | Gigabit Ethernet |

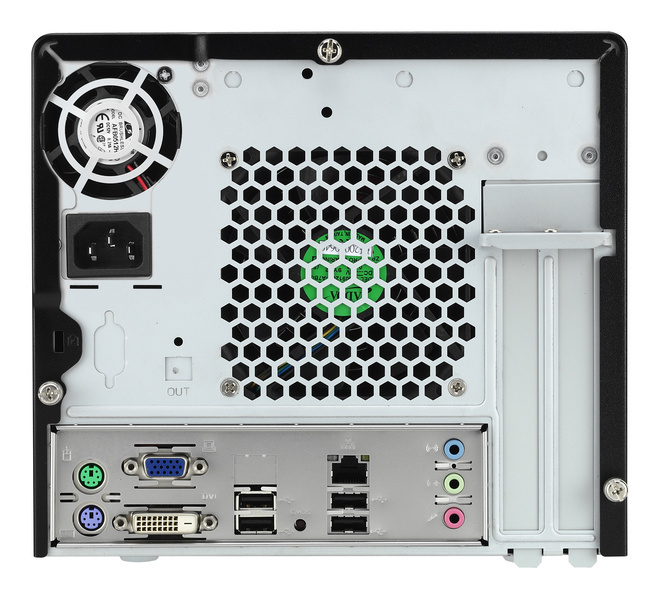

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 0 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7/Vista/XP |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Power
| Specification | Value |
|---|---|
| Power supply | 250 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 215 x 325 x 190 mm |
| Power LED | Yes |
| Power requirements | 100 - 240V |
| Processor system buses supported | 800,1066,1333 MHz |
| Drive bays | 1x 5.25", 2x 3.5" |
