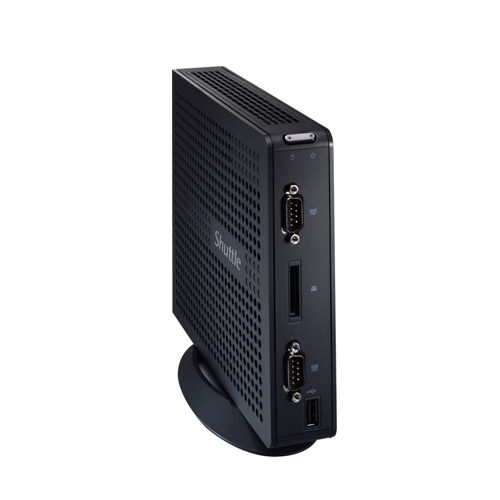

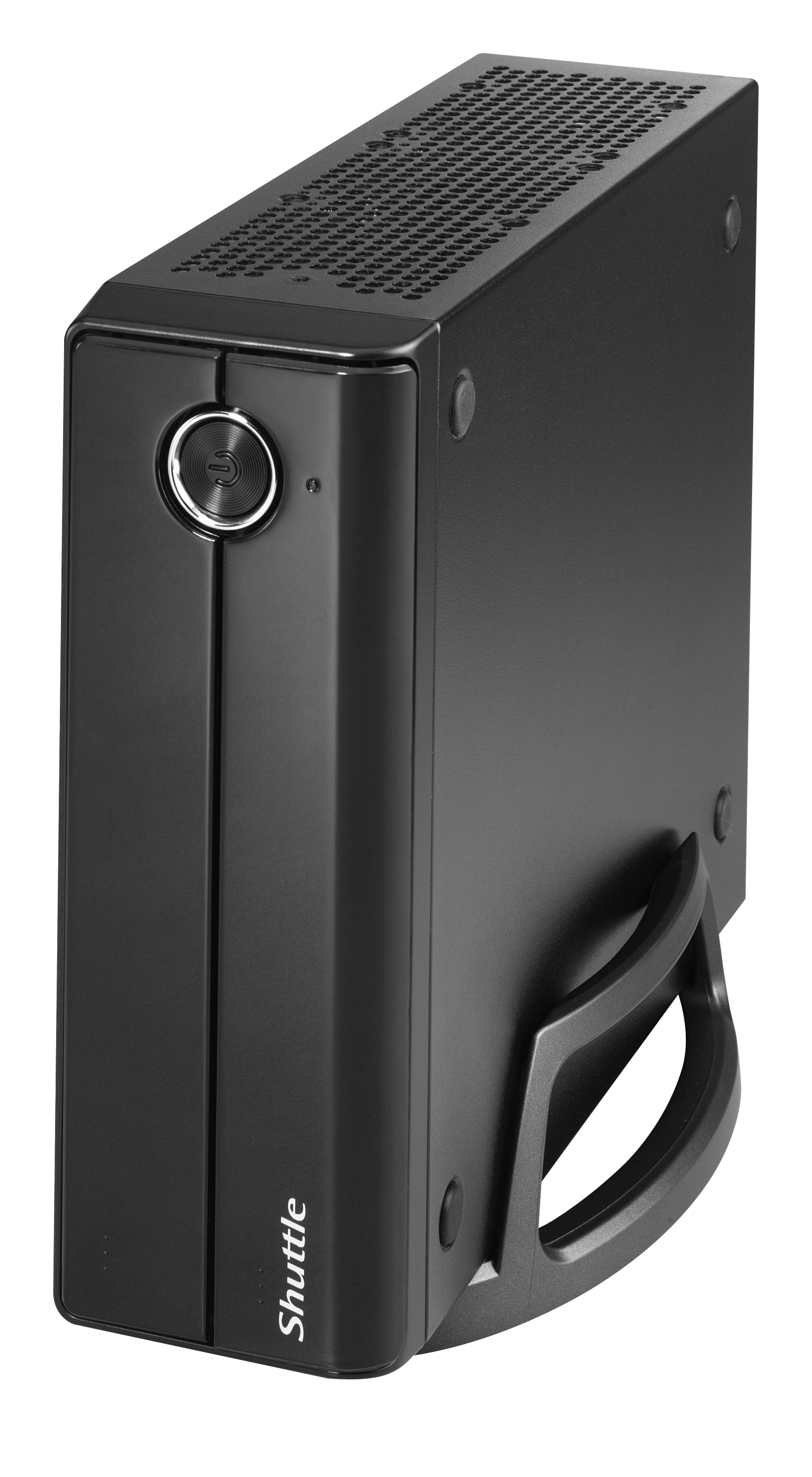

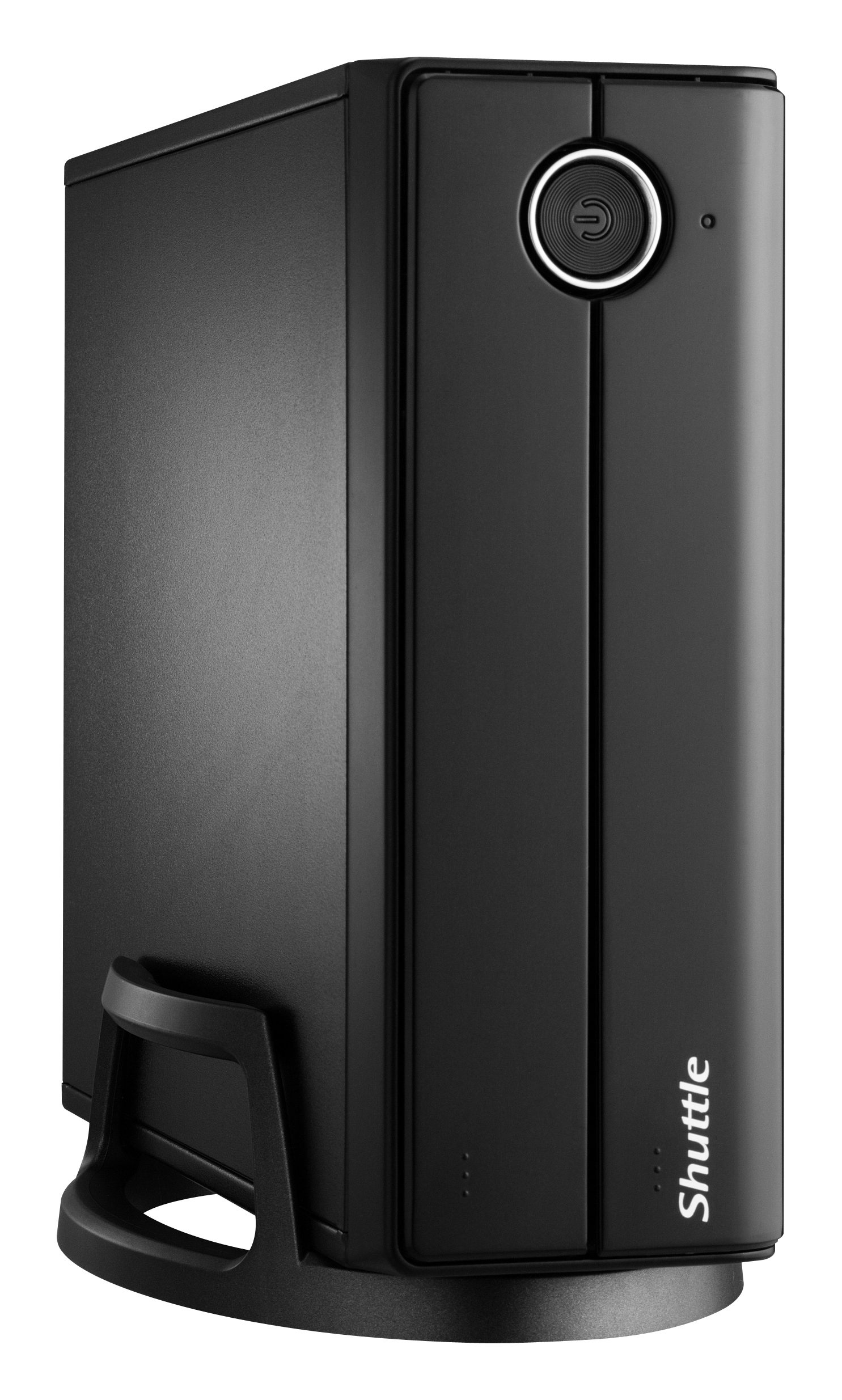

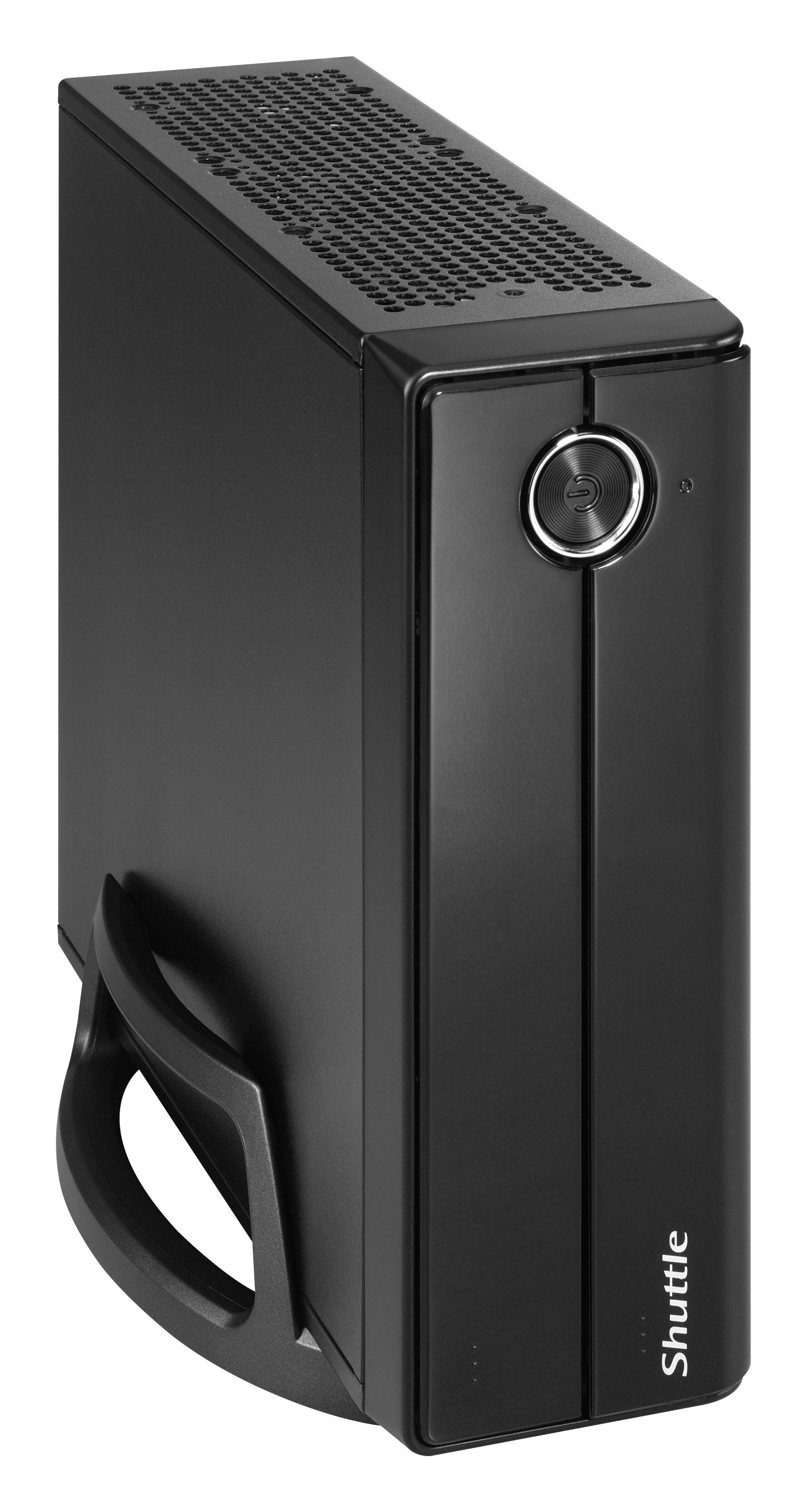

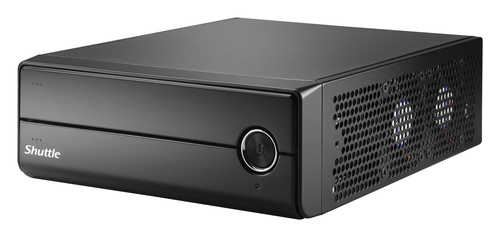

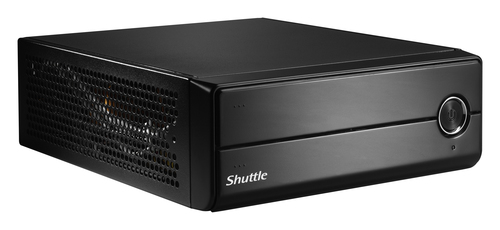

Shuttle XH81V PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)

Shuttle XH81V PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)

Model XH81VPart no. XH81V-WHITEEAN 887993000107

55 specifications
  • TypePC barebone
  • OSNo
  • Weight2.2 kg
  • ColourBlack
  • Memory slots typeSO-DIMM
  • Storage drive sizes supported2.5"
See all specifications

Overview

Type
PC barebone
OS
No
Weight
2.2 kg
Colour
Black
Memory slots type
SO-DIMM
Storage drive sizes supported
2.5"
Brand
Shuttle
Model
XH81V
Part numbers
XH81V-WHITE, XH81V
EAN / UPC
887993000107, 115177678959, 811686006770, 5052184725557 +2 more
Also known as
Shuttle XH81V PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)

Specifications

55 specifications in 15 groups

Processor

Built-in processorNo

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory16 GB
Memory channelsDual-channel
Supported memory clock speeds1333,1600 MHz
Supported memory typesDDR3-SDRAM

Storage

Storage drive sizes supported2.5"
Storage drive interfaceSerial ATA II, Serial ATA III
Number of storage drives supported2
Card reader integratedNo

Graphics

On-board graphics cardNo
Graphics card familyIntel

Performance

Motherboard chipsetIntel® H81
Processor socketLGA 1150 (Socket H3)
Number of processors supported1
Compatible processor seriesIntel® Celeron® G, Intel Pentium G
Audio output channels5.1 channels
Audio systemRealtek ALC 662

Network

Ethernet LANYes
Wi-FiNo
LAN controllerRealtek 8111G

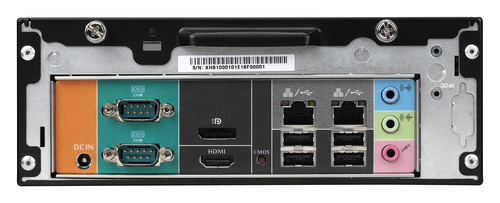

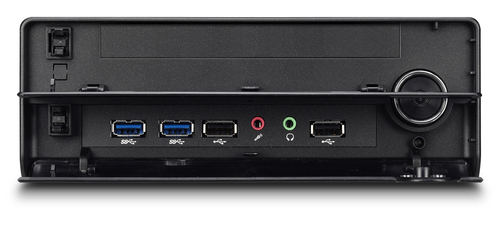

Ports & interfaces

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity1
VGA (D-Sub) ports quantity0
DisplayPorts quantity1
Microphone inYes
Headphone outputs2
Ethernet LAN (RJ-45) ports2
Serial ports quantity2

Design

Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Product typePC barebone
SafetyCB, BSMI, ETL

Sustainability

Sustainability certificatesENERGY STAR

Software

Compatible operating systemsWindows 8 / 8.1, Windows 7, Linux
Operating system installedNo

Certificates

CertificationRoHS, FCC, CE, BSMI, C-Tick

Power

Power supply typeAC/DC
Number of power supply units1
Power supply90 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width200 mm
Depth240 mm
Height72 mm
Weight2.2 kg
Package weight3.5 kg

Other features

Number of processors installed0
DC input voltage19 V
Number of SATA connectors3
Power LEDYes
Power requirements100 - 240V
