Shuttle XH81 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)

Shuttle XH81 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)

Model XH81EAN 8116860068172

57 specifications
  • TypePC barebone
  • OSNo
  • Weight2.2 kg
  • ColourBlack
  • Memory slots typeSO-DIMM
  • Storage drive sizes supported2.5"
See all specifications

Overview

Type
PC barebone
OS
No
Weight
2.2 kg
Colour
Black
Memory slots type
SO-DIMM
Storage drive sizes supported
2.5"
Brand
Shuttle
Model
XH81
Part number
XH81
EAN / UPC
8116860068172, 811686006794, 811686006817, 5052184725540 +3 more
Also known as
Shuttle XH81 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)

Specifications

57 specifications in 15 groups

Processor

Built-in processorNo

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory16 GB
Memory channelsDual-channel
Supported memory clock speeds1333,1600 MHz
Supported memory typesDDR3-SDRAM

Storage

Storage drive sizes supported2.5"
Storage drive interfaceSerial ATA II, Serial ATA III
Number of storage drives supported2
Card reader integratedNo

Graphics

On-board graphics cardNo
Graphics card familyIntel

Performance

Motherboard chipsetIntel® H81
Processor socketLGA 1150 (Socket H3)
Number of processors supported1
Compatible processor seriesIntel® Celeron® G, Intel Pentium G
Audio output channels5.1 channels
Audio systemRealtek ALC 662

Network

Ethernet LANYes
Wi-FiNo
LAN controllerRealtek 8111G

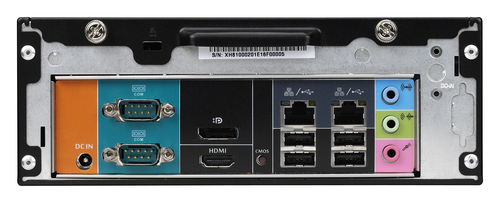

Ports & interfaces

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity1
VGA (D-Sub) ports quantity0
DisplayPorts quantity1
Microphone inYes
Headphone outputs2
Ethernet LAN (RJ-45) ports2
Serial ports quantity2

Design

Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone
SafetyCB, BSMI, ETL

Sustainability

Sustainability certificatesENERGY STAR

Software

Compatible operating systemsWindows 8 / 8.1, Windows 7, Linux
Operating system installedNo

Certificates

CertificationRoHS, FCC, CE, BSMI, C-Tick

Power

Power supply typeAC/DC
Number of power supply units1
Power supply90 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width200 mm
Depth240 mm
Height72 mm
Weight2.2 kg
Package weight3.5 kg

Other features

Number of processors installed0
DC input voltage19 V
Number of SATA connectors3
Power LEDYes
Power requirements100 - 240V
