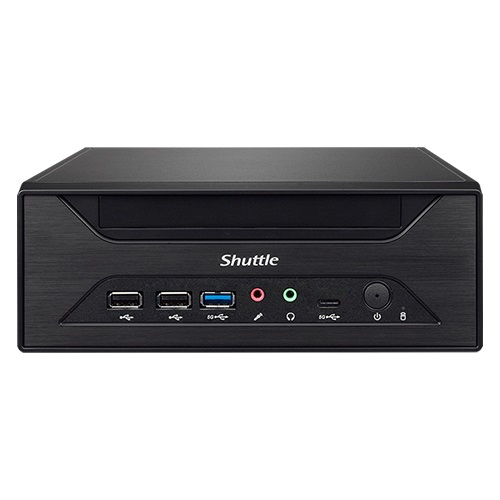

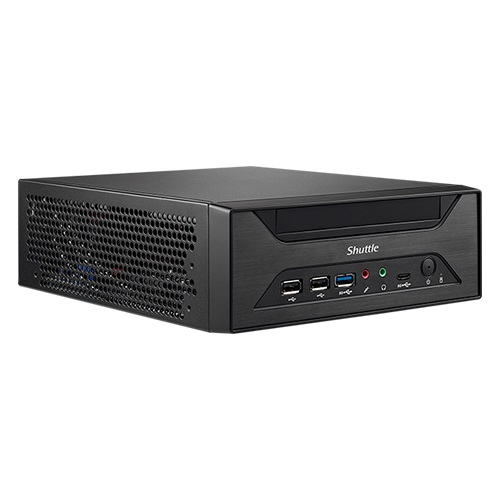

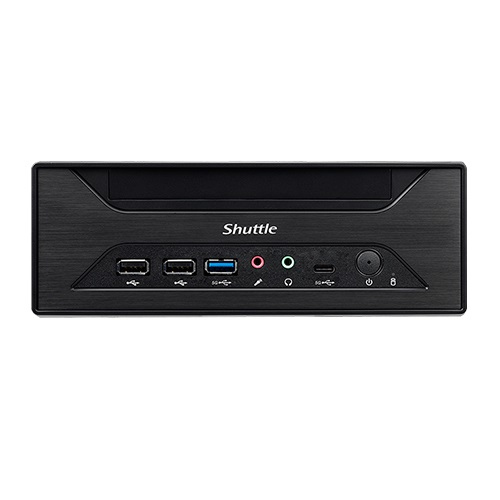

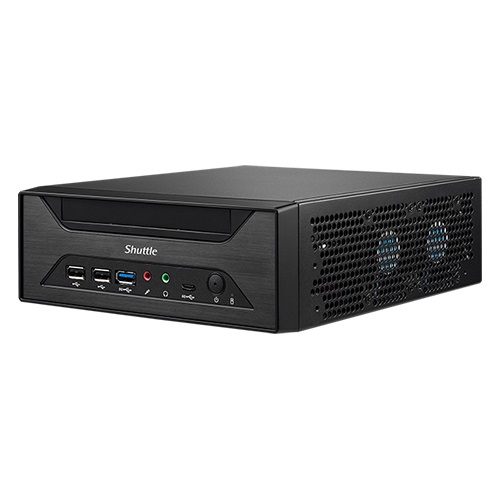

Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and
Shuttle

XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and

1G), 1x slim5.25", 2x 3.5", 2x M.2, 24/7 permanent o

Model XH610EAN 887993005171

70 specifications
  • TypePC barebone
  • OSNo
  • Weight2.2 kg
  • ColourBlack
  • Memory slots typeSO-DIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
PC barebone
OS
No
Weight
2.2 kg
Colour
Black
Memory slots type
SO-DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
XH610
Part number
XH610
EAN / UPC
887993005171
Also known as
Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25", 2x 3.5", 2x M.2, 24/7 permanent o

Specifications

70 specifications in 19 groups

Processor

Built-in processorNo

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2133,2400,2666,2933,3200 MHz
Supported memory typesDDR4-SDRAM
ECCNo
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
Storage drive interfaceM.2, PCI Express, Serial ATA III
NVMeYes

Graphics

On-board graphics cardYes
Graphics card familyIntel

Performance

Motherboard chipsetIntel H610
Processor socketLGA 1700
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
BIOS typeAMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo

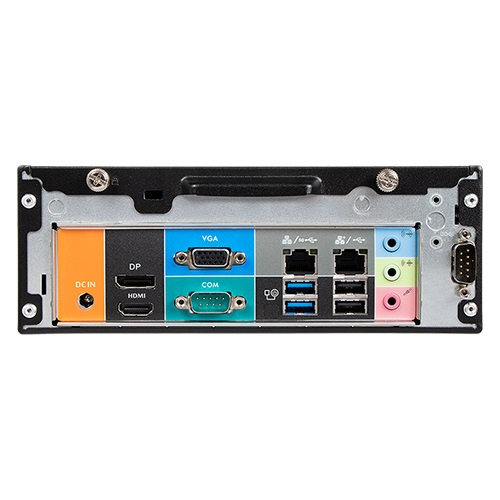

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
DisplayPort version1.4a
Microphone inYes
Headphone outputs1
COM ports quantity2
Ethernet LAN (RJ-45) ports2
DC-in jackYes

Expansion slots

Number of M.2 (M) slots1

Design

Chassis type3.5L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone

Sustainability

Sustainability certificatesENERGY STAR, ErP

Technical details

Compliance certificatesRoHS

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84733080

Power

Power supply typeExternal AC adapter
AC adapter output current6.32 A
AC adapter output voltage19 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply120 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width200 mm
Depth238 mm
Height72 mm
Weight2.2 kg
Package weight3.5 kg

Packaging content

Quick start guideYes
Drivers includedYes

Other features

Country of originChina
